Chapter 8, Signaling Decoder Screen
Tone Sequence Decoder
Tone Sequence Decoder
The Tone Sequence Decoder analyzes sequential tone signals and displays the
associated parameters.

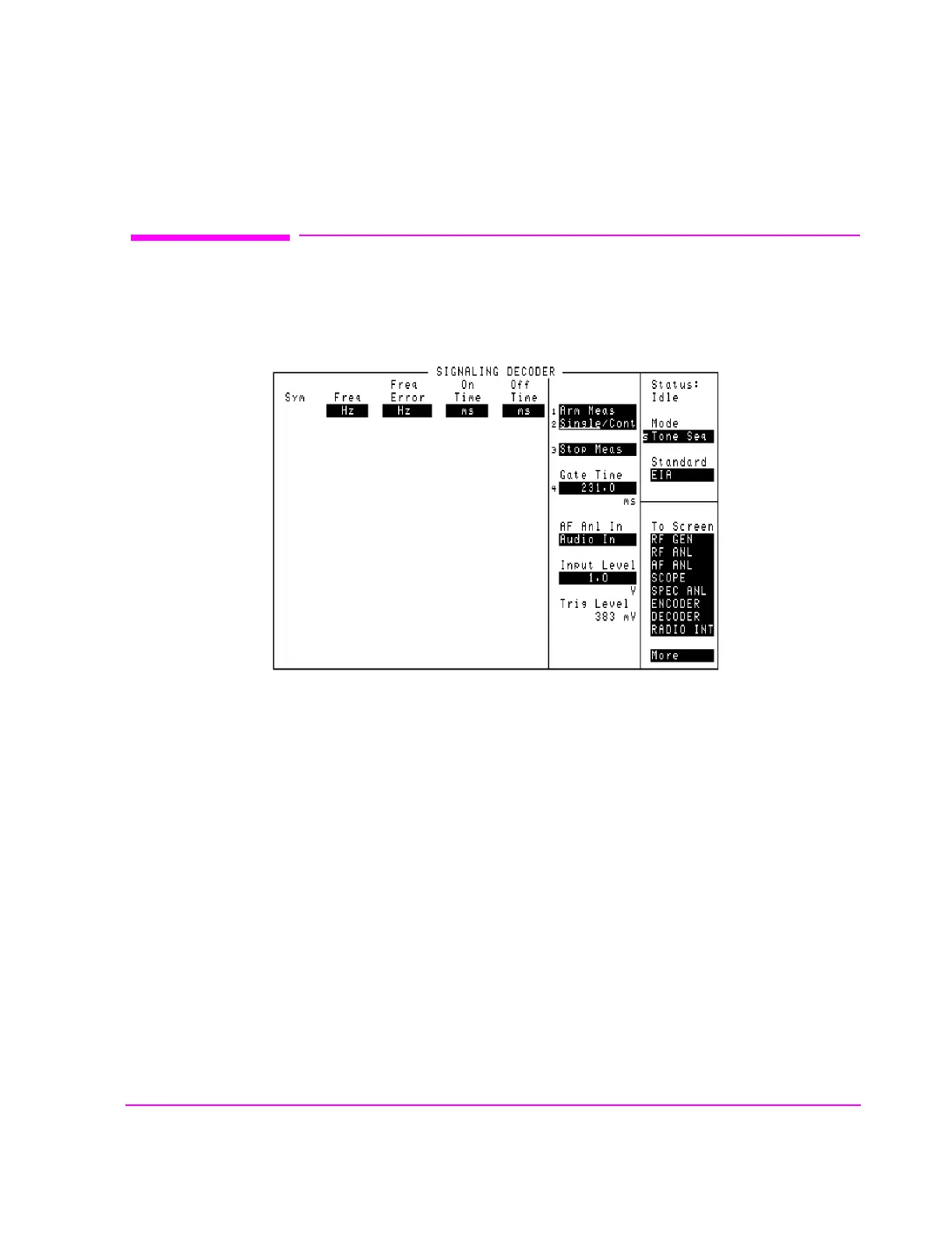

Figure 82 The Tone Sequence Decoder Screen
AF Anl In
Audio frequency analyzer input selects the source of the signal to be analyzed.
Operating Considerations
This is a priority control field. Accessing the RX TEST or TX TEST screen
overrides any changes made to this field in this screen.
Arm Meas
Arm measurement prepares the decoder to be triggered by an incoming signal
when
Single is selected.
