Chapter 8, Signaling Decoder Screen
Dual-Tone Multi-Frequency (DTMF) Decoder
Dual-Tone Multi-Frequency (DTMF) Decoder
The DTMF Sequence Decoder analyzes Dual-Tone Multi-Frequency tone
sequences and displays the associated parameters.

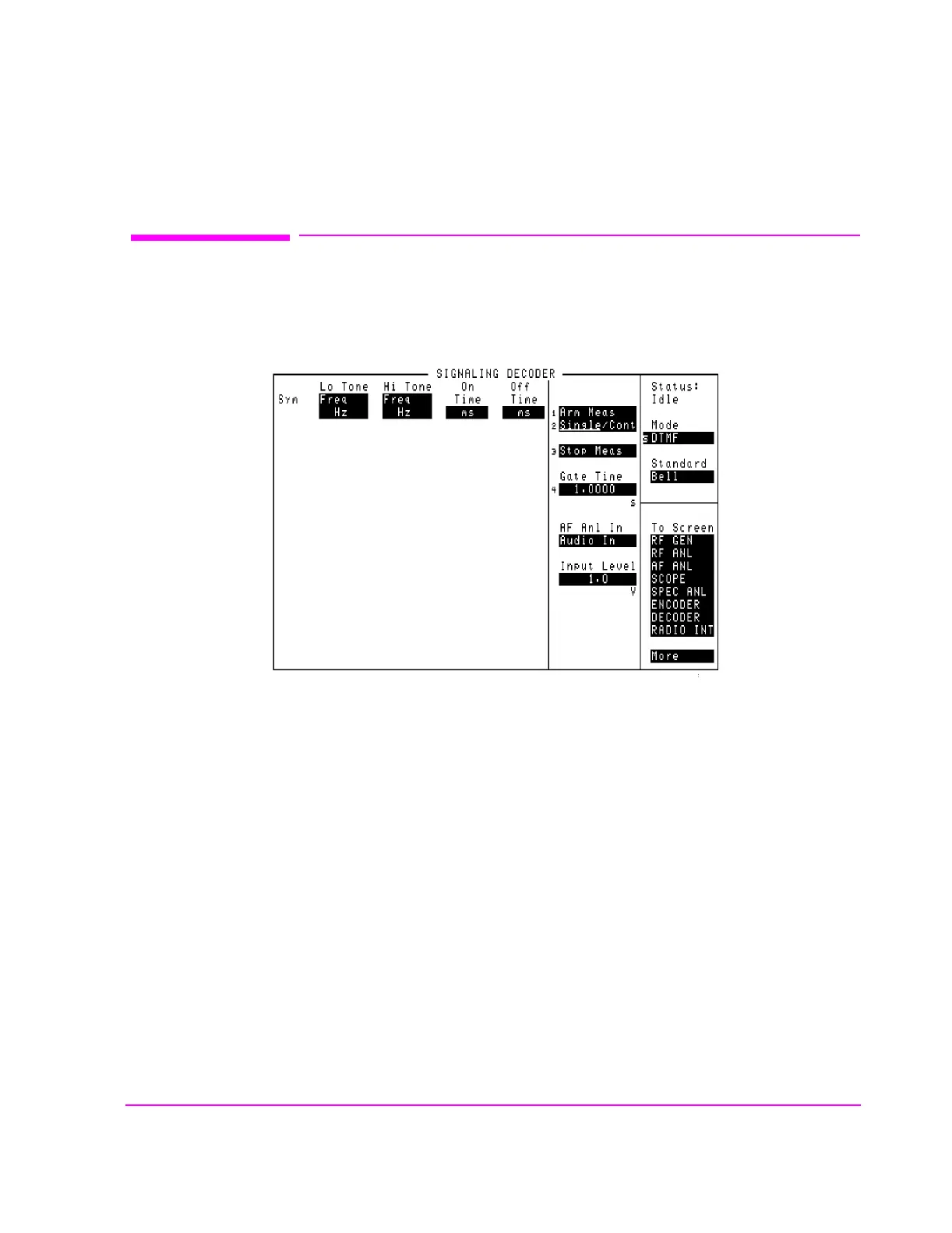

Figure 76 The DTMF Decoder Screen
AF Anl In
Audio frequency analyzer input selects the source of the signal to be analyzed.
Operating Considerations
This is a priority control field. Accessing the RX TEST or TX TEST screen
overrides any changes made to this field in this screen.
Arm Meas
Arm measurement prepares the decoder to be triggered by an incoming signal
when making single measurements.
