HP 8920A - Function Generator Decoder; The Function Generator Decoder Screen

301
Chapter 8, Signaling Decoder Screen
Function Generator Decoder
Function Generator Decoder

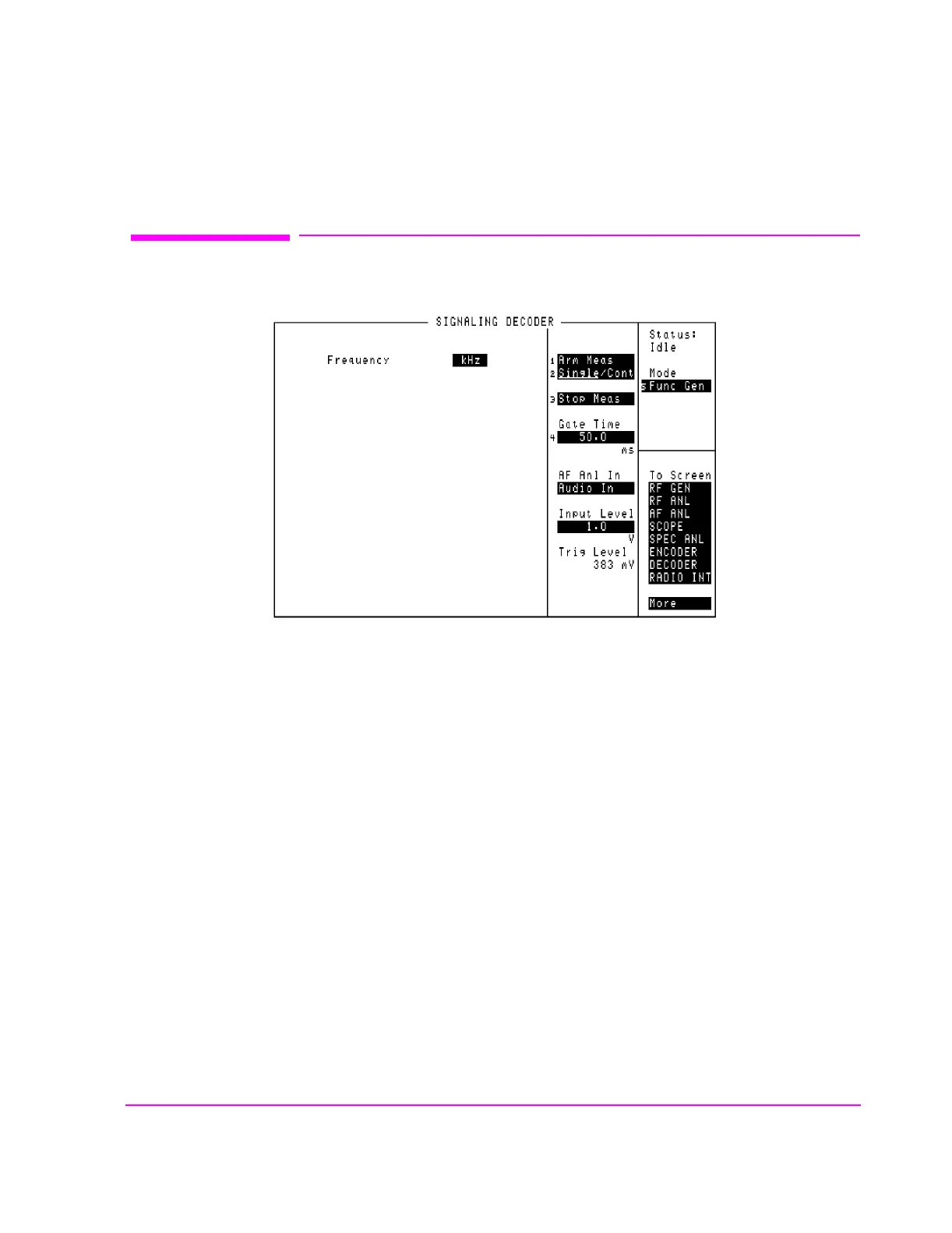

Figure 78 The Function Generator Decoder Screen
AF Anl In
Audio frequency analyzer input selects the source of the signal to be analyzed.
Operating Considerations
This is a priority control field. Accessing the RX TEST or TX TEST screen
overrides any changes made to this field in this screen.
See Also
"Interaction Between Screens" on page 54
func-dec.wmf
