Chapter 8, Signaling Decoder Screen
Digital Paging Decoder
Digital Paging Decoder
The is used to test paging system transmitters using various formats, such as
POCSAG and GSC (Golay Sequential Code). The
Tune Freq field of the TX
TEST screen is typically used to tune to the pager channel to be decoded.

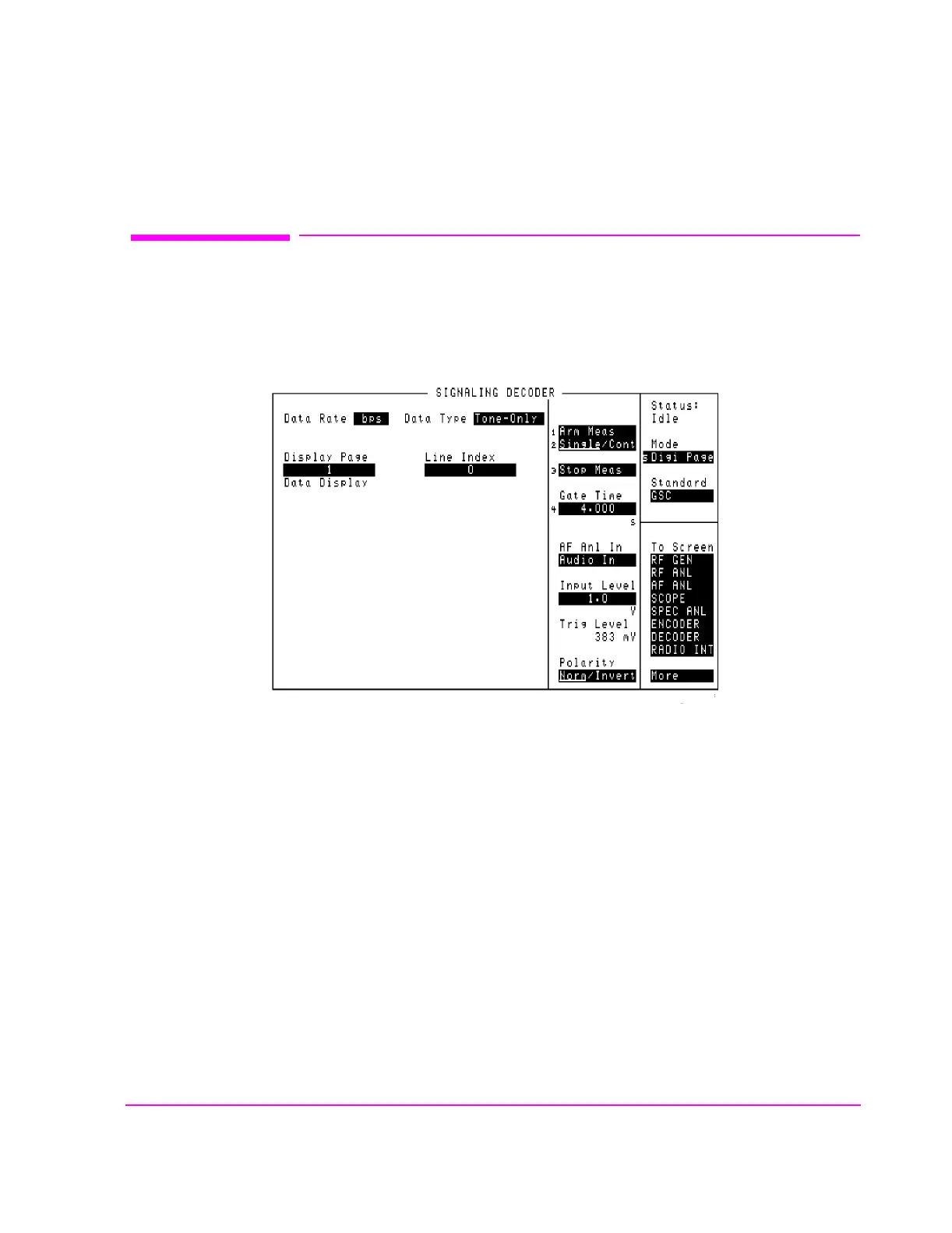

Figure 75 The Digital Paging Decoder Screen
AF Anl In
Audio frequency analyzer input selects the source of the signal to be analyzed.
This is typically set to
FM Demod for off-the air decoding of pager transmitters.
Arm Meas
Arm measurement prepares the decoder to be triggered by an incoming signal.
digi-de1.wmf
