HP 8920A - NHO MES Message Fields

236
S:\HP892XX\USRGUIDE\manual\callscrn.fb
Chapter 6, Call Processing Subsystem
CALL BIT Screen Message Field Descriptions
C13
Channel number bit 13 set - 10 kHz above channel number in CHAN Field.
C12
Channel number bit 12 set - 10 kHz below channel number in CHAN Field.
VMAC
This field displays the voice mobile attenuation code. It shows the mobile station
power level associated with the designated voice channel.
CHAN
Channel number field. Indicates the designated RF channel.
Parity
Parity field. The contents of the Parity field cannot be set by the user. The Test Set
calculates the parity bits.
NHO MES Message Fields

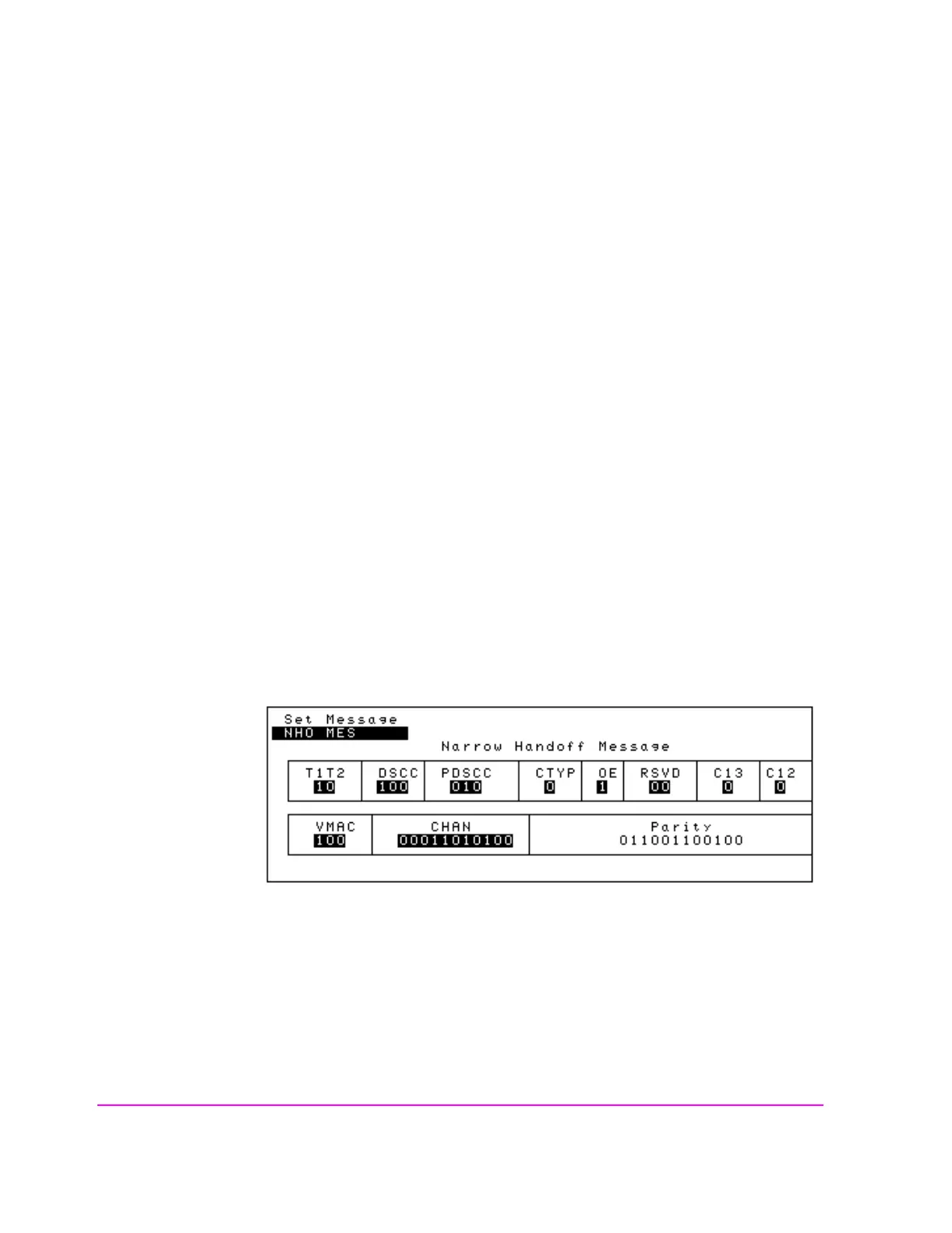

Figure 64 NHO MES Message Fields
T1T2
This field identifies the received message as an order confirmation, an order, or a
called address message.
