Chapter 10, Signaling Encoder (AF Generator 2)
Using the CDCSS Encoder
Using the CDCSS Encoder
The CDCSS Data Stream

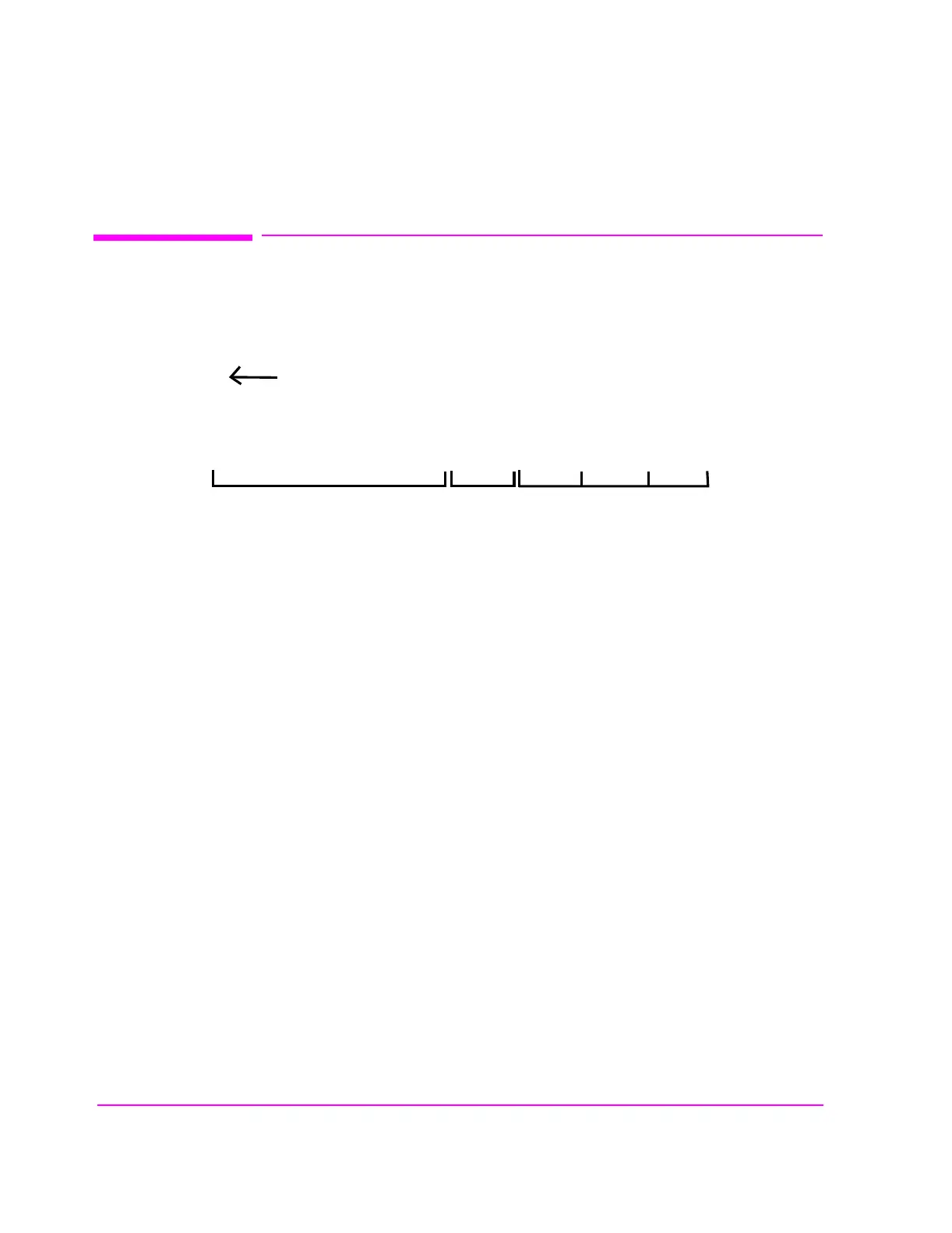

Figure 93 CDCSS Data Stream Bit Assignments
The CDCSS encoder creates a 23-bit digital data stream and Turn Off Code
(TOC). The data stream consists of three parts:
• A 3-digit (9 bit) octal code you supply that corresponds to your radios digital squelch
code number.
• A fixed octal 4 (coded 100).
• A mathematically-derived 11-bit error detection code.
The data stream is output serially, beginning with the error detection code.
The Turn-Off Code
The turn-off code is a tone burst that is output after the data stream has been
output the desired number of times, or after a series of bursts has been interrupted
using the
Stop field.

'DWDLV6KLIWHG2XW7KLV'LUHF WLRQ
(UURU'HWHFWLRQ&RGH
&RPS XWHGE\+ 3$
)L[HG
2FWDO (QW HU
'LJLW&RGH<RX
