Chapter 6, Call Processing Subsystem
CALL CONFIGURE Screen
CALL CONFIGURE Screen

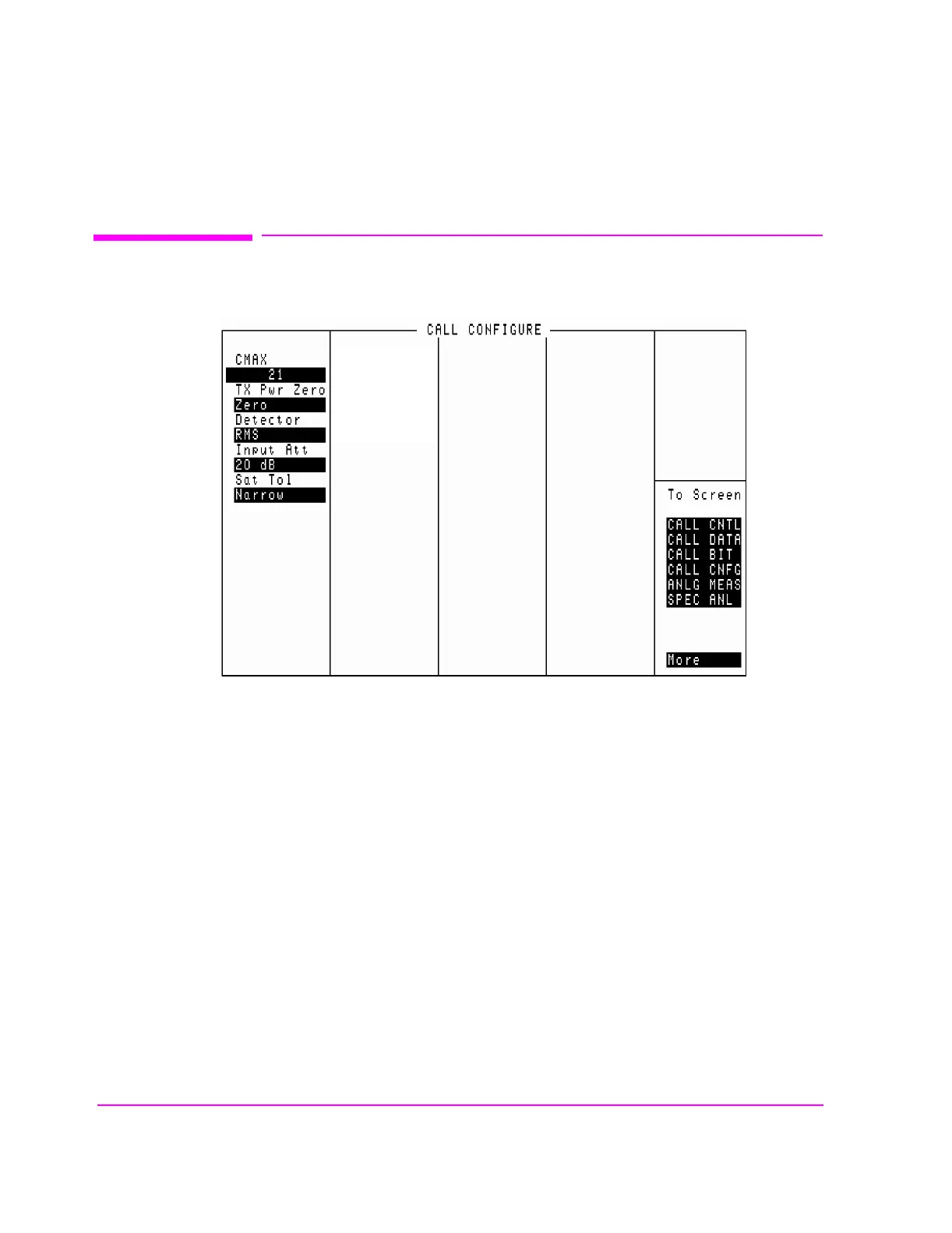

Figure 66 The CALL CONFIGURE Screen
The number of fields displayed on the CALL CONFIGURE screen depends on the
selected system type.
This screen is used to set some of the less commonly used Test Set configuration
parameters.
When the CALL CONFIGURE screen is displayed and the Call Processing
Subsystem is in the connect state, the Test Set constantly monitors the mobile
station’s transmitted carrier power. If the power falls below 0.0005Watts, the
error message
RF Power Loss indicates loss of Voice Channel will
be displayed and the Test Set will terminate the call and return to the active state.
