CALL BIT Screen Message Field Descriptions

MST

Message Type. Extended Protocol Message Type.

Parity

Parity field. The contents of the Parity field cannot be set by the user. The Test Set

calculates the parity bits.

NCH ASN Message Fields

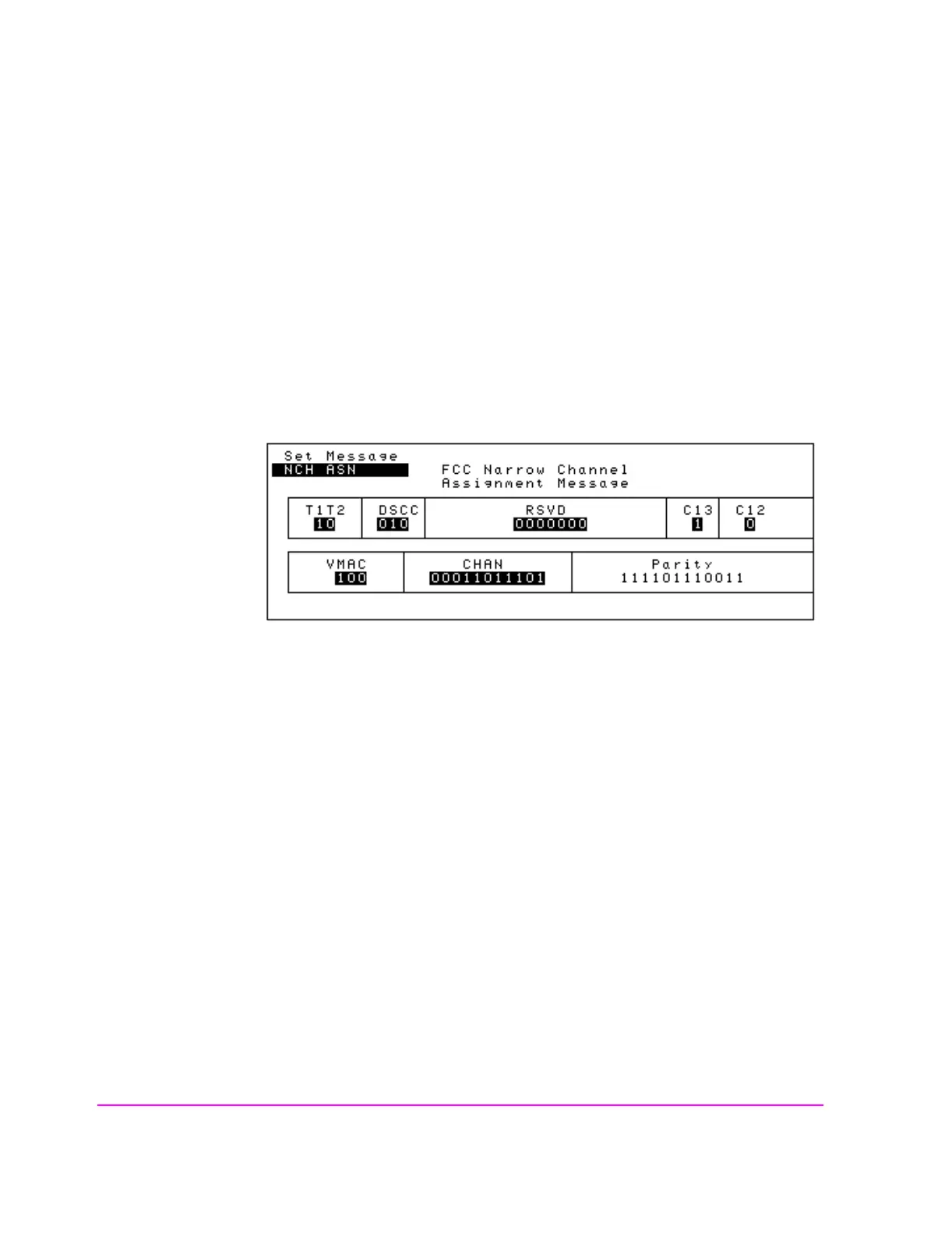

Figure 61 NCH ASN Message Fields

T1T2

This field identifies the received message as an order confirmation, an order, or a

called address message.

DSCC

DSAT color code for the new channel. Also represents SCC for handoff to a wide

analog channel.

RSVD

Reserved for future use.

C13

Channel number bit 13 set - 10 kHz above channel number in CHAN Field.
