HP 8920A - FVC SSD1 Message Fields

To Next Page

To Previous Page

226

S:\HP892XX\USRGUIDE\manual\callscrn.fb

Chapter 6, Call Processing Subsystem

CALL BIT Screen Message Field Descriptions

FVC SSD1 Message Fields

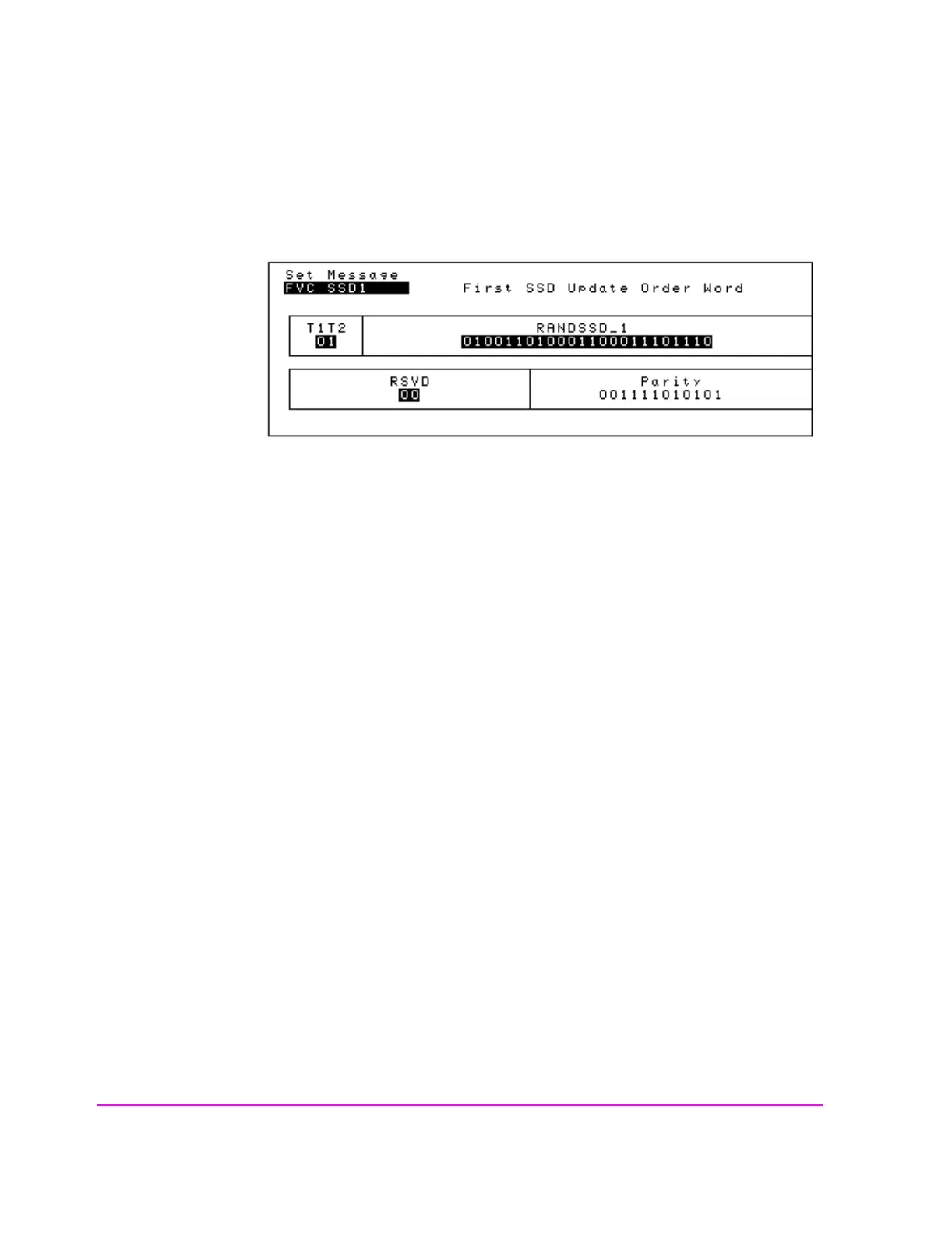

Figure 55 FVC SSD1 Message Fields

T1T2

This field identifies the received message as an order confirmation, an order, or a

called address message.

RANDSSD_1

The most significant 24-bits of the random number issued by the base station in

the SSD Update Order.

RSVD

Reserved for future use.

Parity

Parity field. The contents of the Parity field cannot be set by the user. The Test Set

calculates the parity bits.
