Chapter 8, Signaling Decoder Screen
Continuous Digital Controlled Squelch System Decoder
Continuous Digital Controlled Squelch System Decoder
The Continuous Digital Controlled Squelch System (CDCSS) Decoder analyzes
digital data streams used to turn squelch on and off on digitally-controlled-squelch
radios.

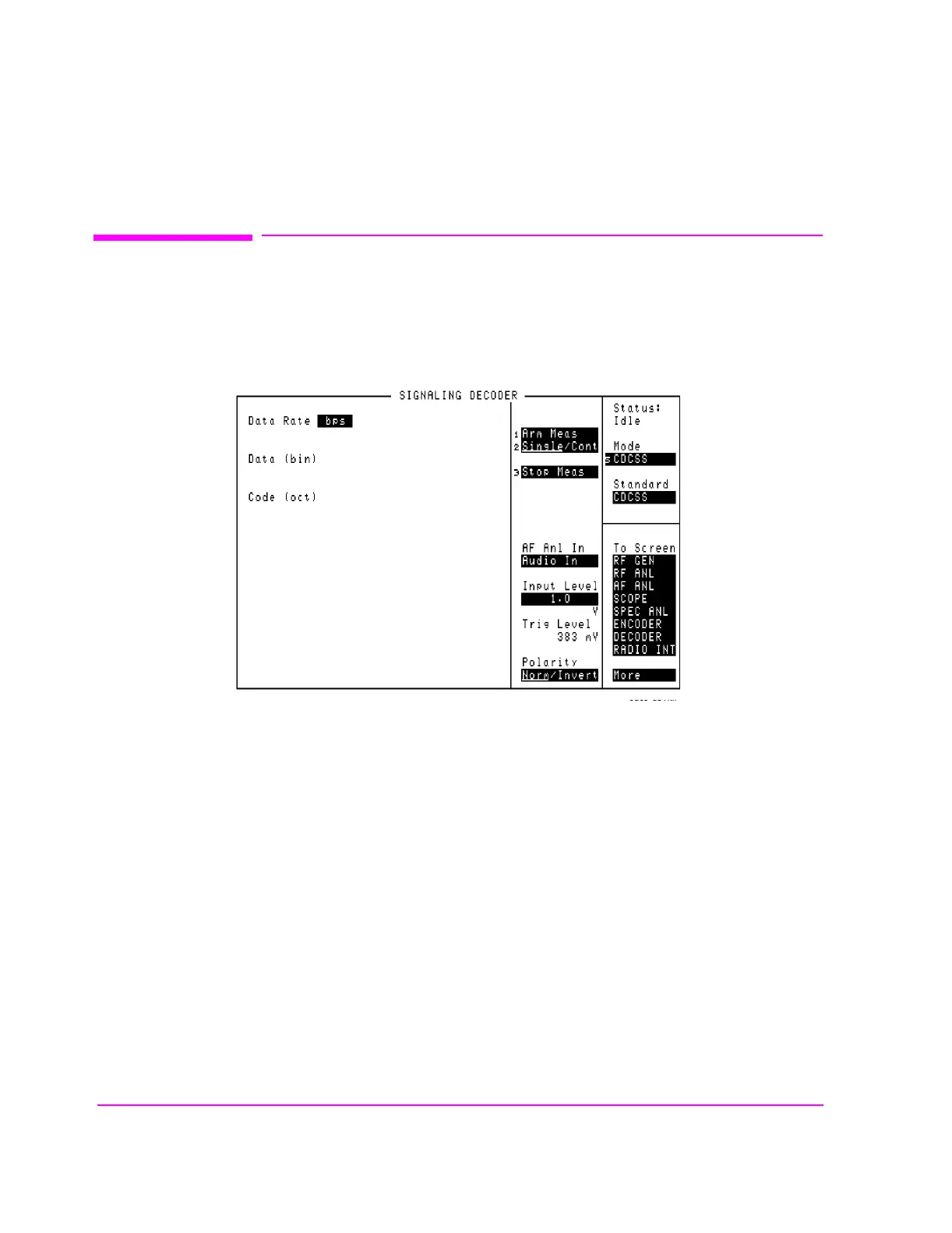

Figure 74 The CDCSS Sequence Decoder Screen
AF Anl In
Audio frequency analyzer input selects the source of the signal to be analyzed.
See Also
"Interaction Between Screens" on page 54
