Chapter 8, Signaling Decoder Screen
Using the AMPS/TACS, NAMPS/NTACS Decoder
Using the AMPS/TACS, NAMPS/NTACS Decoder
Interaction With the Encoder
The encoder screen’s Data Rate field tells the decoder how fast the incoming
message is being sent. Set that field’s value before using the AMPS-TACS or
NAMPS-NTACS Decoder.

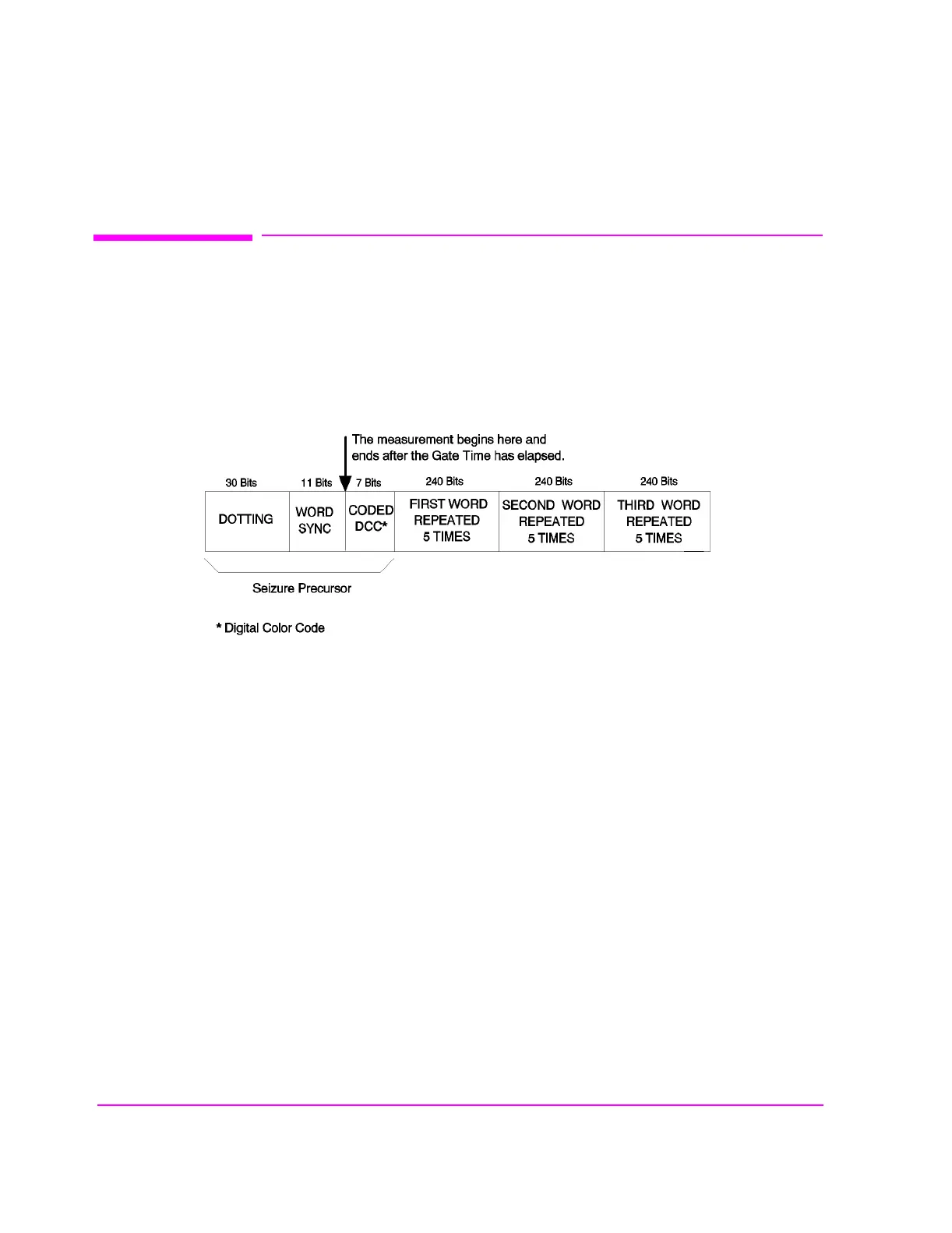

Figure 71 Decoding the Reverse Control Channel (RECC) Data
