HP 8920A - AMPS-TACS Mode Forward Voice Channel (FVC); NAMPS-NTACS Mode Forward Voice Channel (FVC)

356
S:\HP892XX\USRGUIDE\manual\encoscrn.fb
Chapter 10, Signaling Encoder (AF Generator 2)
AMPS-TACS NAMPS-NTACS Encoder

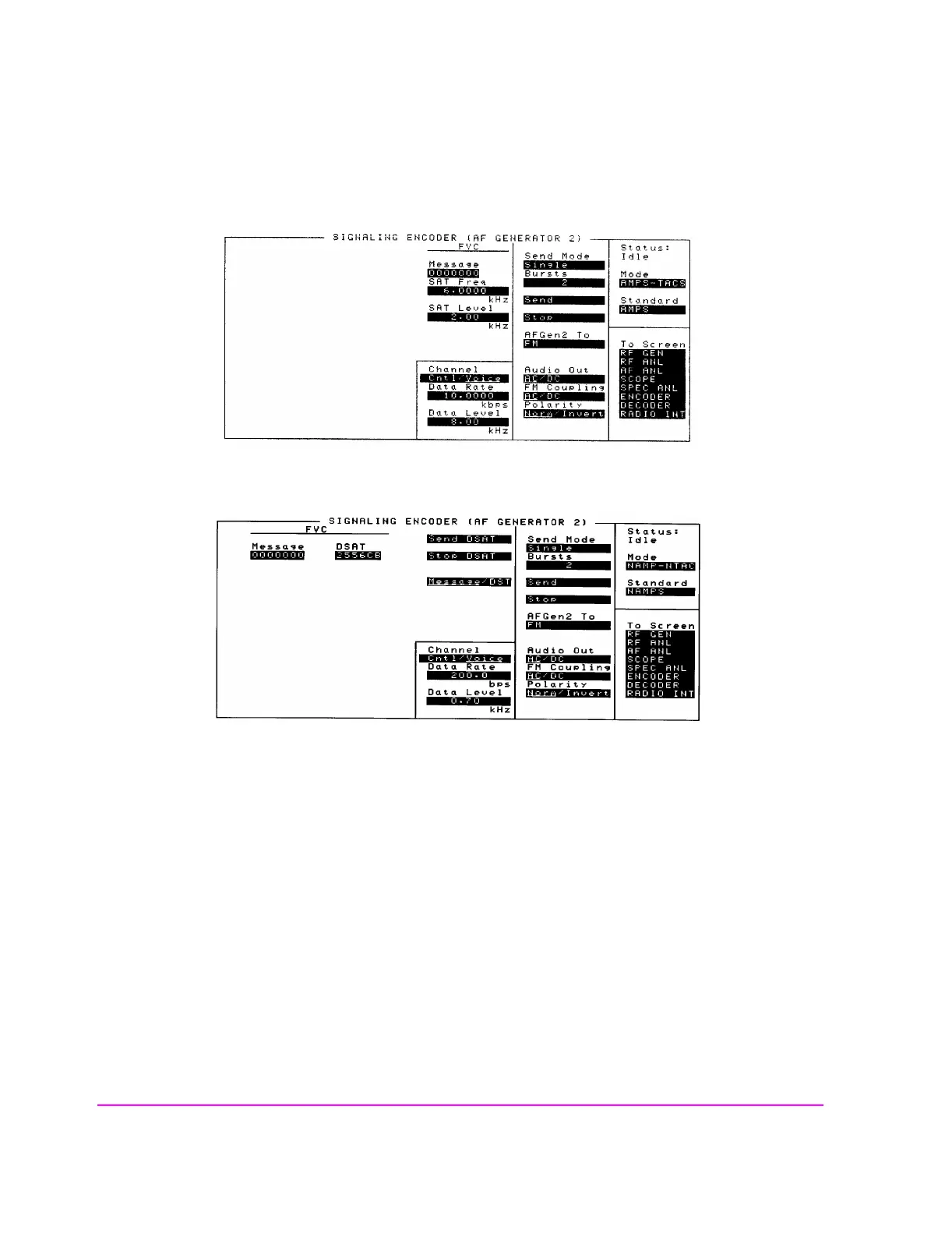

Figure 86 AMPS-TACS Mode Forward Voice Channel (FVC)
Figure 87 NAMPS-NTACS Mode Forward Voice Channel (FVC)
AFGen2 To
This field determines whether the data stream modulates the RF Generator, or is
output through the AUDIO OUT connector.
Audio Out
Audio output coupling selects ac or dc coupling of the AF Generator to the
AUDIO OUT connector when
AFGen2 To is set to Audio Out.
amps-en3.wmf
nmps-en1.wmf
