Chapter 6, Call Processing Subsystem

CALL BIT Screen Message Field Descriptions

FVC SSD3 Message Fields

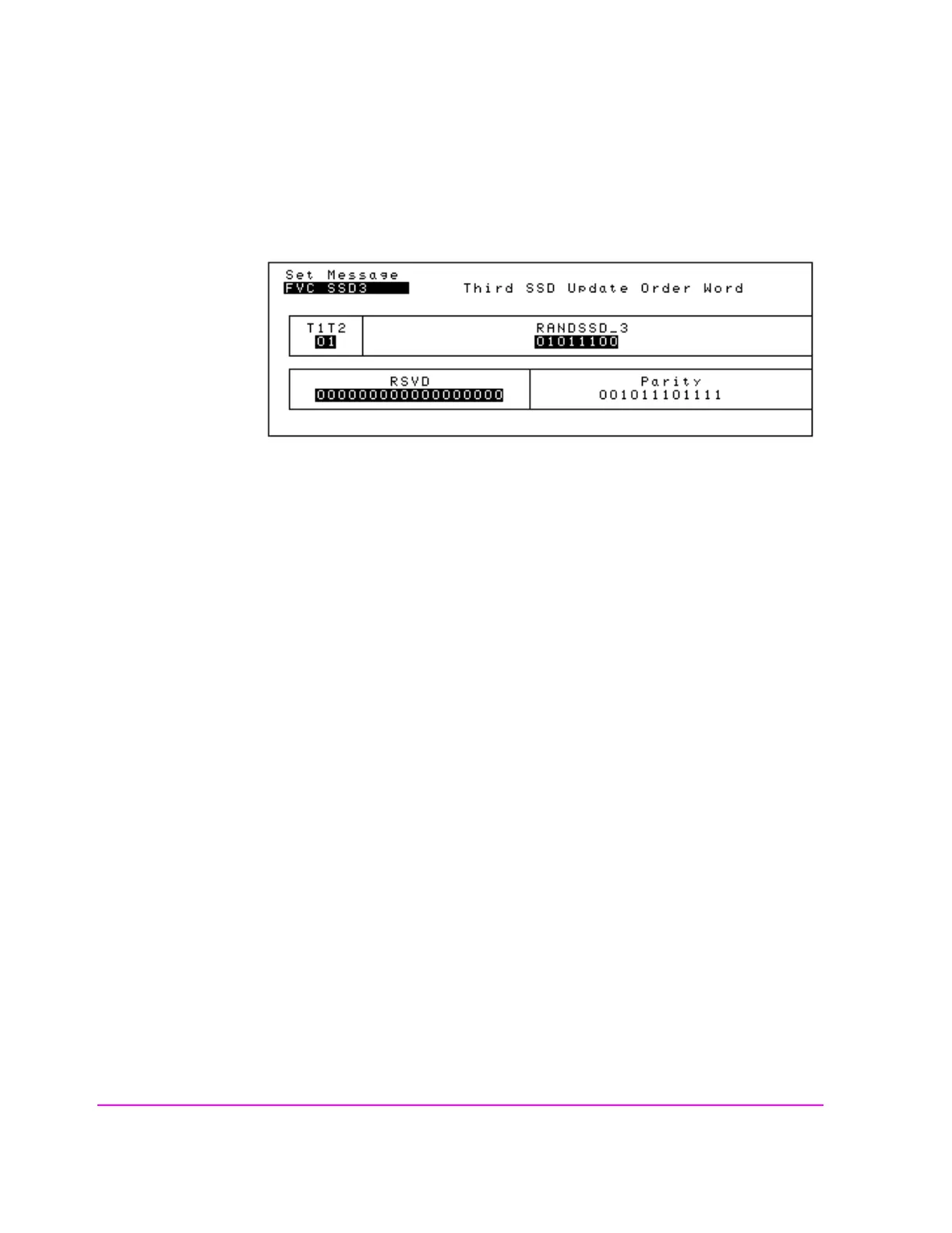

Figure 57 FVC SSD3 Message Fields

T1T2

This field identifies the received message as an order confirmation, an order, or a

called address message.

RANDSSD_3

The least significant 8-bits of the random number issued by the base station in the

SSD Update Order.

RSVD

Reserved for future use.

Parity

Parity field. The contents of the Parity field cannot be set by the user. The Test Set

calculates the parity bits.
