Chapter 18, RF Generator Screen
Field Descriptions
Field Descriptions

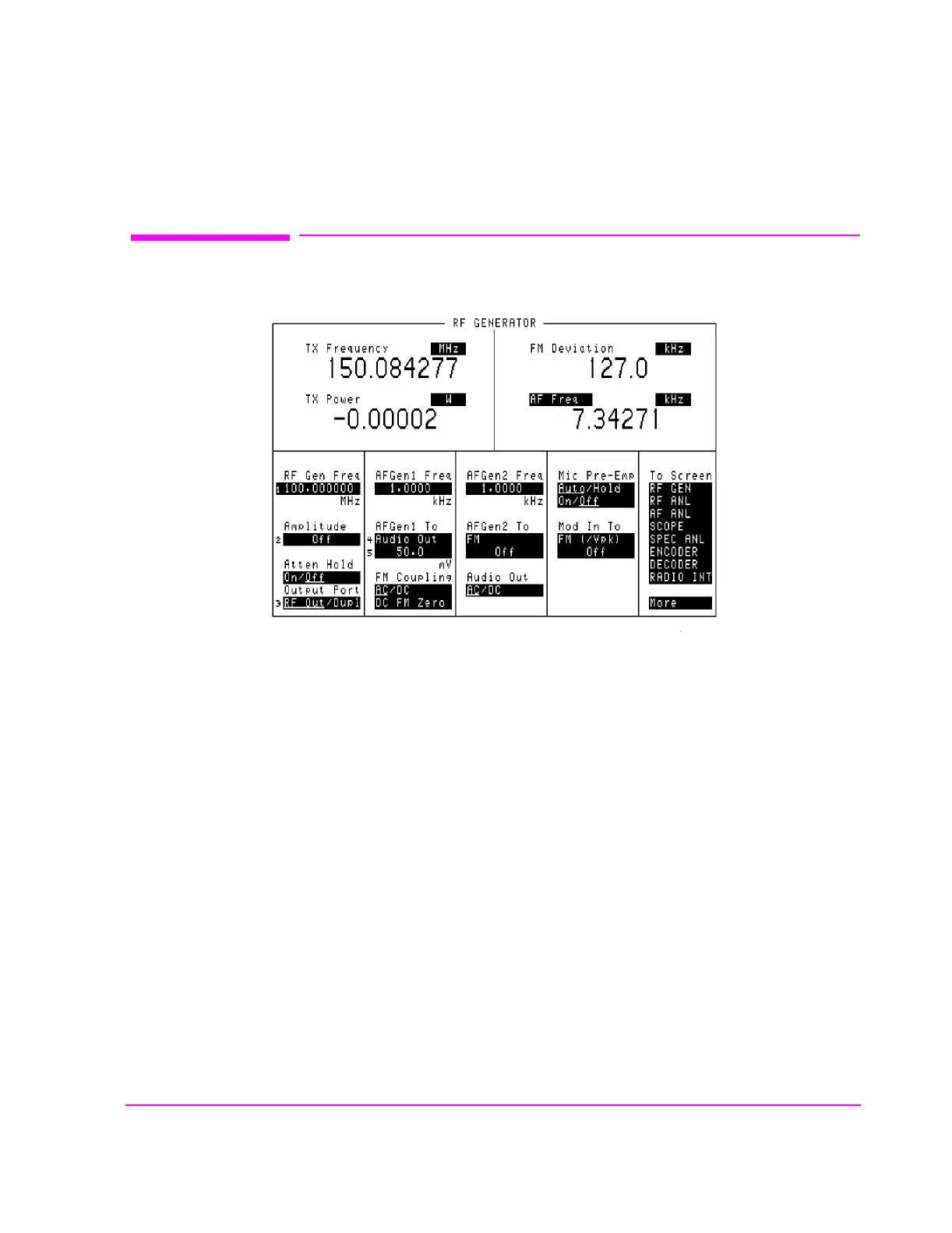

Figure 123 The RF Generator Screen
AC Level
This measurement displays either rms potential (voltage) or audio power (Watts
or dBm).
Operating Considerations
When the unit-of-measure is changed to measure AF power, the external load
resistance must be specified. (Refer to the
Ext Load R field description, on page
498
.)
The input for the ac level measurement on this screen is always the AUDIO IN
connectors.
See Also
"Entering and Changing Numbers" on page 63
