Chapter 6, Call Processing Subsystem
CALL DATA Screen Message Field Descriptions
CALL DATA Screen Message Field Descriptions
This section describes the individual data fields contained in each of the decoded
reverse control channel and reverse voice channel messages.
RECCW A Message Fields

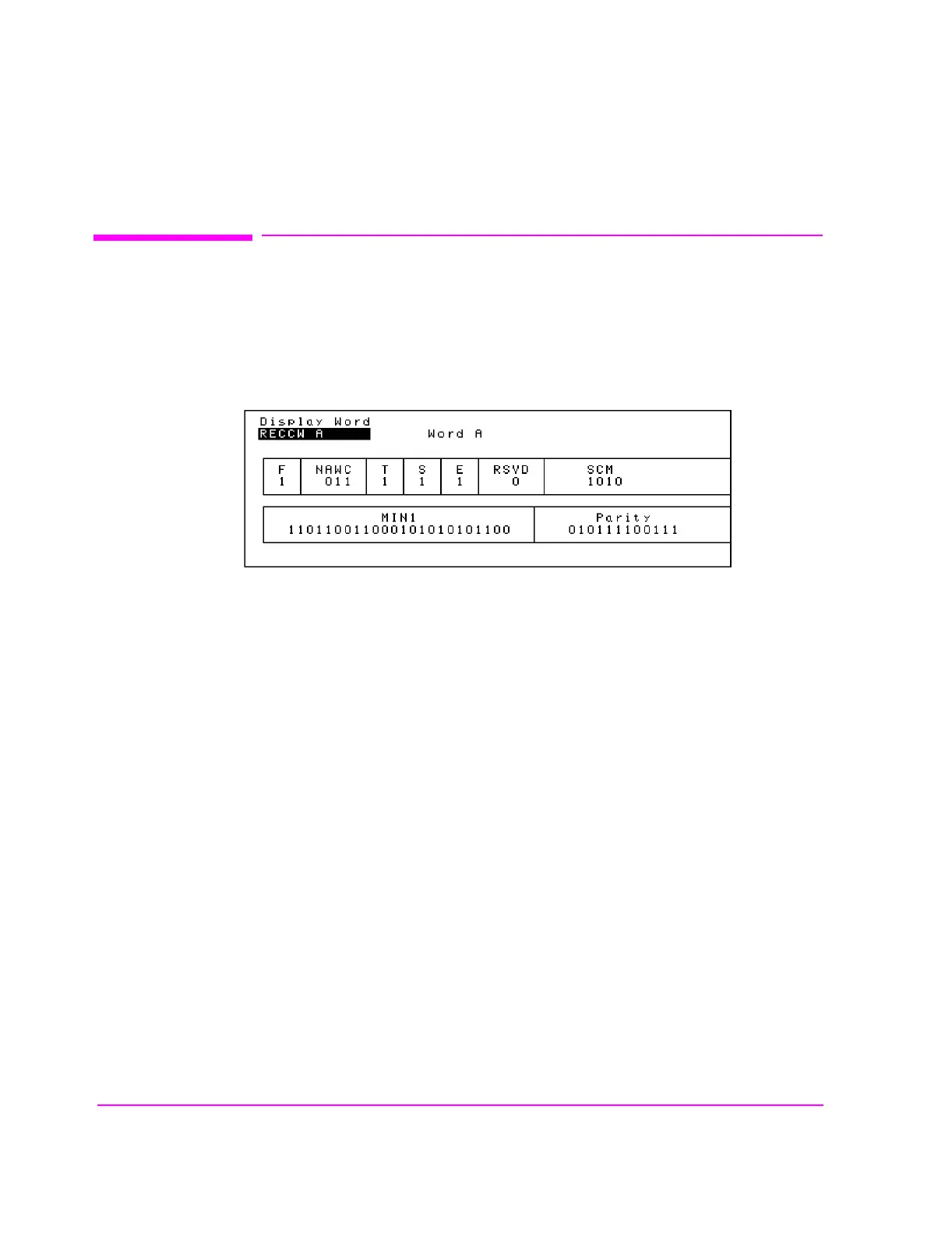

Figure 24 RECCW A Message Fields
F
This field displays the first word indication received from the mobile station.
• A ‘1’ indicates that this is the first word.
• A ‘0’ is displayed for all subsequent words.
NAWC
This field displays the number of additional words coming from the mobile
station.
T
This field displays the message type received from the mobile station.
• Set to ‘1’ to identify the message as an origination or an order.
• Set to ‘0’ to identify the message as an order response or page response.
