Chapter 6, Call Processing Subsystem
ANALOG MEAS Screen
ANALOG MEAS Screen

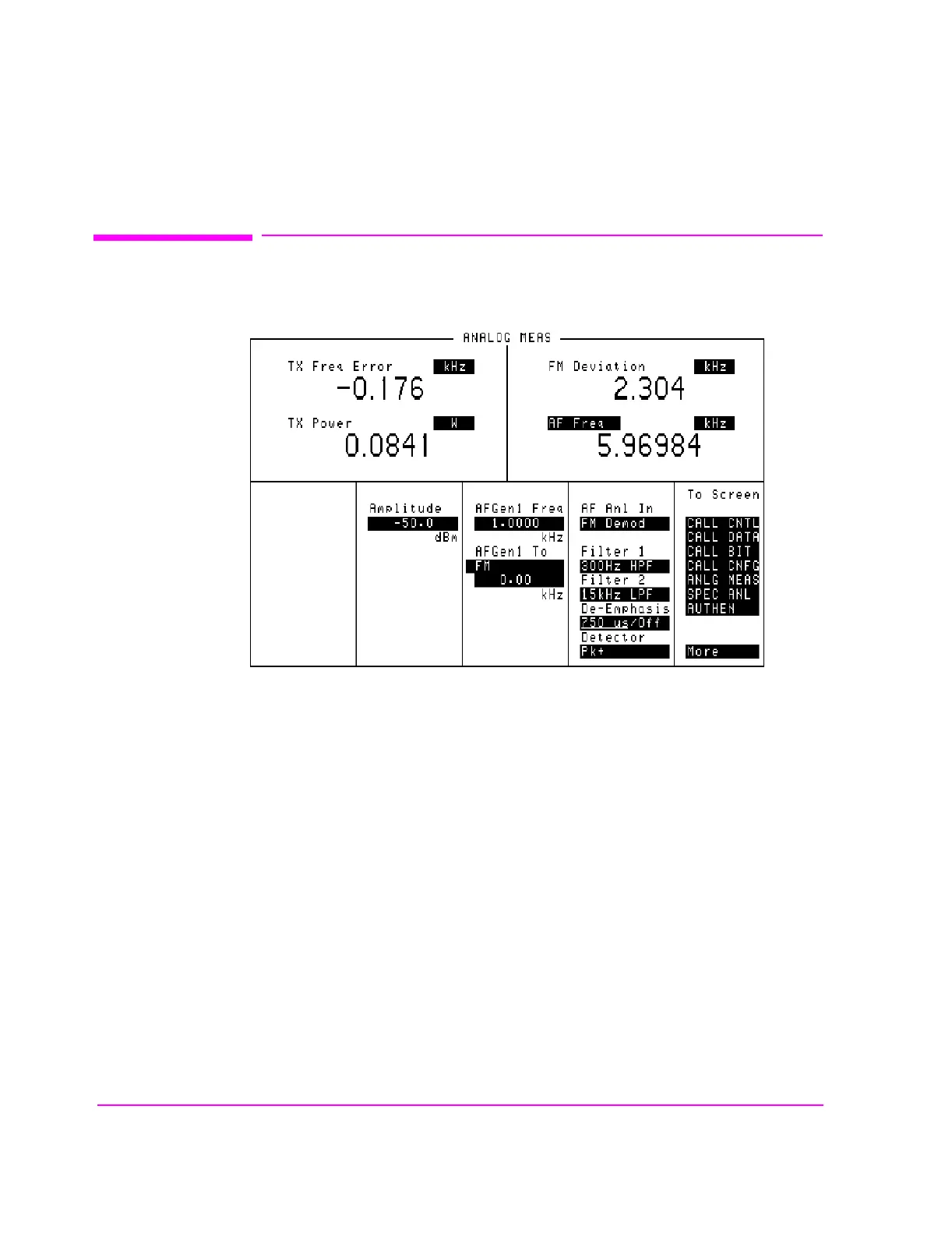

Figure 65 The ANALOG MEAS Screen
This screen is used to make RF and audio measurements on the mobile station
connected to the Test Set while on an active voice channel.
The Test Set does not monitor the mobile station’s transmitted carrier power while
the ANALOG MEAS screen is displayed. If the power falls below 0.0005 Watts
no error message is displayed nor will the Test Set terminate the call while on the
ANALOG MEAS screen.
AF Anl In
This field selects the input for the Audio Frequency analyzer. Refer to the AF Anl
In
field description, on page 101 for further information.
