HP 8920A - Inserting and Removing Memory Cards; Inserting a Memory Card

72
S:\HP892XX\USRGUIDE\manual\opoverv.fb
Chapter 3, Operating Overview
Using Memory Cards
Inserting and Removing Memory Cards
Figure 9 illustrates how to insert a memory card into the Test Set’s front panel. To
remove a memory card, simply pull it out.
The Test Set’s memory-card label is marked with an arrow that must be inserted
on the same side as the arrow shown on the front-panel slot.
Memory cards may be inserted and removed with the Test Set powered on or off.

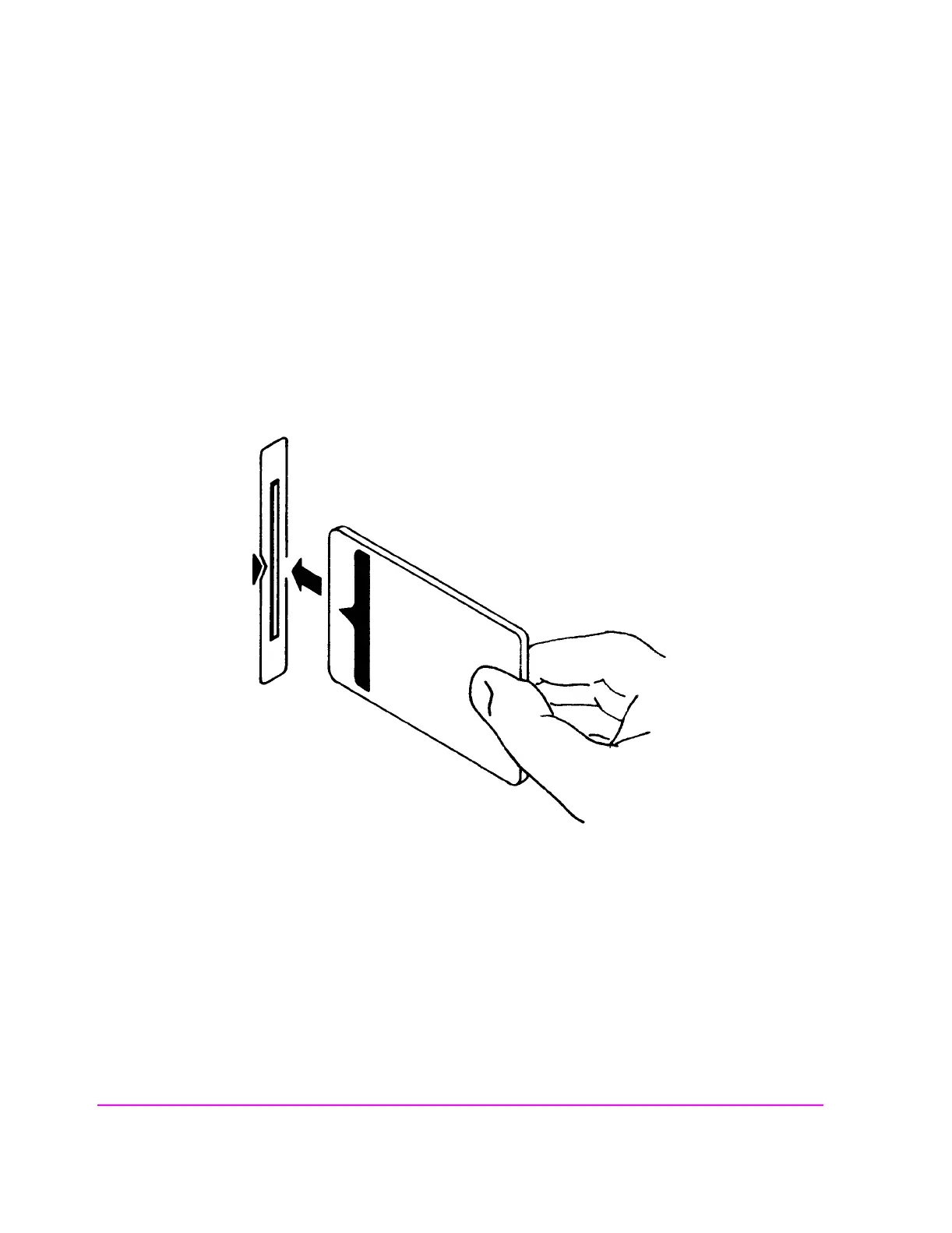

Figure 9 Inserting a Memory Card
