Inertial Labs INS-P User Manual

INS
GUI User’s Manual
Inertial Labs, Inc
TM
Address: 39959 Catoctin Ridge Street, Paeonian Springs, VA 20129 U.S.A.
Tel: +1 (703) 880-4222, Fax: +1 (703) 935-8377 Website: www.inertiallabs.com
114
For VG3D calibration the carrier object should be rotated in full azimuth
range with maximum possible pitch and roll ranges. Allowed object motion
should be agreed with Inertial Labs.

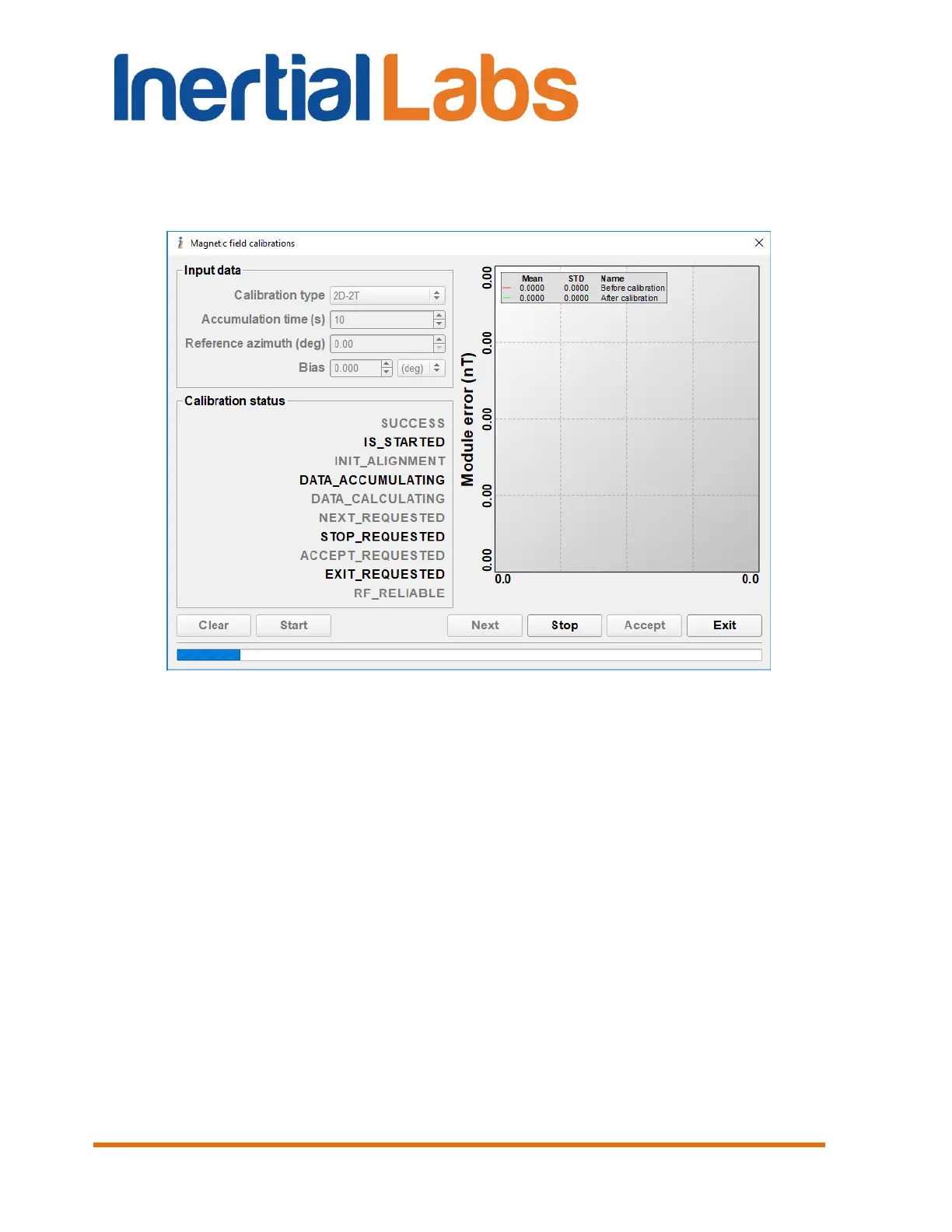

Fig. 10.9
After time of the data accumulation expires then result window will appear
(see Fig. 10.10).
Result window Fig. 10.10 includes the next information:
– success of the calibration;
– calibration error is predicted maximum (3 sigma) heading error of the
INS at accepting the calibration;
– used points is percent of accumulated data used at calculations.
Click “OK” to close information message.
