Depending on known target orientation (its relative or absolute azimuth and

pitch/elevation) select “Heading” or/and “Pitch” checkboxes (see Fig.

10.20).

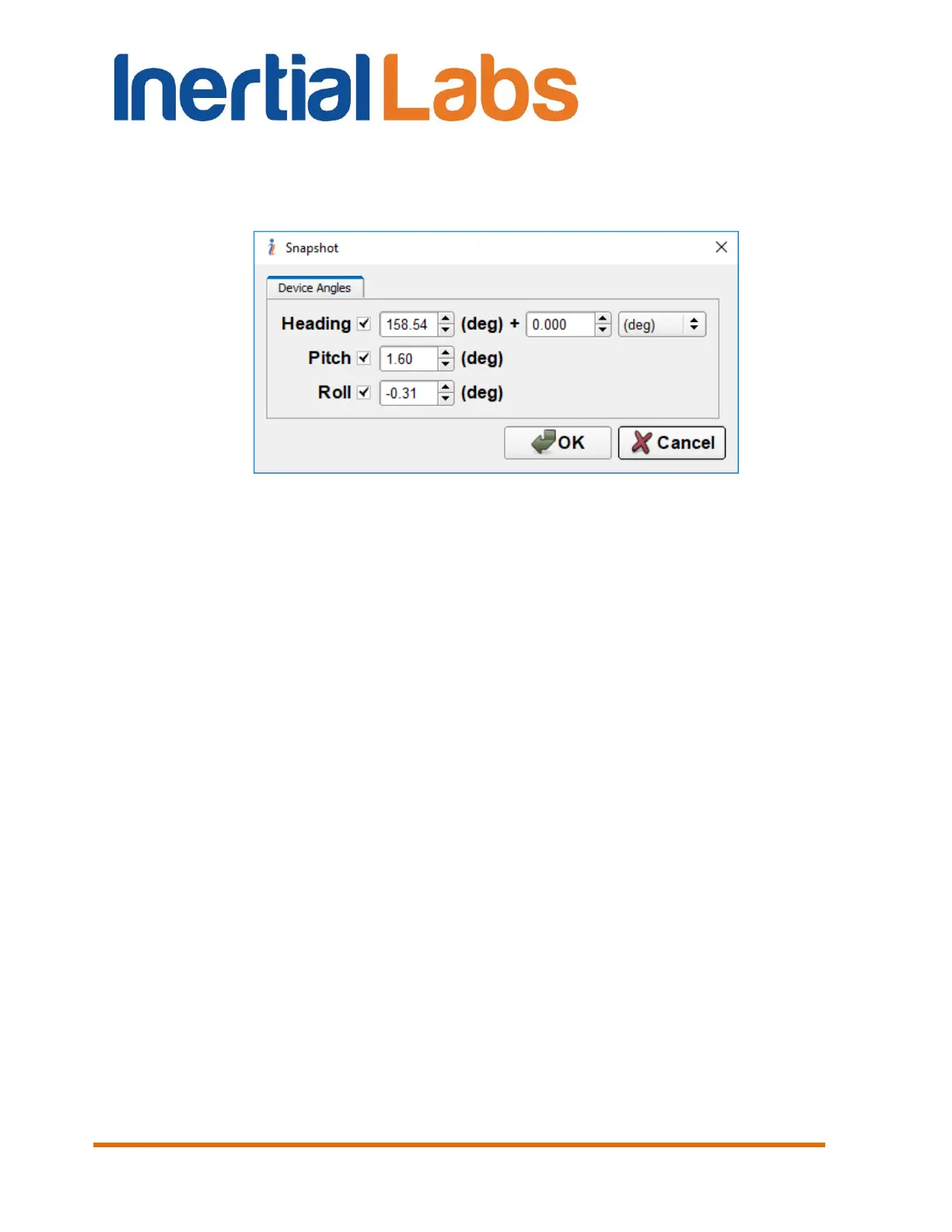

Fig. 10.20

Enter values according to true reference angles. This angles can be set

using arrows or by entering the necessary value from a keyboard.

If no checkboxes are checked then only current INS angles are saved.

Then press “OK” button. New tab “Snapshots” like shown in Fig. 10.21 will

open. Return to previous tab by clicking on its title “INS visualization”
