4. Baud rate must be set the same both for INS unit and in the INS GUI to allow this
software to control INS unit.
At the first, set correct COM port baud rate in the “Test Options” (see Fig.
4.1). It must be the same as it set in the INS unit. If COM port baud rate in

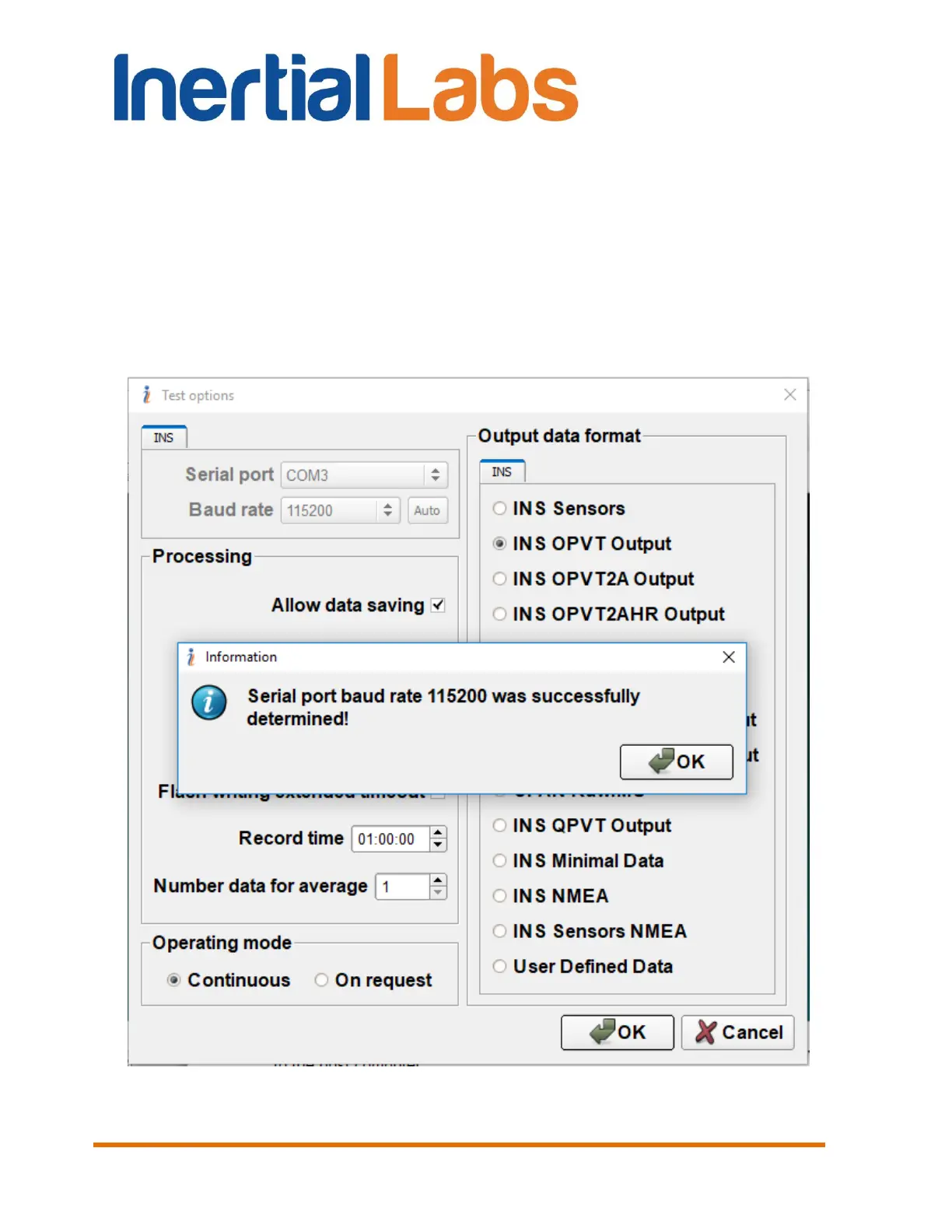

the INS unit is unknown then click “Auto” button. After several seconds
window with caption “Serial port baud rate XXXXXX was successfully
determined” will appear (see Fig. 4.18) and determined baud rate will appear
in the “Test Options” window.
Fig. 4.18
