Chapter 5: Console Operation
Labels
Eclipse User Guide 2.0 203/ 526
Labelling an Output (Destination)
To Label an output from the console surface:
1. Press SEL on the output Fader or Smart Panel strip to
select the channel.
Note that if the mix bus is patched to multiple outputs, then you
should keep pressing SEL until the output you wish to Label
appears on the Main Mix display.
2. Then press [F3] on the console keyboard.
A switch on the User Defined panel can also be assigned to this
function, see Page 322.

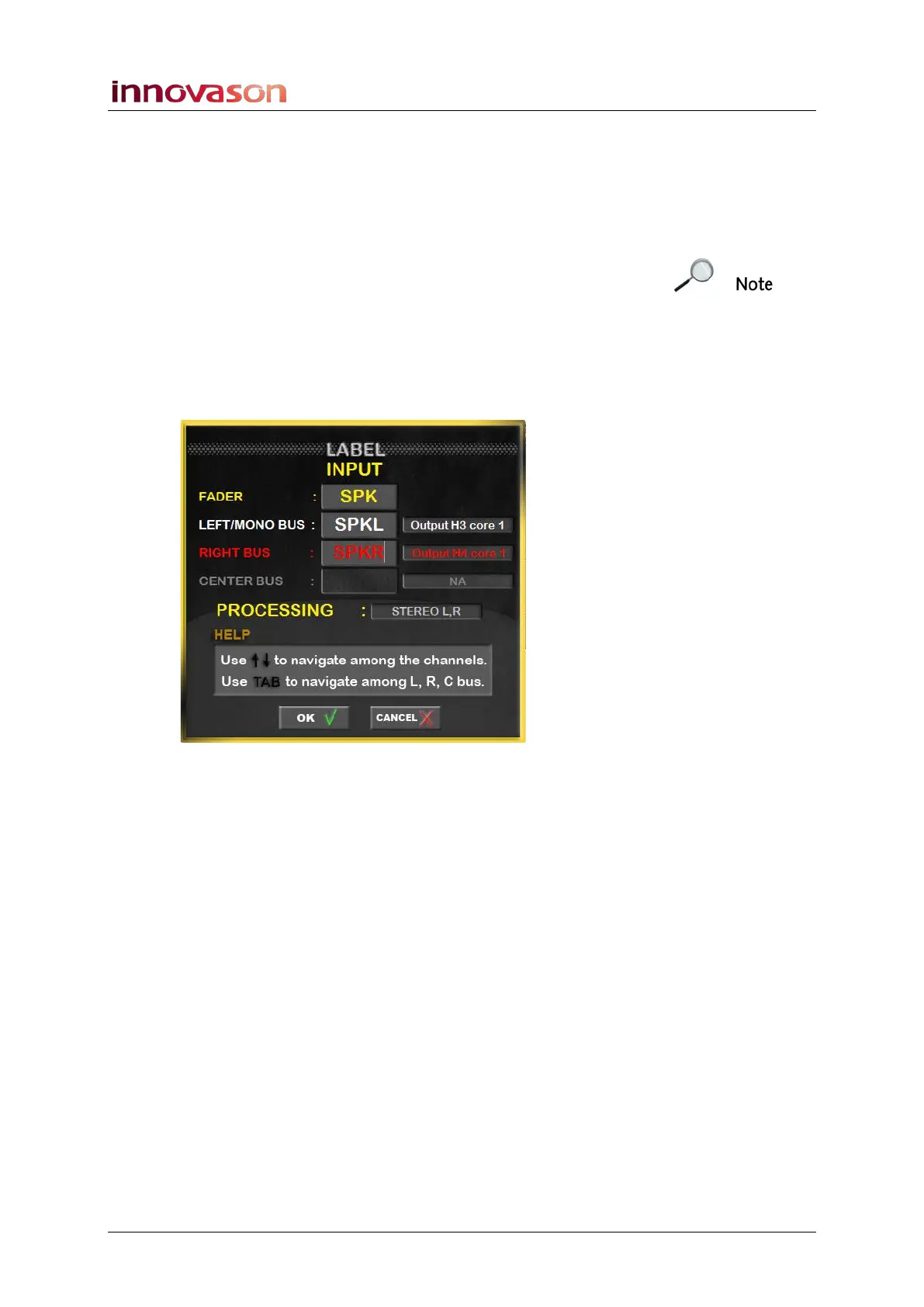

The output LABEL window appears:
3. On a mono channel, enter a 4-character Label into the
LEFT/MONO BUS field.
4. Confirm by pressing OK.
The output Label appears on the Fader strip and on the Main
Mix and Patch displays.
5. On a stereo channel, press [TAB] to navigate between
the different fields, and enter a 4-character Label into
each active field
6. Confirm by pressing OK.
The FADER Label appears on the Fader strip.
The LEFT and RIGHT output Labels are used on the Main Mix
and Patch displays.
All other fields are for information only.
