Chapter 6: Console Configuration
The Personal Console Builder: Mix Bus Configuration
Eclipse User Guide 2.0 225/ 526
Mix Bus Configuration
Each of Eclipse’s 48 mix busses may be configured as an Aux,
Group, Master or Matrix, and each bus may be mono, stereo
LR or LRC. This configuration is made by assigning a mix bus
channel to a fader, and then determining its format:

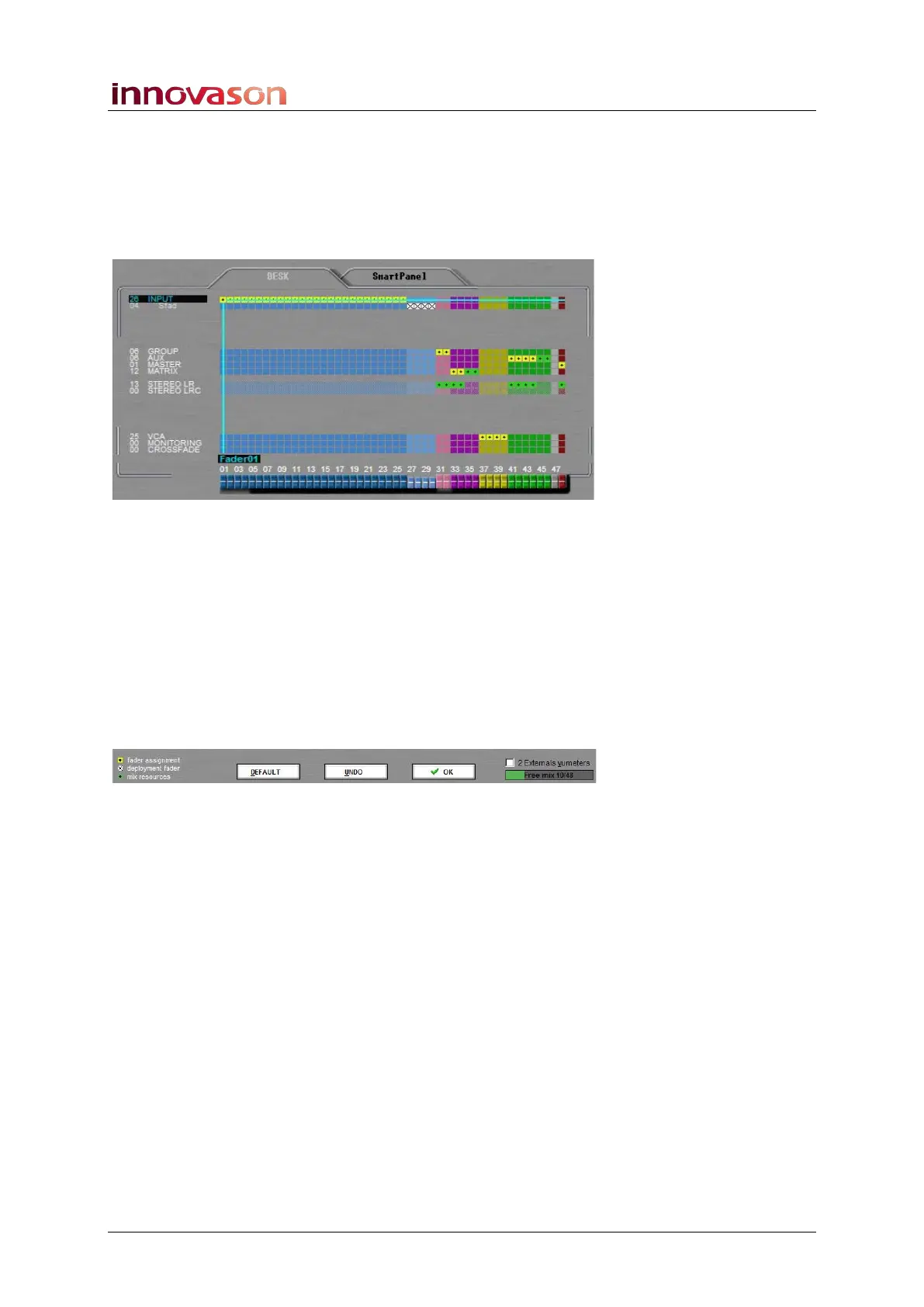

In our example:
• Faders 31 and 32 are stereo LR Groups (pink)
• Faders 33 and 34 are stereo LR Matrices (violet)
• Faders 35 and 36 are mono Matrices (violet)
• Faders 41 to 44 are stereo LR Auxes (green)
• Fader 48 is the stereo Master (red)
Each time a bus is assigned, the mix bus resource counter
updates – in our example, we have 10 free busses remaining:
Please see Page 159 for an overview of the different bus types.
