Chapter 6: Console Configuration
The Patch Input Display
236/ 526 2.0 Eclipse User Guide
4. If you have selected the DIO1 source tab, then select
the Ethersound streaming direction from the E.S.
Streaming buttons:
• UP = upstream
• DOWN = downstream
Note that the direction you choose depends on the
configuration of your Ethersound network. In a standard Eclipse
network, you should choose UP within this grid.

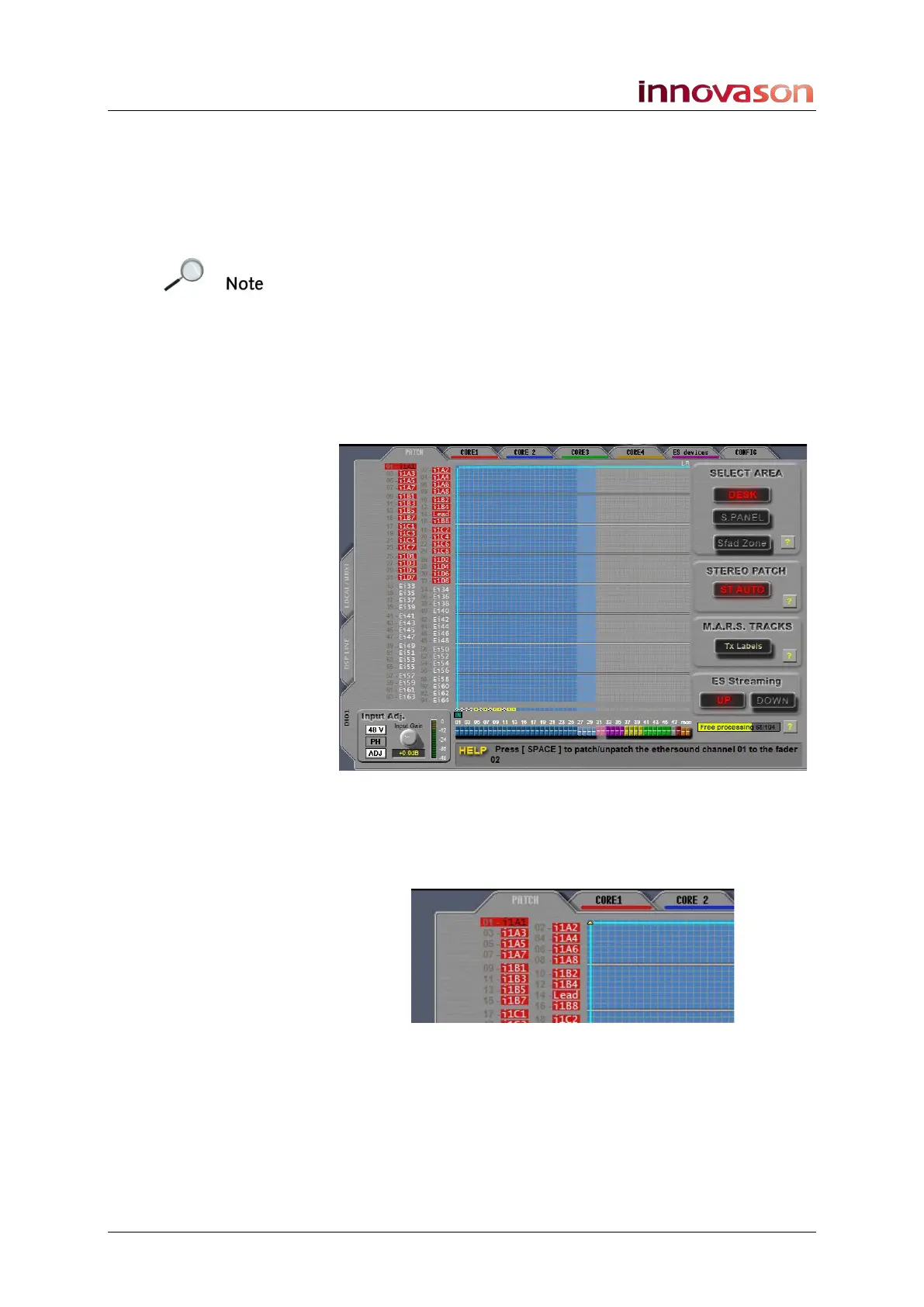

5. Now position the cursor over the desired crosspoint – for
example, Ethersound channel 1 to Fader 01:
• You can select the channel by pressing its SEL button.
• Then use the up and down arrows on the console
keyboard to select the source.
6. Press the [SPACE bar] on the console keyboard, or
right-click, to make the patch.
A yellow triangle confirms that the patch is made and shows the
Ethersound streaming direction (up or down):
If this is the first time you have patched the input fader, then the
system assigns a mono input channel resource and the Free
processing counter reduces by one.
