Chapter 6: Console Configuration
The Patch Output Display
Eclipse User Guide 2.0 249/ 526
Output Patching
To patch a mix bus (e.g. an Aux channel) to a physical output:
1. Select the PATCH tab at the top of the PATCH
OUTPUT display.
2. And select a destination category from the left of the
display:
• LOCAL / MUXI = the Muxipaire outputs.
• DSP LINE = 16 line level outputs (rear of console).
• DIO1 = the 64 Ethersound channels.
Note that if you select DIO1, you will need to assign which
DioCore outputs, or other Ethersound devices, are fed from the
64 channels of the Ethersound network. See Page 263.

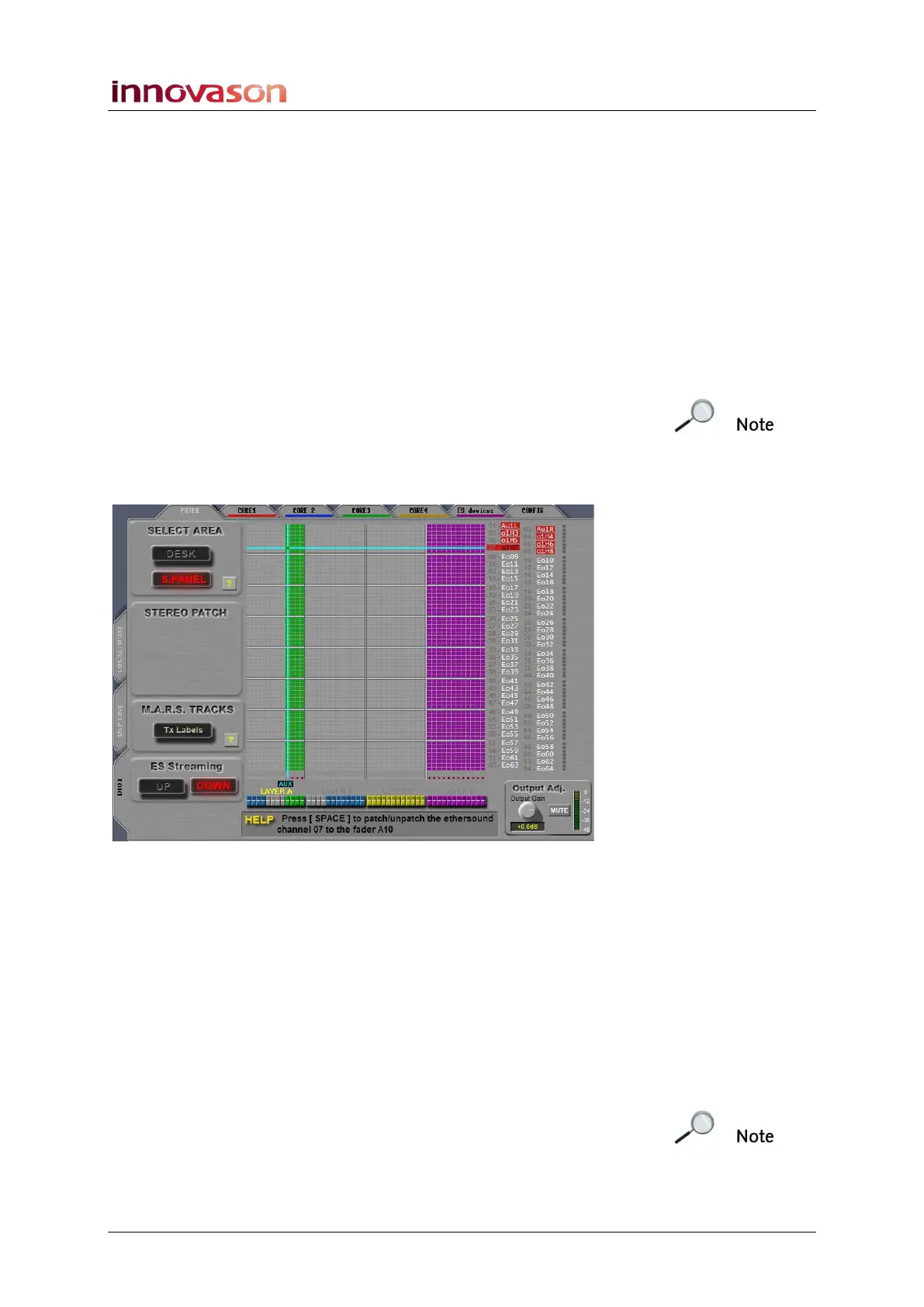

In our example we have selected DIO1 to patch mix busses to
Ethersound channels 1 to 64:
3. Select an area of the console from the SELECT AREA
buttons on the left of the display:
• DESK = Faders 1 to 48.
• S. PANEL = Smart Panel controllers 1 to 48.
4. If you have selected the DIO1 tab, then select the
Ethersound streaming direction from the E.S. Streaming
buttons:
• UP = upstream
• DOWN = downstream
Note that the direction you choose depends on the
configuration of your Ethersound network. With a standard
Eclipse network, you should choose DOWN within this grid.
