Chapter 6: Console Configuration
Ethersound Networks
Eclipse User Guide 2.0 267/ 526

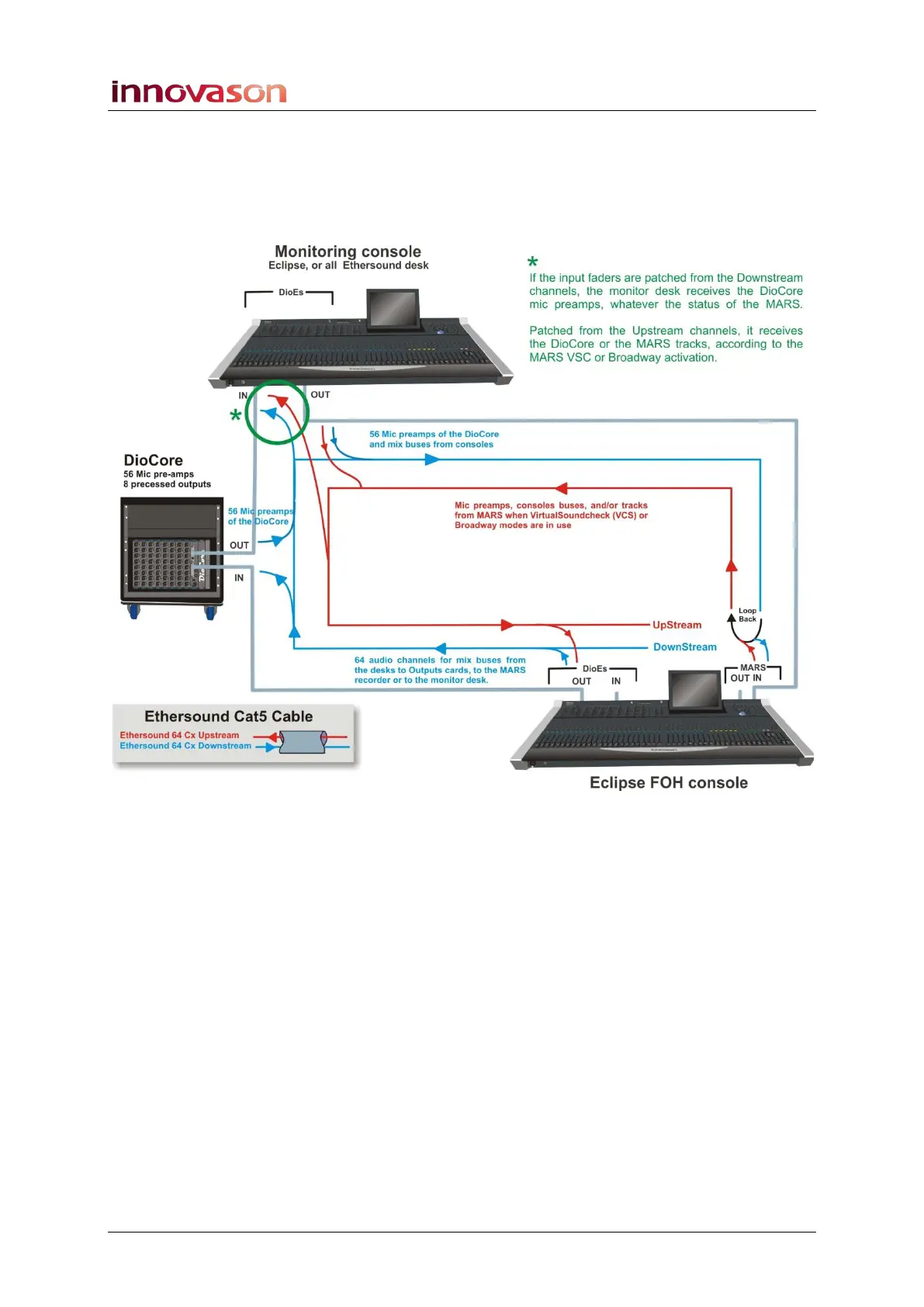

Example 2:
If you do not wish the FOH M.A.R.S to affect Ethersound
channels feeding the monitoring console, then configure the
network as follows:
The monitoring console can decide what it receives by
changing its Ethersound channel patching:
• Patching from downstream Ethersound channels (shown
in blue) = always DioCore mic inputs.
• Patching from upstream Ethersound channels (shown in
red) = channels will be switched between mic and replay
according to the FOH Eclipse VSC and Broadway
modes.
