Chapter 2: Installation

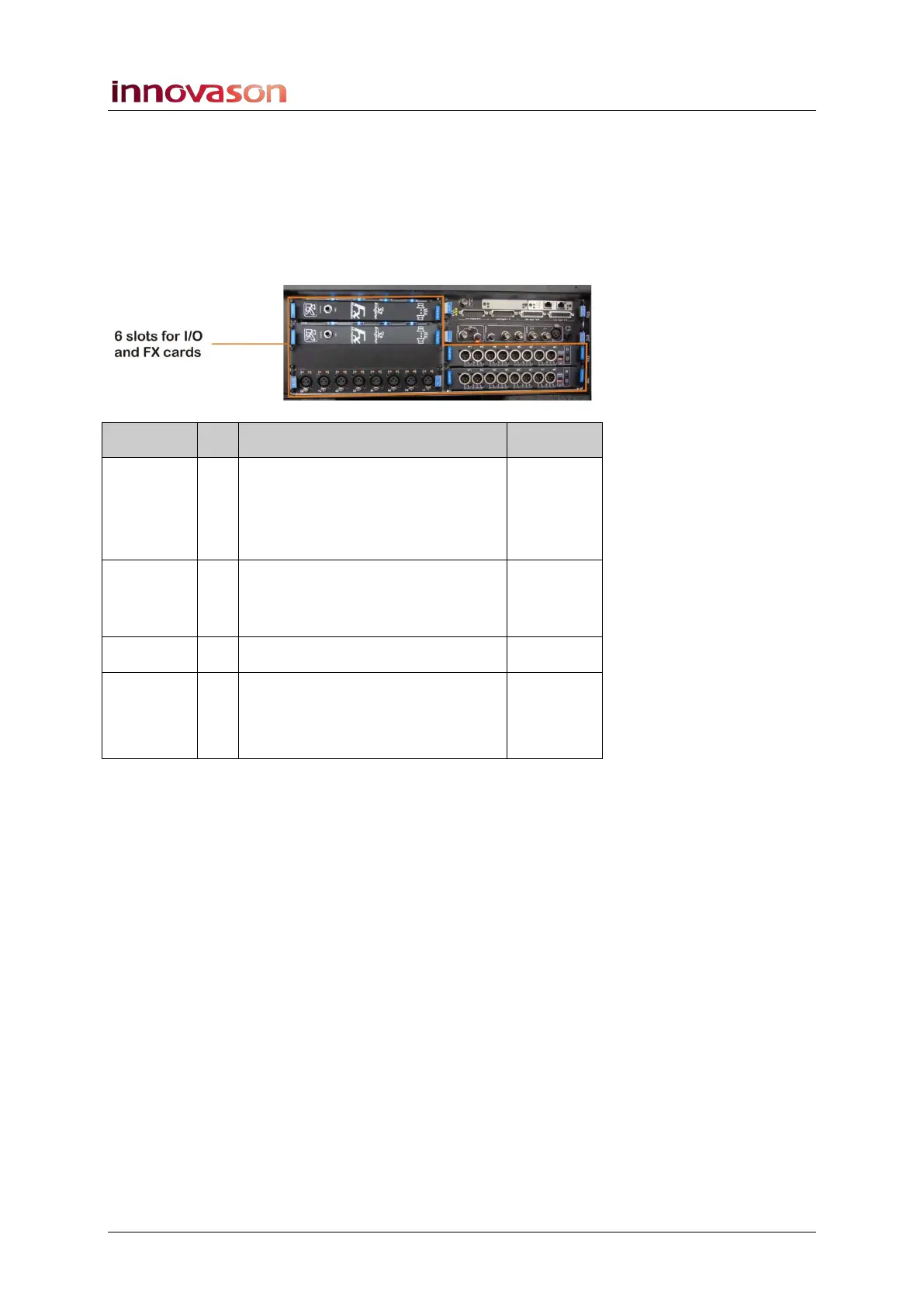

The Standard Eclipse Package
Eclipse User Guide 2.0 37/ 526
I/O and Effects Cards
There are then six I/O card slots which may be fitted with any
combination of I/O or internal FX cards. See Page 19 for an
overview of the available options.
The standard Eclipse package is delivered with five I/O cards
leaving one slot available for future expansion:
Card No. I/O Connector
UM-8PO
2 16 balanced outputs with DSP
processing and adjustable max level.
Each pair is switchable to AES;
all 16 outputs available on ADAT.
XLR
XLR
TOSLink
FM-8VB
2 16 internal effects racks
Any pair stereo; up to 4 effects plug-ins
per channel.
n/a
SI-8D3
1 8 Mic/Line balanced inputs XLR
DSP
1 16 Line Level inputs
16 balanced outputs
Ethersound interface (64- channels)
SubD25
SubD25
CAT 5
