Chapter 3: Operating Principles
The Nova Touch-Screen
Eclipse User Guide 2.0 71/ 526
Output Channels

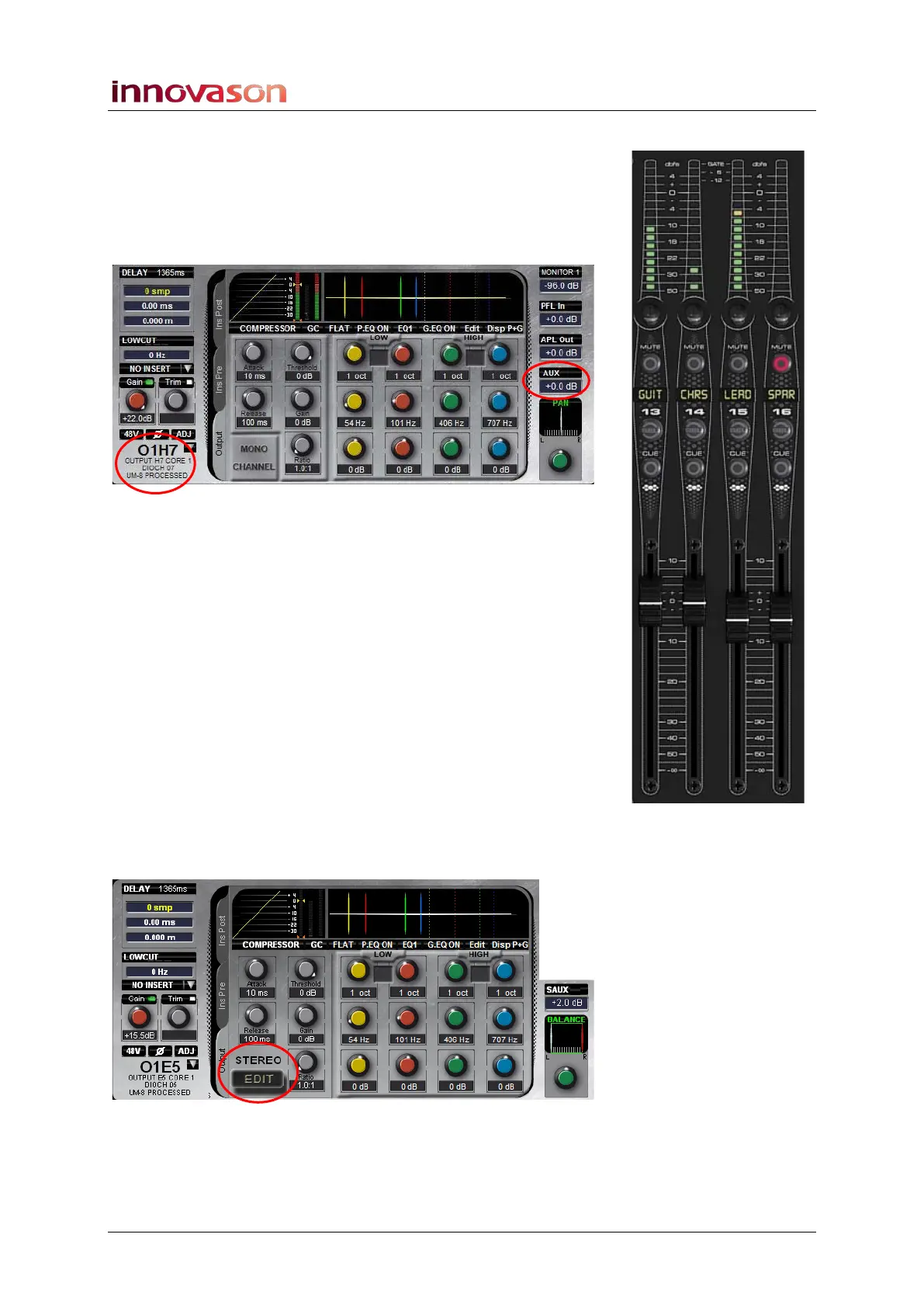

1. Now press SEL on an output channel (Aux, Group,
Matrix or Master):
The channel type shows the type of output (e.g. AUX), and the
Label shows the first output patched from the bus (e.g. O1H7):
On output channels you can tab between the following
processing:
• Output processing – this is processing applied at the
physical output. For example, if the output is on a UM8-
PO card you will see the Compressor, Gate, Parametric
and Graphic EQ supplied by the UM8 card.
• Insert Pre – processing which has been inserted pre-
fader. This could be an external device, one of the 16
floating DSP resources or an internal effects bay.
• Insert Post – post-fader inserted processing which
could be an external device, one of the 16 floating DSP
resources or an internal effects bay.
A switch on the User Defined panel can be assigned to cycle
through the tabs, see Page 322.
Note that if the output is stereo, then the text STEREO appears
beside the Output tab:
You can deploy the left, right and centre components of a
stereo output to the Smart Panel using the on-screen EDIT
button, see Page 189 for details.
