Memory Interface Routing

112 Intel

Pentium

4 Processor / Intel

850 Chipset Family Platform Design Guide

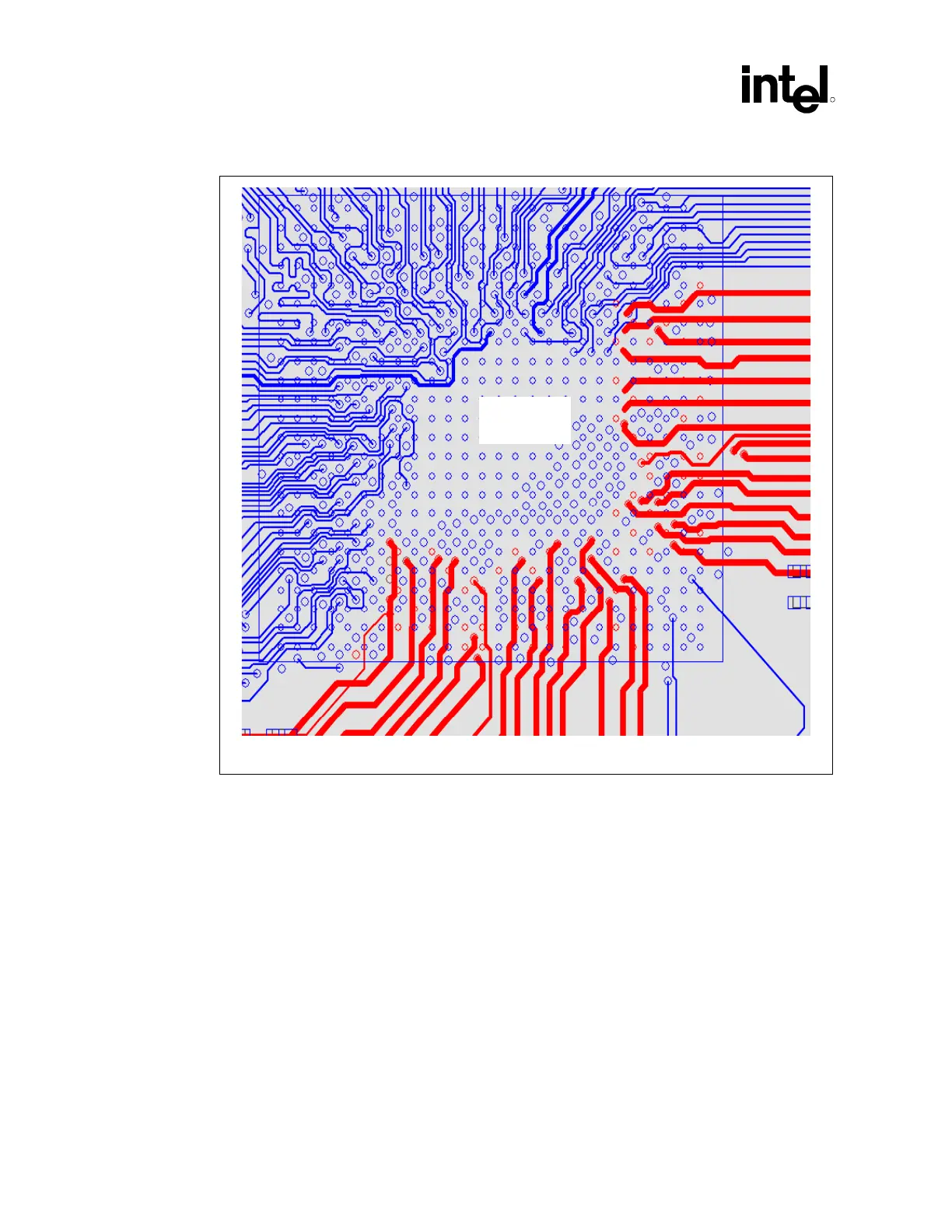

Figure 74. Rambus Technology Intel

MCH Breakout (Bottom Layer)

Bottom

Layer

Channel A

Channel B

6.2.1 Optimized Rambus RDRAM* Device Routing Rules for a

Four-Layer Motherboard Design

This section documents ONLY the routing guideline changes from the general guidelines outlined

in the Intel

Pentium

4 Processor in the 478 Pin Package / Intel

850 Chipset Family Platform

Design Guide.

General optimized routing guidelines that apply to Channel A and

Channel B

• Do NOT implement dummy VIAs on RSL signals routed on the top layer.

• RSL signals routed on the top layer need to be routed 25mils longer than RSL signals on the

bottom layer.
