AGP Interface Routing
R
Intel
®
Pentium
®
4 Processor / Intel
®
850 Chipset Family Platform Design Guide 123

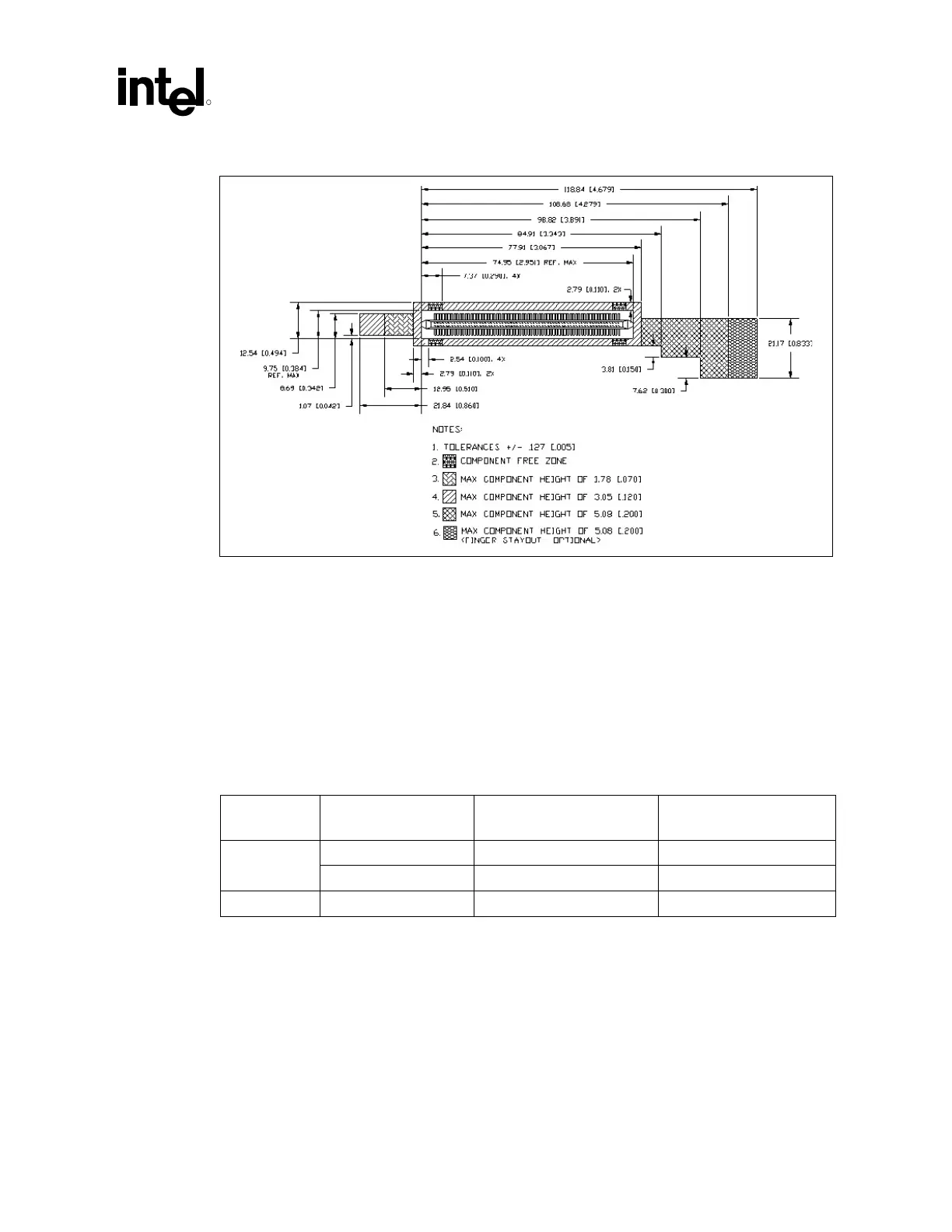

Figure 79. AGP Left Handed Retention Mechanism Keep-out Information
Engineering Change Request number 48 (ECR #48) of the AGP specification details the AGP RM,
which is recommended for all AGP cards. These are approved changes to the Accelerated
Graphics Port (AGP) Interface Specification, Revision 2.0. Intel intends to incorporate the AGP
RM changes into later revisions of the AGP Interface Specification. In addition, Intel has defined a
reference design of a mechanical device to utilize the features defined in ECR #48.
ECR #48 can be viewed off the Intel Web site at:
http://developer.intel.com/technology/agp/ecr.htm
More information regarding this component (AGP RM) is available from the following vendors.
Table 29 List of Vendors for Retention Mechanism
Resin Color Supplier Part Number “Left Handed” Orientation
(Preferred)
“Right Handed”
Orientation (Alternate)
AMP P/N 136427-1 136427-2 Black
Foxconn P/N 006-0002-939 006-0001-939
Green Foxconn P/N 009-0004-008 009-0003-008
