Power Distribution Guidelines

234 Intel

Pentium

4 Processor / Intel

850 Chipset Family Platform Design Guide

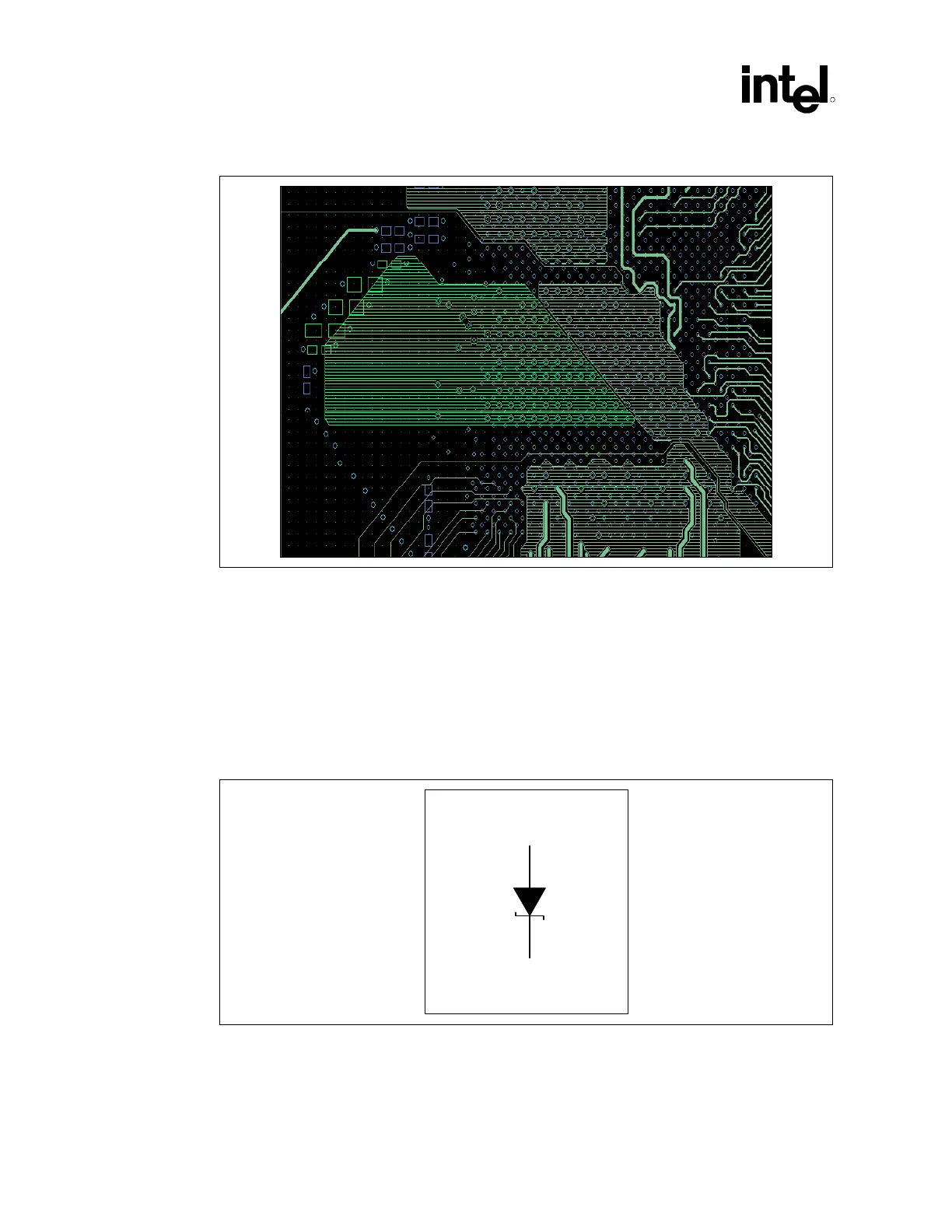

Figure 176. Customer Reference Board Layout Example (Signal 2 – Layer 4)

12.4 Vterm/Vdd Power Sequencing Requirement

Power to the RDRAM device termination resistors (Vterm) must follow the power to the RDRAM

device Core. A Schottky diode can be placed between the 1.8 V and 2.5 V to ensure this power-up

sequence.

Figure 177. 1.8 V and 2.5 V Power Sequence (Schottky Diode)

1.8V

2.5V
