4 Processor / Intel

850 Chipset Family Platform Design Guide 179

9.9.4.6.1 Termination Plane Capacitance

It is recommended that the termination plane capacitance equal a minimum value of 1500 pF. This

helps reduce the amount of crosstalk on the differential pairs (TDP/TDN and RDP/RDN) from the

unused pairs of the RJ45. Pads may be placed for an additional capacitance to chassis ground,

which may be required if the termplane capacitance is not large enough to pass EFT (Electrical

Fast Transient) testing. If a discrete capacitor is used, to meet the EFT requirements it should be

rated for at least 1000 Vac.

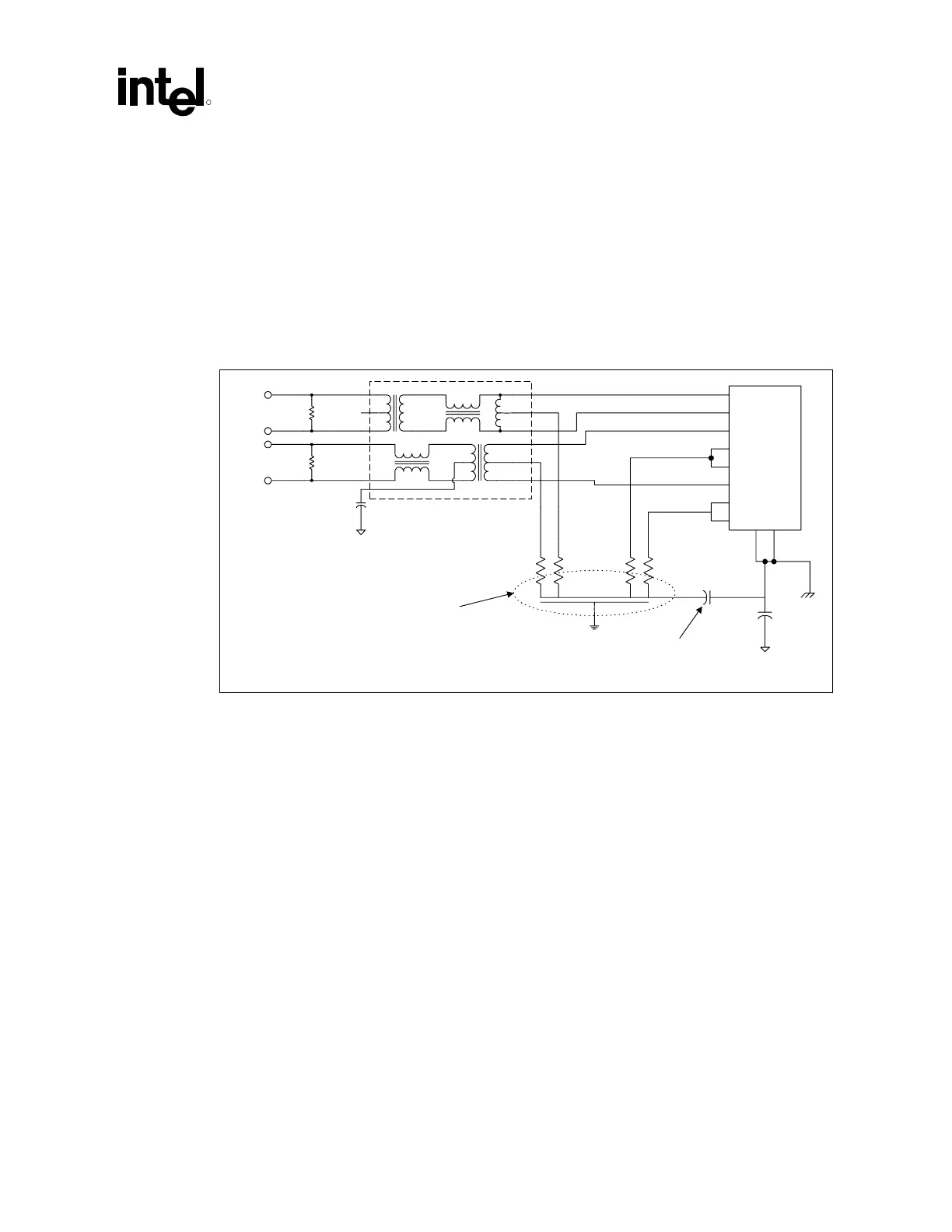

Figure 127. Termination Plane

N/C

RJ-45

Magnetics module

RDP

RDN

TDP

TDN

Termination plane

Additional capacitance that may be

required for EFT testing

LAN_term_plane
