Replacing a PTX5000 Vertical Air Filter
1.
Removing a PTX5000 Vertical Air Filter on page 168
2.
Installing a PTX5000 Vertical Air Filter on page 169
Removing a PTX5000 Vertical Air Filter
The vertical air filter is located with the vertical fan tray fan tray 0. The vertical air filter
weighs approximately 7.6 lb (3.5 kg).
To remove the vertical air filter (see Figure 55 on page 168):
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
the strap to one of the ESD points on the chassis.
2. Loosen the two captive screws on the vertical air filter tray.
3. Grasp the head of the loosened screws, and pull to remove the air filter tray.
4. Locate the two areas near each rear corner, where the air filter tray is exposed. Using
these air filter tray frame access areas, slide the air filter toward the air filter tray
faceplate, and pull up on the air filter to release the rear edge of the air filter from the
air filter tray.
5. Remove the air filter from the air filter tray.
6. Discard the air filter.

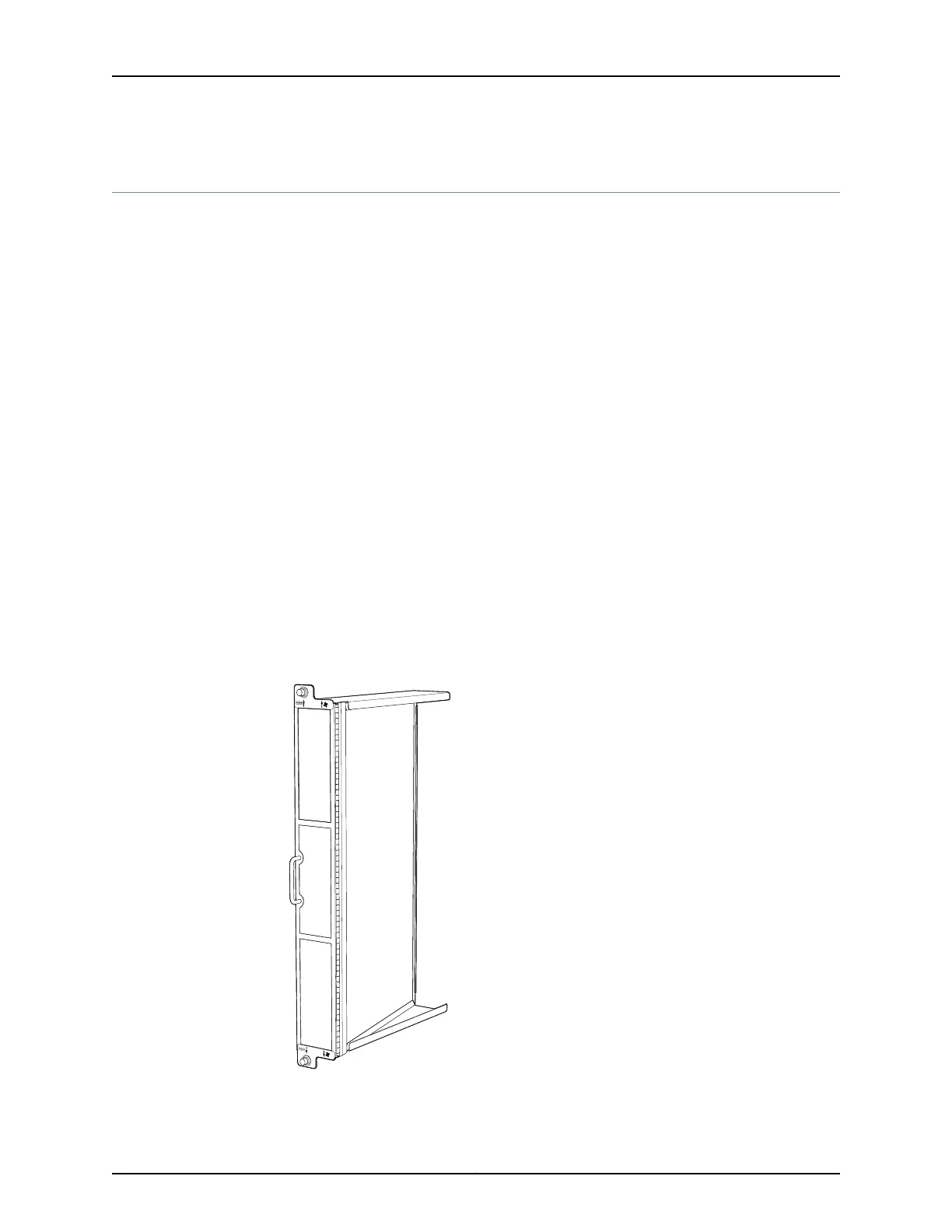

Figure 55: Vertical Fan Tray Air Filter
FANTRAY
PTX
VERTICAL
g006112
Copyright © 2012, Juniper Networks, Inc.168
PTX5000 Packet Transport Switch Hardware Guide
