Juniper PTX Series - Figure 75: Removing the Input Power Tray; Figure 76: Disconnecting the DC Source Power Cable Lugs to an Input Power

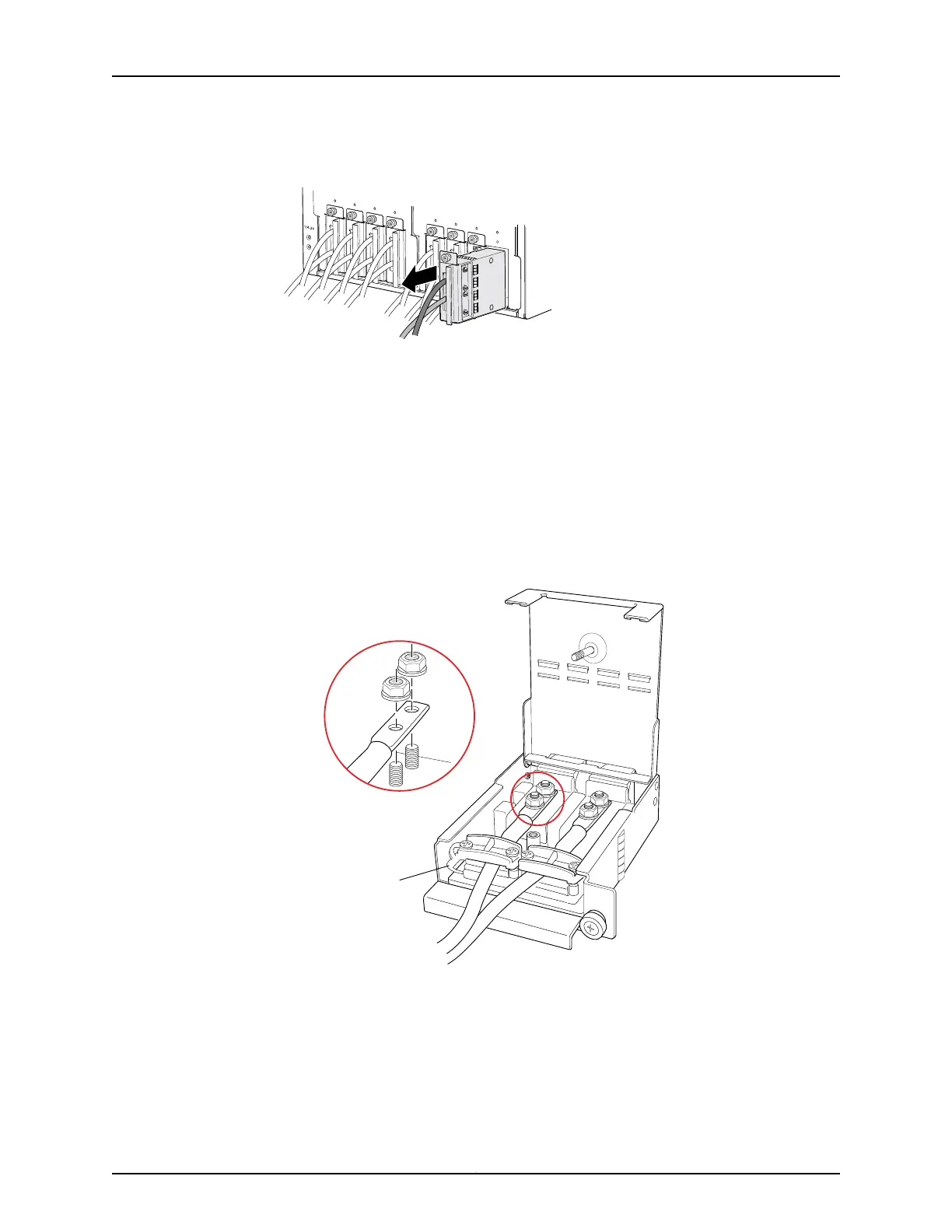

Figure 75: Removing the Input Power Tray
g006183
6. Use a Phillips screwdriver to loosen the screw on the metal input power tray cover.
7. Open the metal input power tray cover.
8. Loosen the cable restraints.
9. Use a 7/16-in. (11 mm) nut driver to loosen the nuts, and remove the nuts from the DC
power terminal stud.
10. Remove the DC source power cable lug from the DC power terminal stud.
Figure 76: Disconnecting the DC Source Power Cable Lugs to an Input
Power Tray
Cable restraint
g006184
