SIB 3 REV 07 750-030631 EG6011 SIB-I-8S
SIB 4 REV 07 750-030631 EG4907 SIB-I-8S
SIB 5 REV 07 750-030631 EG4879 SIB-I-8S
SIB 6 REV 07 750-030631 EG4864 SIB-I-8S
SIB 7 REV 07 750-030631 EG4899 SIB-I-8S
SIB 8 REV 07 750-030631 EG4880 SIB-I-8S
Fan Tray 0 REV 04 760-032784 EG1496 Vertical Fan Tray
Fan Tray 1 REV 04 760-030642 EG1335 Horizontal Fan Tray
Fan Tray 2 REV 02 760-030642 ED4952 Horizontal Fan Tray
Most components also have a small rectangular serial number ID label (see Figure 89
on page 280) attached to the component body.

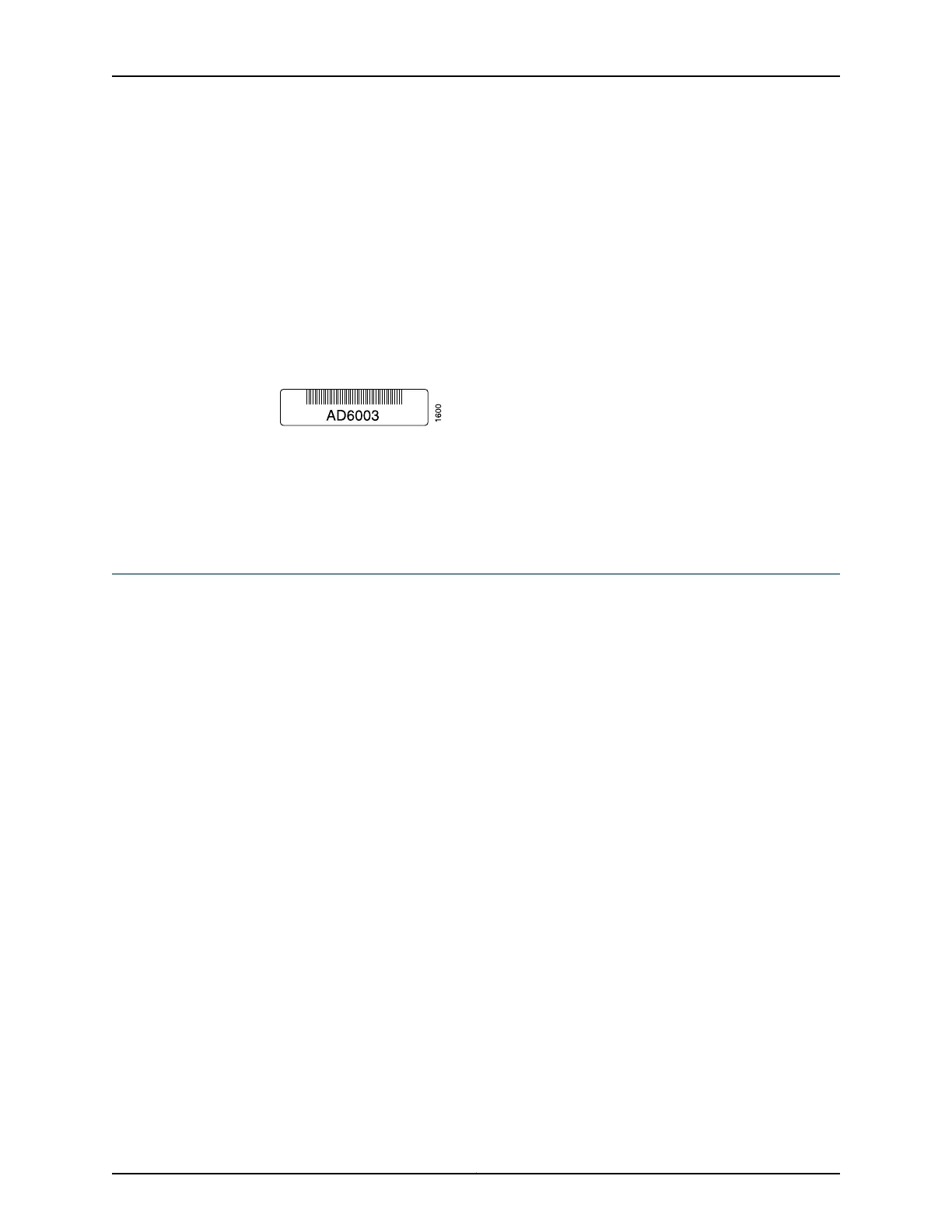

Figure 89: Serial Number ID Label
Related
Documentation
PTX5000 Component Serial Number Locations on page 280•
• Contacting Customer Support on page 275
• Returning a Hardware Component to Juniper Networks, Inc. on page 276
PTX5000 Component Serial Number Locations
•
Horizontal Air Filter Serial Number Label on page 280
•
Chassis Serial Number Label on page 281
•
CCG Serial Number Label on page 281
•
Control Board Serial Number Label on page 282
•
Craft Interface Serial Number Label on page 282
•
Horizontal Fan Tray Serial Number Label on page 283
•
Vertical Fan Tray Serial Number Label on page 283
•
FPC Serial Number Label on page 284
•
PIC Serial Number Label on page 284
•
PDU Serial Number Label on page 286
•
PSM Serial Number Label on page 287
•
Routing Engine Serial Number Label on page 288
•
SIB Serial Number Label on page 288
Horizontal Air Filter Serial Number Label
The serial number label is located on the lower left side of the horizontal air filter (see
Figure 90 on page 281).
