Removing a PTX5000 PIC SFP+ Transceiver
Small form-factor pluggables (SFPs) are transceivers that can be removed from a PIC.
SFPs are hot-insertable and hot-removable. Removing an SFP does not interrupt PIC
functioning, but the removed SFP no longer receives or transmits data.

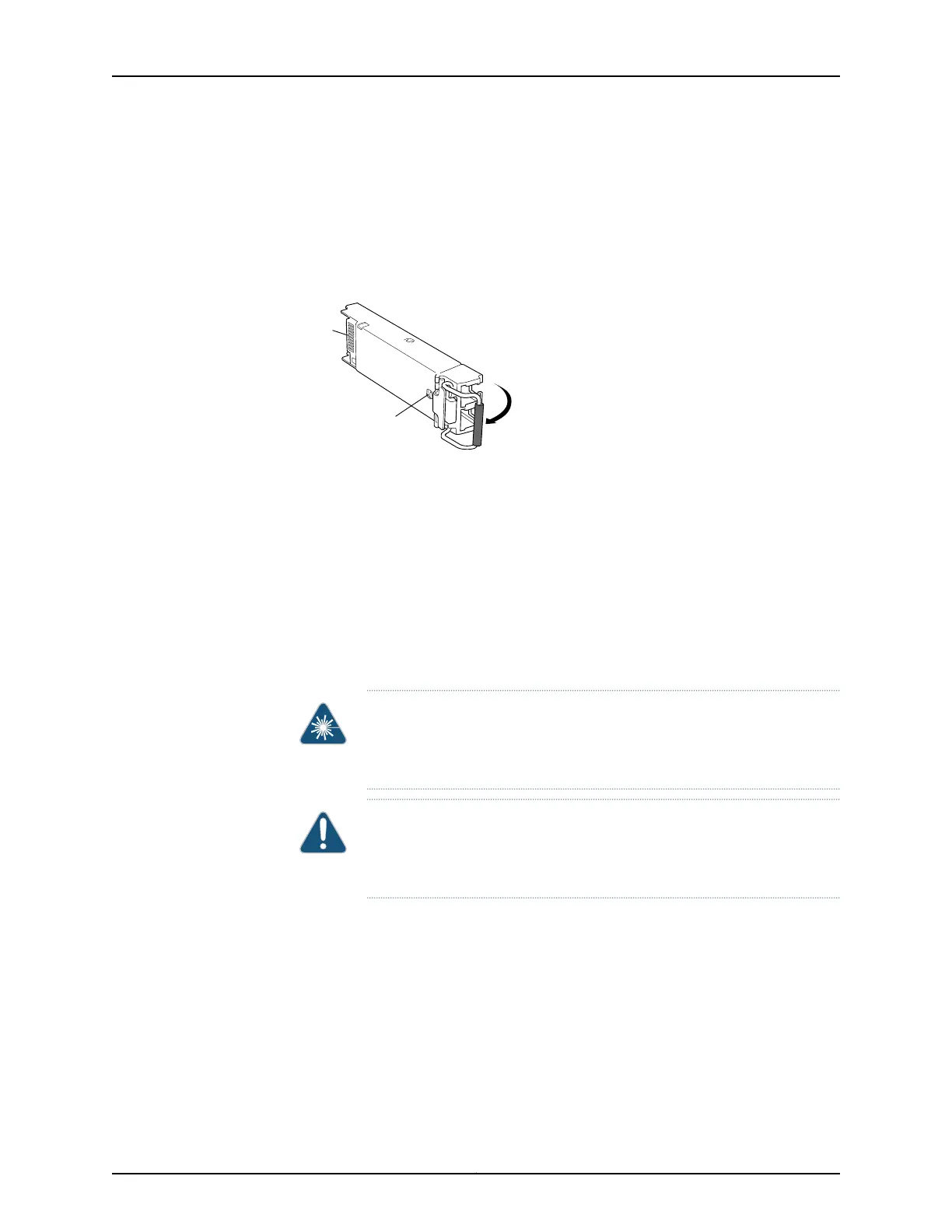

Figure 64: Small Form-Factor Pluggable (SFP)
g001855
Connector
Locking pin
To remove an SFP+ transceiver (see Figure 64 on page 185):
1. Place an electrostatic bag or antistatic mat on a flat, stable surface to receive the
SFP+. Have ready a rubber safety cap for the SFP+ transceiver and the cable.
2. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
the strap to one of the ESD points on the chassis.
3. Label the cable connected to the SFP+ so that you can later reconnect it to the correct
SFP+.
4. Disconnect the cable from the SFP+. Immediately cover the transceiver and the end
of the cable with a rubber safety cap.
WARNING: Do not look directly into a fiber-optic transceiver or into the
ends of fiber-optic cables. Fiber-optic transceivers and fiber-optic cable
connected to a transceiver emit laser light that can damage your eyes.
CAUTION: Do not leave a fiber-optic transceiver uncovered except when
inserting or removing cable. The safety cap keeps the port clean and
prevents accidental exposure to laser light.
5. Arrange the cable in the cable management system to prevent it from dislodging or
developing stress points. Secure the cable so that it is not supporting its own weight
as it hangs to the floor. Place excess cable out of the way in a neatly coiled loop in
the cable management system. Placing fasteners on the loop helps to maintain its
shape.
185Copyright © 2012, Juniper Networks, Inc.
Chapter 15: Replacing Packet Transport Switch Hardware Components
