1- 18 Keysight B2961A/B2962A SCPI Command Reference, Edition 6
Programming Basics

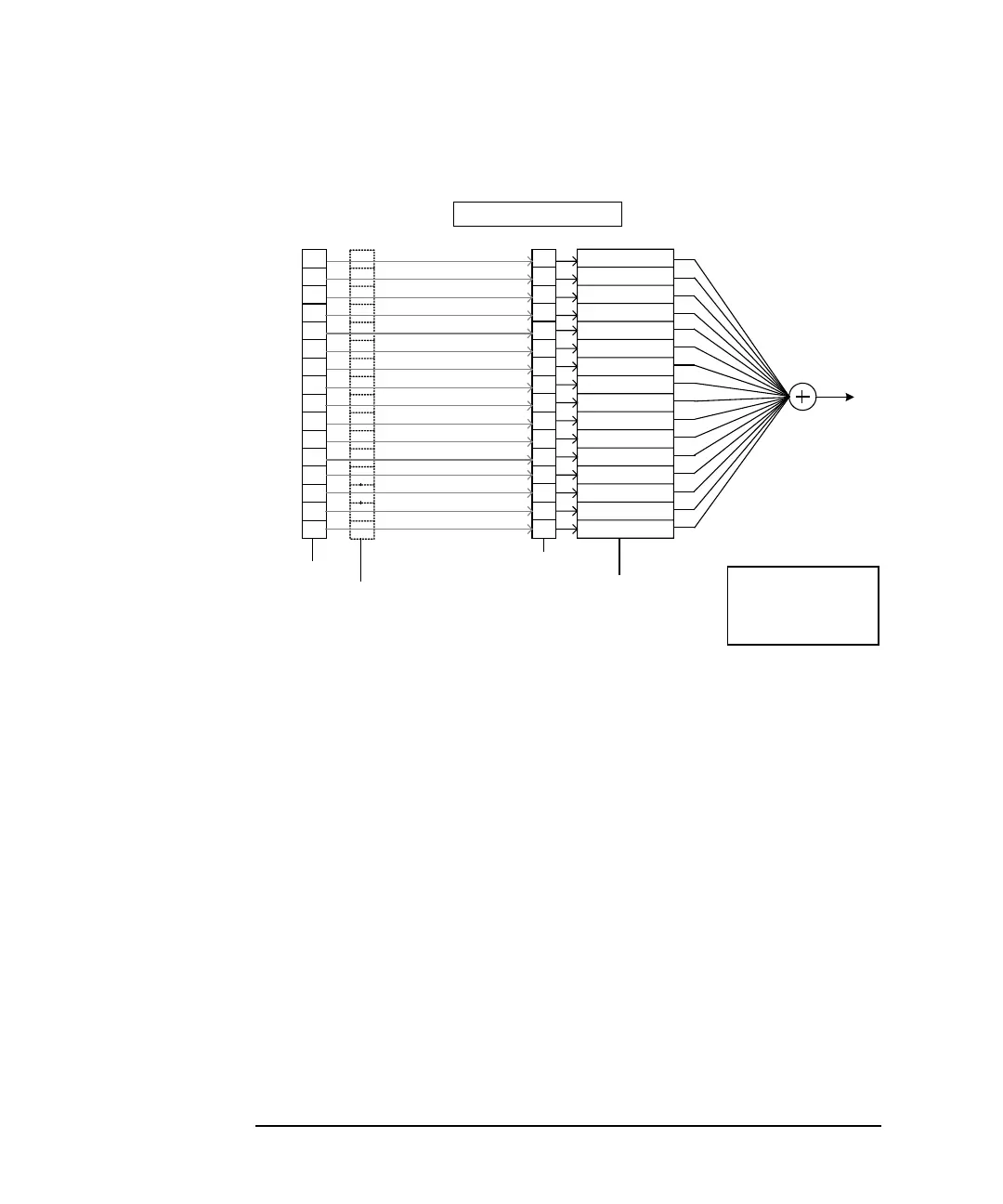

Status System Diagram
Figure 1-2 Measurement Status register
Notes:
C = Condition register
T = Transition filter
EV = Event register
EN = Enable register
EV EN
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
< 1 >
< 2 >
< 4 >
< 8 >
< 16 >
< 32 >
< 64 >
< 128 >
< 256 >
< 512 >
< 1024 >
< 2048 >
< 4096 >
< 8192 >
< 16384 >
Not Used
Measurement Status
:STAT :MEAS:EVEN ?
:STAT :MEAS:ENAB?
:STAT :MEAS:ENAB
:STAT :MEAS:NTR <enable>
:STAT :MEAS:NTR ?
:STAT :MEAS:PTR <enable>
:STAT :MEAS:PTR ?
C
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
:STAT :MEAS:COND ?
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
T
Ch1 Buffer Full
Ch2 Buffer Full
Ch1 Buffer Available
Ch2 Buffer Available
Ch2 Reading Available
Ch2 Reading Overflow
Ch1 Reading Available
Ch1 Reading Overflow
