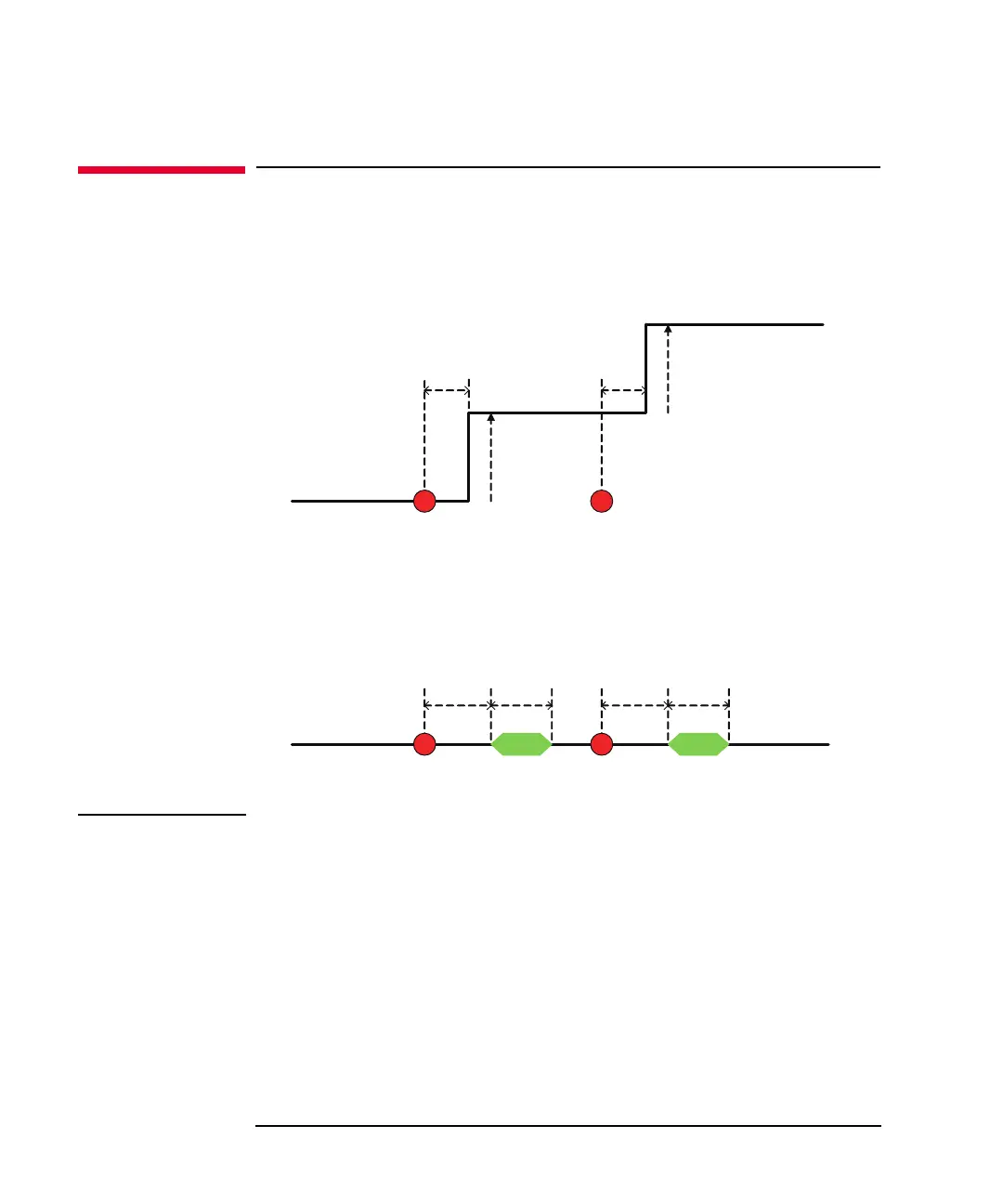

Figure 2-8 Transient and Acquire Device Actions
NOTE If channels are set as shown below, the device actions start simultaneously.
• To synchronize transient actions (source output)
• Trigger source is set to the same mode.
• Delay time is set to the same value.
• Source output ranging mode is set to the fixed mode.
• Source wait time control is set to OFF.
• Measurement wait time control is set to OFF.
• Measurement ranging mode is set to the fixed mode.
TRANsient device action
- for voltage or current output -
TRAN:DELay
ACQuire device action
- for voltage or current measurement -
Trigger
Step value
Step value
Measure Measure
TRAN:DELay
ACQ:DELay ACQ:DELay
Trigger
Trigger
Trigger
