Setting Source Output and Measurement
Setting Source Output and Measurement

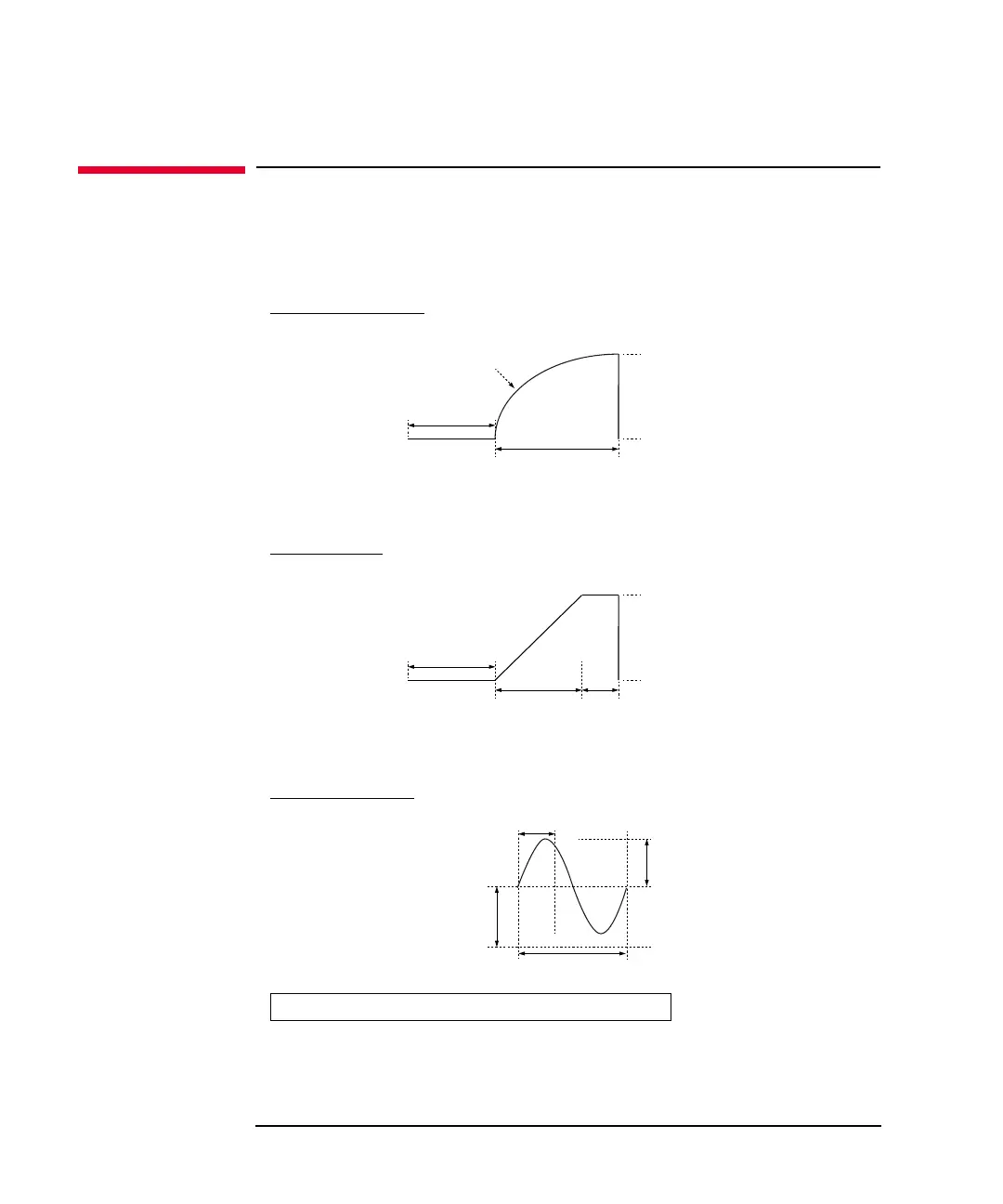

Figure 2-1 Variety of Arbitrary Waveforms, EXP, RAMP, SIN
:ARB:<CURR|VOLT>:EXP:END
Exponential waveform :<CURR|VOLT>:MODE ARB, :ARB:FUNC EXP
:ARB:<CURR|VOLT>:EXP:STAR
:ARB:<CURR|VOLT>:EXP:STAR:TIME
:ARB:<CURR|VOLT>:EXP:TCON
:ARB:<CURR|VOLT>:EXP:TIME
:ARB:<CURR|VOLT>:RAMP:END
Ramp waveform :<CURR|VOLT>:MODE ARB, :ARB:FUNC RAMP
:ARB:<CURR|VOLT>:RAMP:STAR
:ARB:<CURR|VOLT>:RAMP:STAR:TIME
:ARB:<CURR|VOLT>:RAMP:RTIM :ARB:<CURR|VOLT>:RAMP:END:TIME
:ARB:<CURR|VOLT>:SIN:AMPL
Sinusoidal waveform :<CURR|VOLT>:MODE ARB, :ARB:FUNC SIN
:ARB:<CURR|VOLT>:SIN:OFFS
:ARB:<CURR|VOLT>:SIN:PMAR:PHAS
:ARB:<CURR|VOLT>:SIN:FREQ
0
For all waveform, period must not exceed 1000 seconds.
