Keysight Technologies B2961A Command Reference

2- 48 Keysight B2961A/B2962A SCPI Command Reference, Edition 6
Subsystem Command Summary
Controlling Source/Measure Trigger
LXI Trigger Events
B2961A/B2962A provides a subset of the LXI Trigger Events (IVI-3.15
IviLxiSync) functionality in the trigger system.
• Device Model
Figure 2-11 shows the high-level LXI device model defined in IVI-3.15.
B2961A/B2962A does not have the LXI Trigger Bus, but has the UDP Port/TCP
Socket Listener and the LAN Event Sender in the system.
You can configure the trigger systems to send/receive LANn (n: 0 to 7) trigger
events by the instrument specific trigger event, slope, drive logic, destination,
and filter.

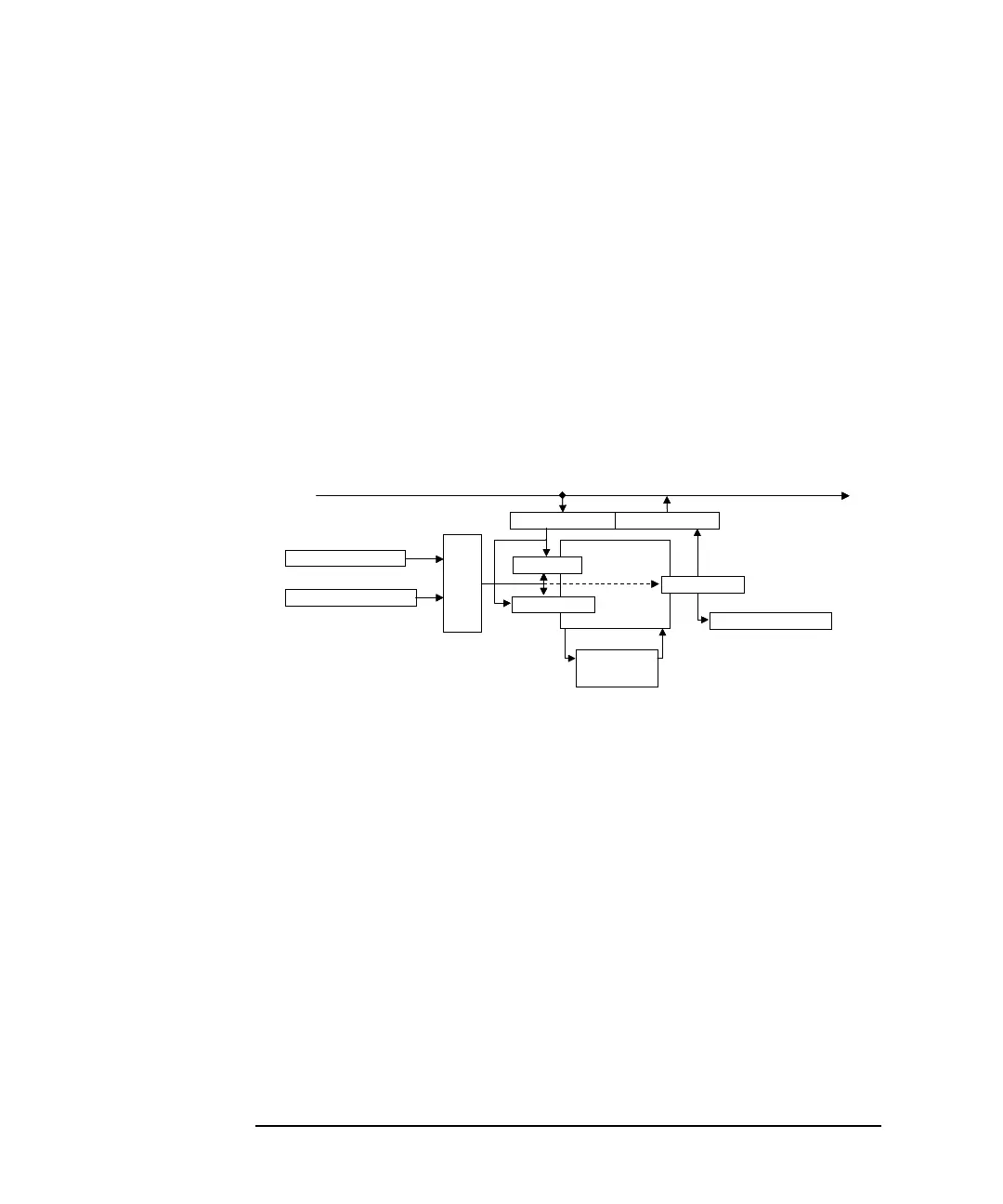

Figure 2-11 High-Level LXI Device Model
• Instrument Specific Events
B2961A/B2962A has the ARM-TRIGger model for each channel and actions
(transition and acquire), and provides following events.
• WaitingForAcquireArm1
• WaitingForAcquireArm2
• WaitingForAcquireTrigger1
• WaitingForAcquireTrigger2
• WaitingForTransitionArm1
• WaitingForTransitionArm2
• WaitingForTransitionTrigger1
• WaitingForTransitionTrigger2
• Measuring1
LXI Trigger Bus In
LXI Trigger Bus Out
LVDS Receivers LVDS Drivers
Arm
Trigger
State
Machine
Triggered
Action
LAN Event Sender
UDP Port Listener
TCP Socket Listener
LAN0...7
Input Register
Arm Logic
Trigger Logic
Event Logic
