Controlling Source/Measure Trigger
• To synchronize acquire actions (measurement)
• Trigger source is set to the same mode.
• Delay time is set to the same value.
• Measurement wait time control is set to OFF.

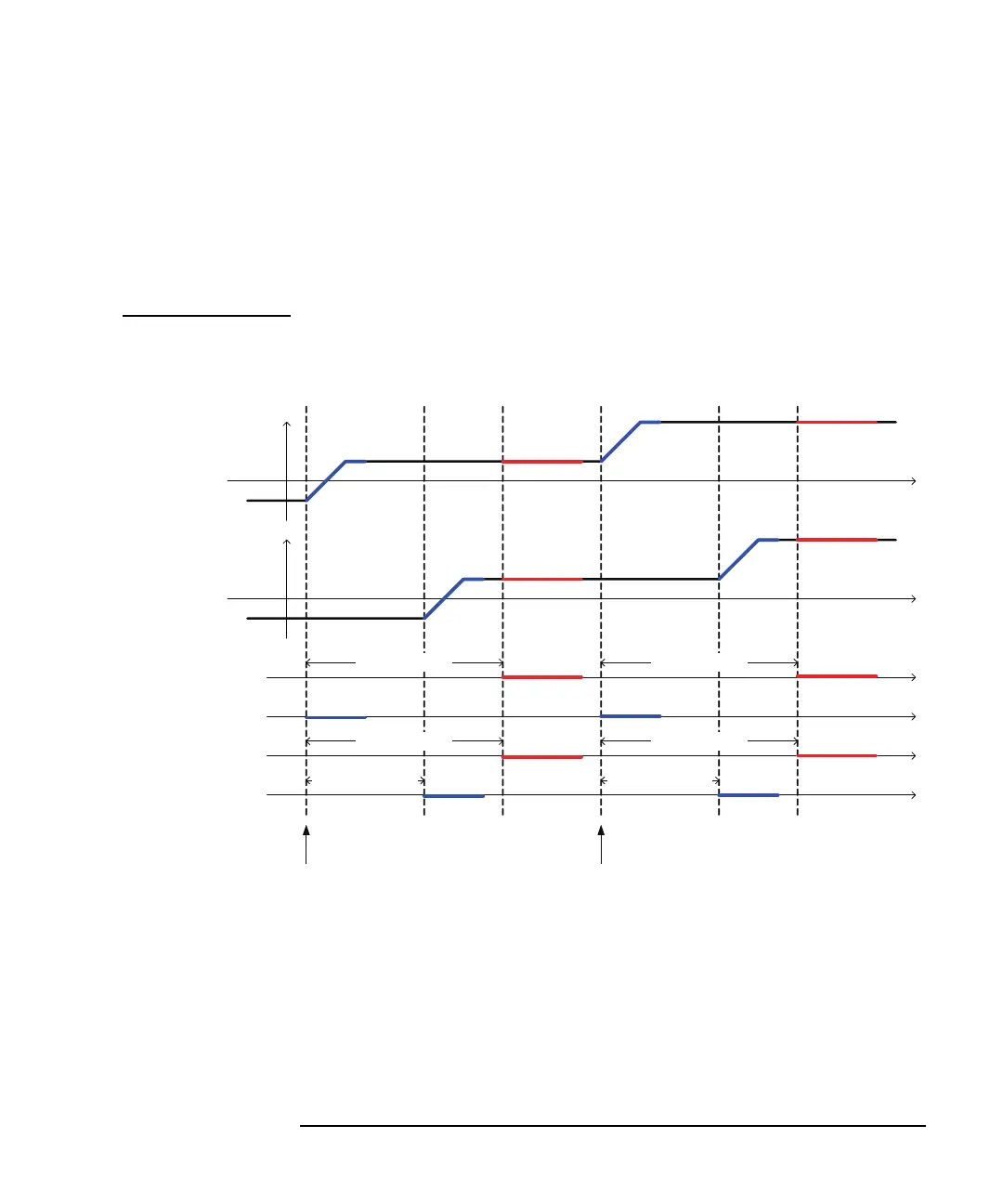

Figure 2-9 Operation Example Using Trigger Delay and AINT Trigger Source
Example of AINT trigger source.
Trigger is generated after
completing all of the actions set by 
:TRIG<:ACQ|:TRAN|[:ALL]>:SOUR AINT.
TRIG1:ACQ
:TRIG1:TRAN
SMU2
SMU1
time
time
V
V
:TRIG1:ACQ:DEL
:TRIG2:TRAN:DEL
Trigger Trigger
TRIG2:ACQ
:TRIG2:TRAN
:TRIG2:ACQ:DEL
:TRIG1:ACQ:DEL
:TRIG2:TRAN:DEL
:TRIG2:ACQ:DEL
Measure
Measure
Measure
Measure
