Controlling Source/Measure Trigger

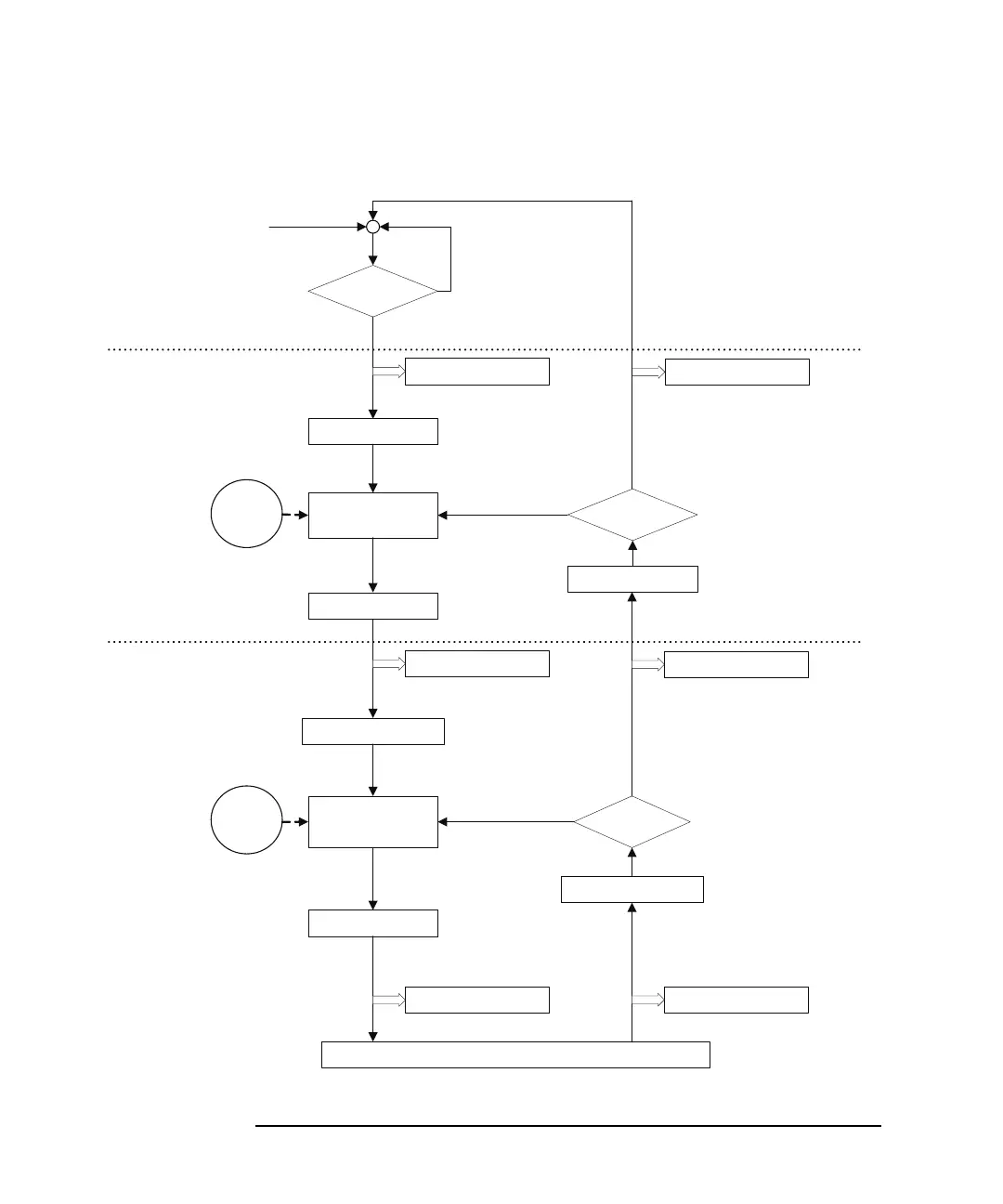

Figure 2-10 B2961A/B2962A Trigger System
INITiated?
No
Yes
INITiate[:ACQ|:TRAN]
ABORt[:ACQ|:TRAN]
*RST
DCL
SDC
*RCL
Idle
ARM Layer
TRIGger Layer
Trigger output
Event
detector
TRIGger
events
TRIGger[:ACQ|:TRAN]:SOURce
AINT
BUS
TIMer
INT1-2
EXT1-14
LAN
TRIGger[:ACQ|:TRAN]:BYPass
OFF or ONCE
TRIGger[:ACQ|:TRAN]:IMMediate
TRIGger[:ACQ|:TRAN]:TIMer
TRIGger delay
Device action (TRANsient or ACQuire)
Trigger output
Last count?
TRIGger[:ACQ|:TRAN]:COUNt
1 to 100000
No
Trigger output
(*2) TRIGger[:ACQ|:TRAN]:TOUTput[:STATe]
OFF or ON
TRIGger[:ACQ|:TRAN]:TOUTput:SIGNal
INT1-2
EXT1-14
LAN
Trigger output
(*1) ARM[:ACQ|:TRAN]:TOUTput[:STATe]
OFF or ON
ARM[:ACQ|:TRAN]:TOUTput:SIGNal
INT1-2
EXT1-14
LAN
Yes
TRIGger[:ACQ|:TRAN]:DELay
TRIGger count = 0
TRIGger count + 1
Last count?
No
Yes
ARM[:ACQ|:TRAN]:COUNt
INFinity
1 to 100000
ARM count + 1
Event
detector
ARM
events
ARM[:ACQ|:TRAN]:SOURce
AINT
BUS
TIMer
INT1-2
EXT1-14
LAN
ARM[:ACQ|:TRAN]:BYPass
OFF or ONCE
ARM[:ACQ|:TRAN]:IMMediate
ARM[:ACQ|:TRAN]:TIMer
ARM delay
]:DELay
ARM[:ACQ|:TRAN
ARM count = 0
Trigger output
Trigger output
(*3) [SENSe|SOURce]:TOUTput[:STATe]
OFF or ON
[SENSe|SOURce]:TOUTput:SIGNal
INT1-2
EXT1-14
LAN
before ARM (*1)
after ARM (*1)
before Device action (*3) after Device action (*3)
before TRIGger (*2) after TRIGger (*2)
INFinity
