2 General Power Meter Functions
100 Keysight N1911A/1912A User’s Guide

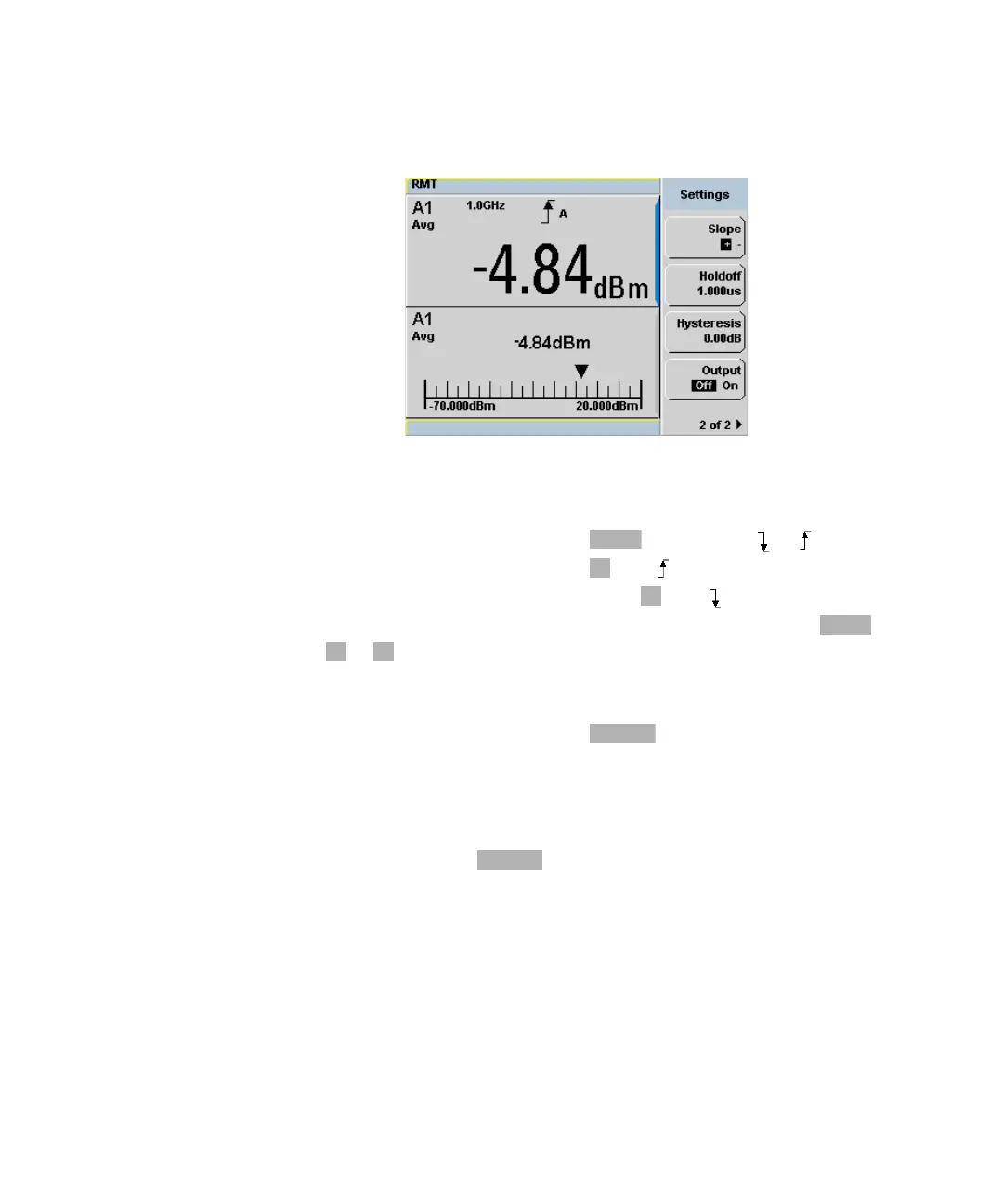

Figure 2-40 Trigger setting menu 2 of 2
Slope
The current setting is displayed below the label and the or symbol is
displayed in single numeric display mode. (and ) is used to generate the
trigger from an increasing power level. Similarly, (and ) is used to generate
the trigger from a decreasing power level. To change the setting, press to
highlight or as required.
Holdoff
The current setting is displayed below the label. After a trigger event
occurs, the trigger mechanism is disabled for the configured time period. This
allows stable triggering to be achieved even when a signal has multiple edges, for
example, a TDMA signal with non-constant amplitude modulation. Values up to
400 ms can be configured.
To change the setting press and use the numeric keypad to enter the
required value in the Trigger Holdoff pop-up window to enter the new value.
