Keysight N1911A

2 General Power Meter Functions
126 Keysight N1911A/1912A User’s Guide

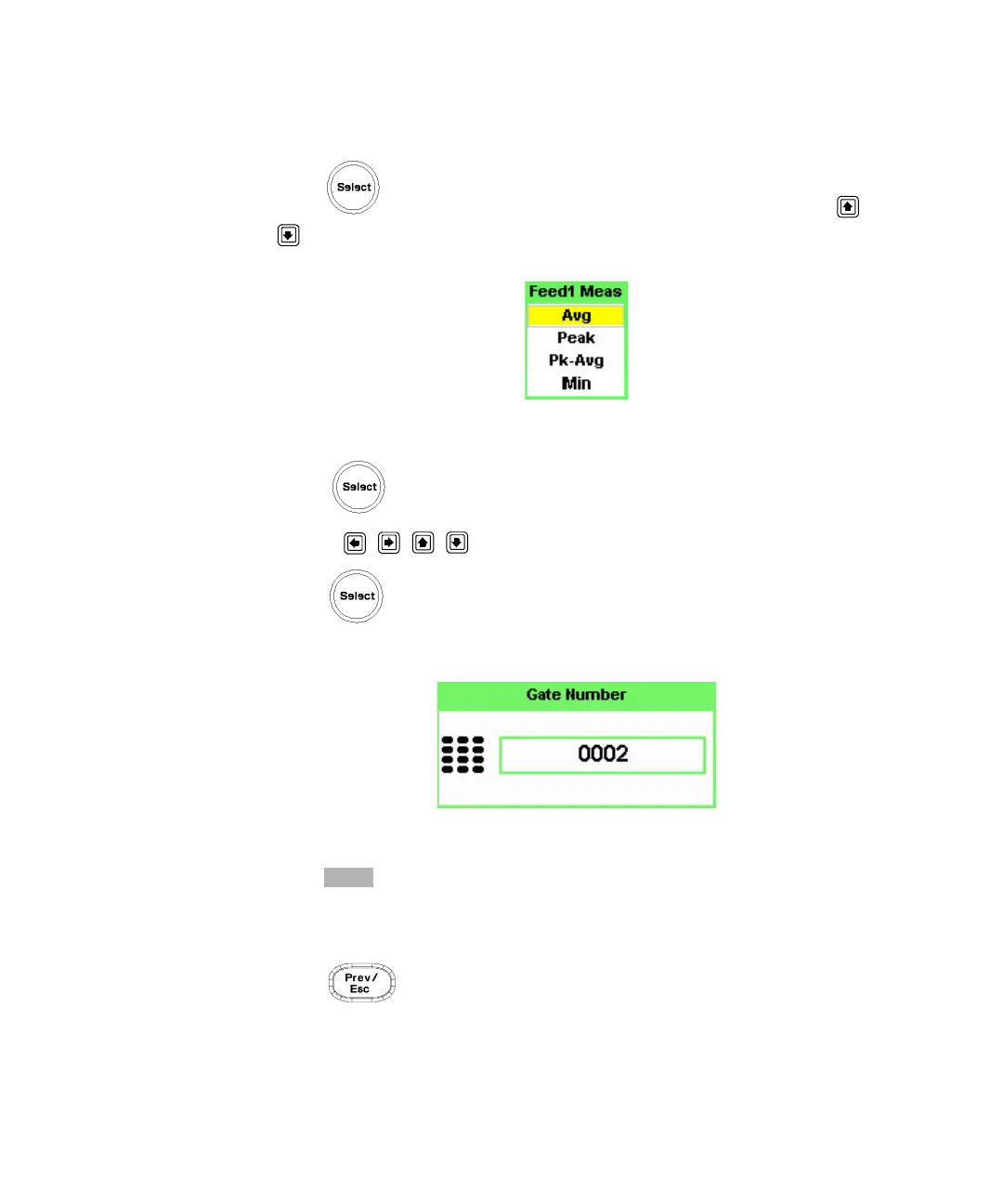

5 Press to display the Feed Measurement pop-up, and use the and
in assign a measurement type.
Figure 2-56 Measurement type pop-up
6 Press to complete the entry.
7 Use the , , , , to highlight the Gate field.
8 Press to display the Gate Number pop-up, and use the numeric
keypad to enter the required value in the Gate Number pop-up window.
Figure 2-57 Gating Number pop-up
9 Press to complete the entry.
10 Repeat this process until you have setup all the required gates and
measurements.
11 Press key to complete the setup and display the measurement
results.
Enter
