15 Press to display the Y Scale/Division pop-up.
a Use the numeric keypad to enter the required value in the Y Scale/Division
pop-up window.
b Use the and keys to increase or decrease the value.

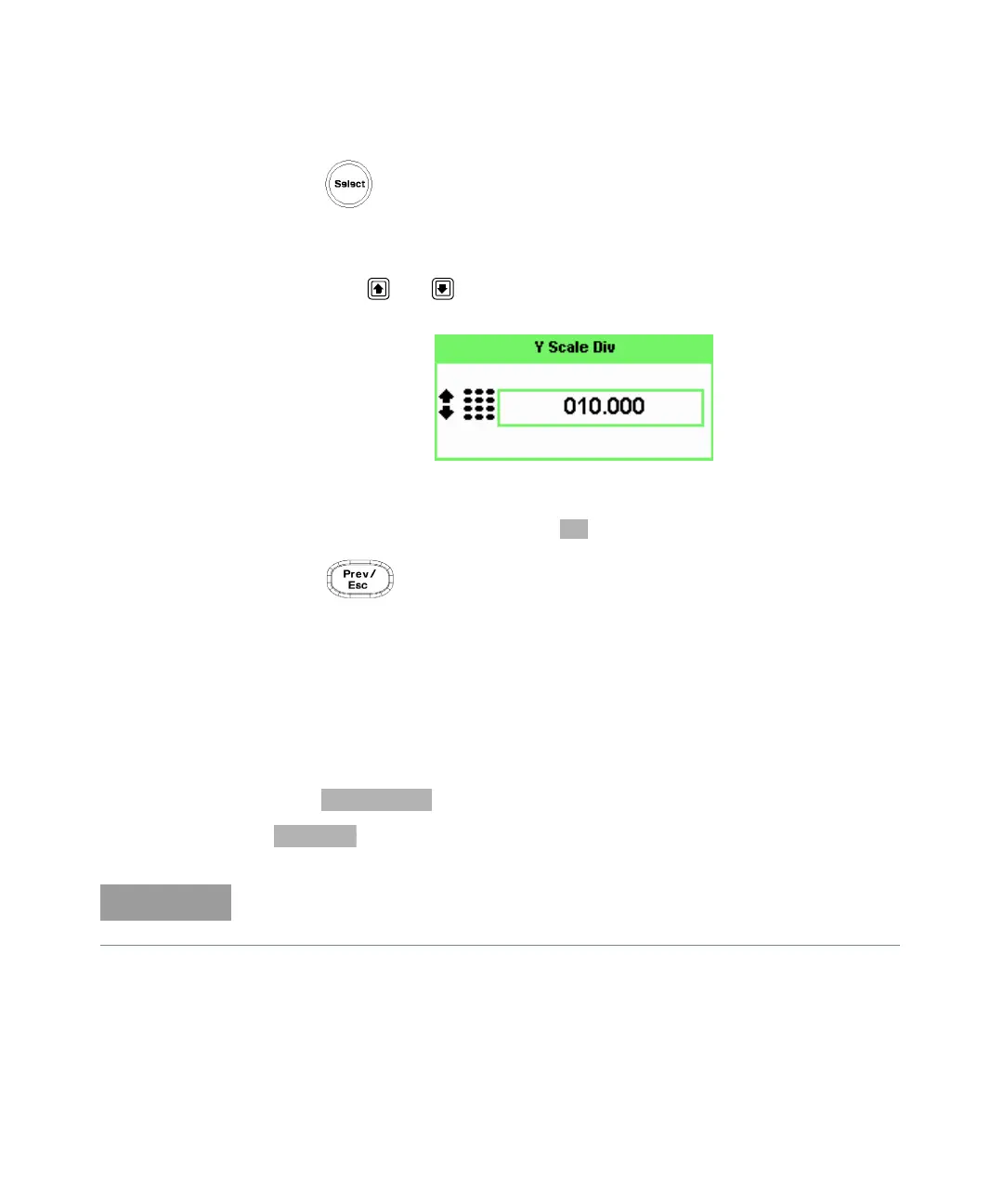

Figure 2-35 Y Scale/Division pop-up
16 Complete the entry by pressing the or the linear value.
17 Press key to complete the setup and display the measurements
results.
Auto Scale
Auto Scale automatically configures the window’s X-axis and Y-axis to best
display the input trace.
1 Press softkey under Gate Ctrl menu.
2 softkey is pressed to accomplish auto scaling.
This feature will work reliably with well behaved pulses. Modulated pulses may
cause the meter to auto-scale on the details within the pulse envelope.
To Next Page
