1Introduction
40 Keysight N1911A/1912A User’s Guide

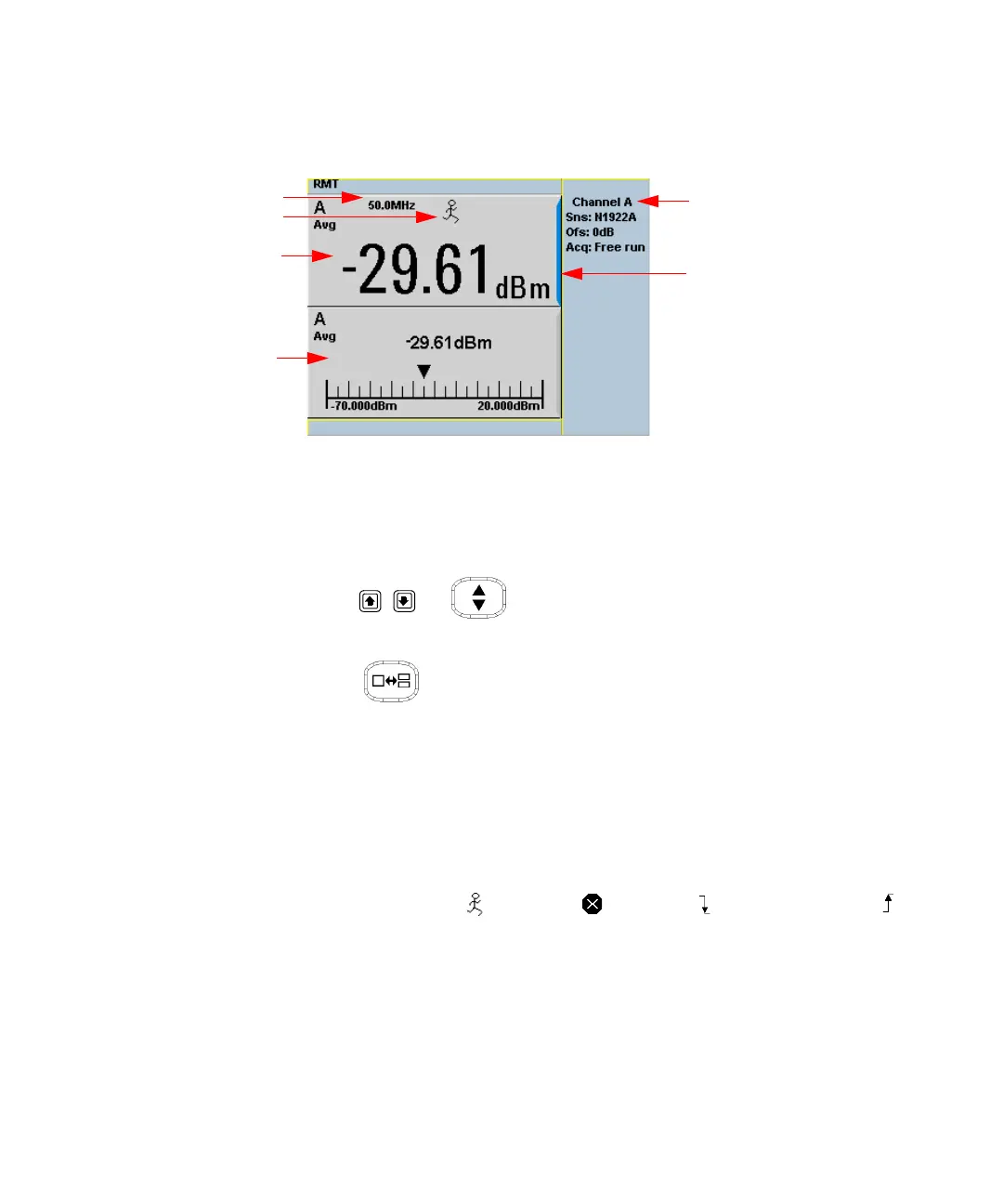

Figure 1-2 Single numeric and analog display
10 Figure 1-2 shows the default display mode of two measurement windows. The
upper measurement window has a blue highlight on the right hand side of the
window showing it has been selected.
Using the , , or keys you can change the selection of the
measurement window.
Using the key on numeric measurement results window you can
choose either two rectangular windows, a single enlarged window, or a full
screen display by pressing. The display style is applied to the currently
selected window or measurement line.
11 The upper window is configured to show a single numeric display.
12 The lower window is configured to show an analog meter which displays the
measurement result and the meter scaling.
13 With a P-Series or an E-Series E9320 power sensor connected, the symbol
shows the trigger state (Free Run), (Stopped), (Negative Slope), or
(Positive Slope).
14 The channel measurement frequency.
15 This displays the connected sensor, the offset value, and the acquisition mode
on the channel. On dual channel models it shows for both channels.
