2 General Power Meter Functions
66 Keysight N1911A/1912A User’s Guide
5 Press to display the Trace Ref Lvl 2 pop-up, and use the numeric
keypad to enter the intended value in the Trace Ref Lvl 2 pop-up window.

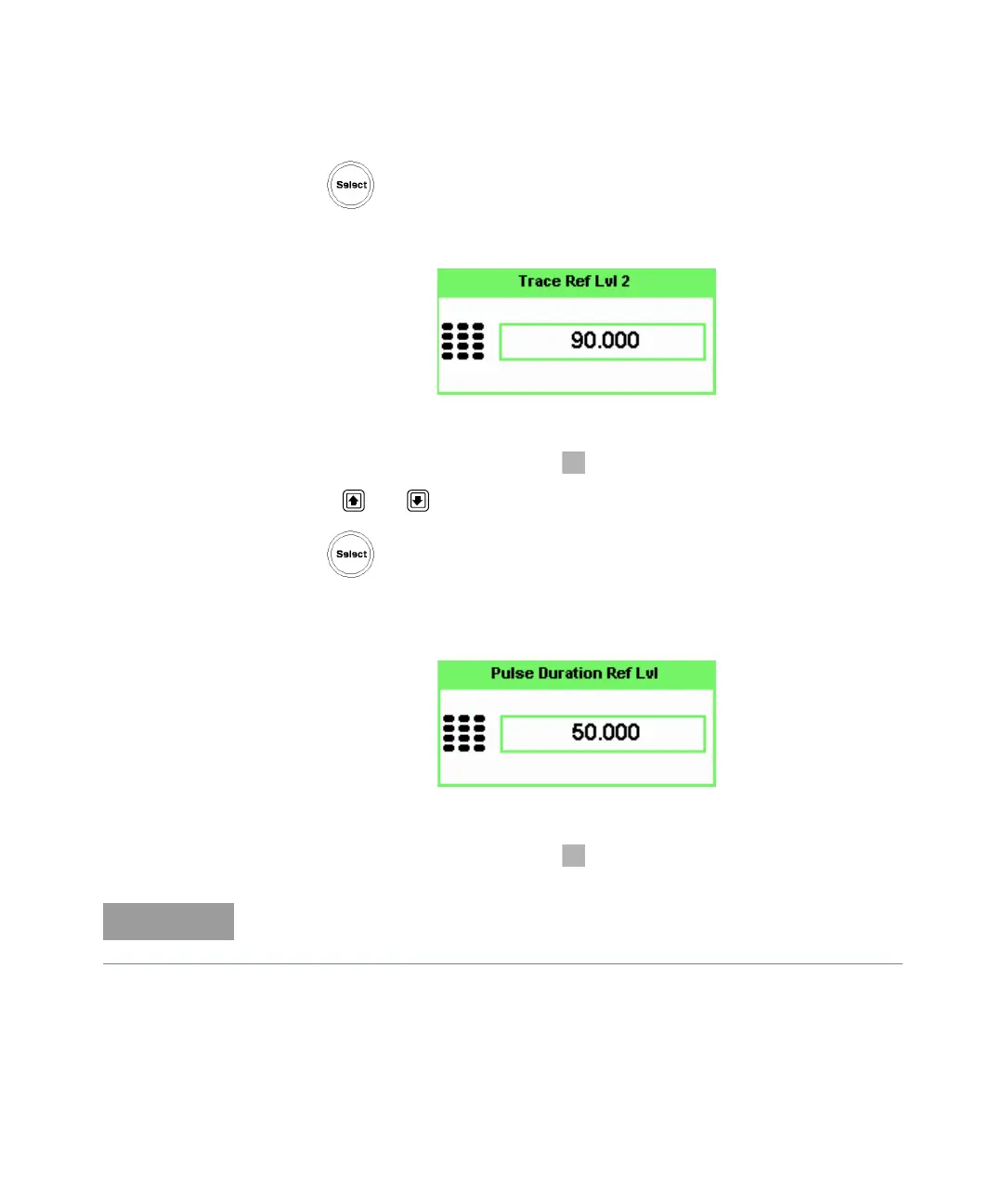

Figure 2-7 Trace Ref Lvl 2 pop-up
6 Complete the entry by pressing the softkey.
7 Use the and keys to highlight the Pulse Duration Ref Lvl field.
8 Press to display the Pulse Duration Ref Lvl pop-up, and use the
numeric keypad to enter the intended value in the Pulse Duration Ref Lvl
pop-up.
Figure 2-8 Pulse Duration Ref Lvl pop-up
9 Complete the entry by pressing the softkey.
By default, the Trace Ref Lvl 1, Trace Ref Lvl 2 and Pulse Duration Ref Lvl
settings are set to 10 %, 90 % and 50 % respectively.
