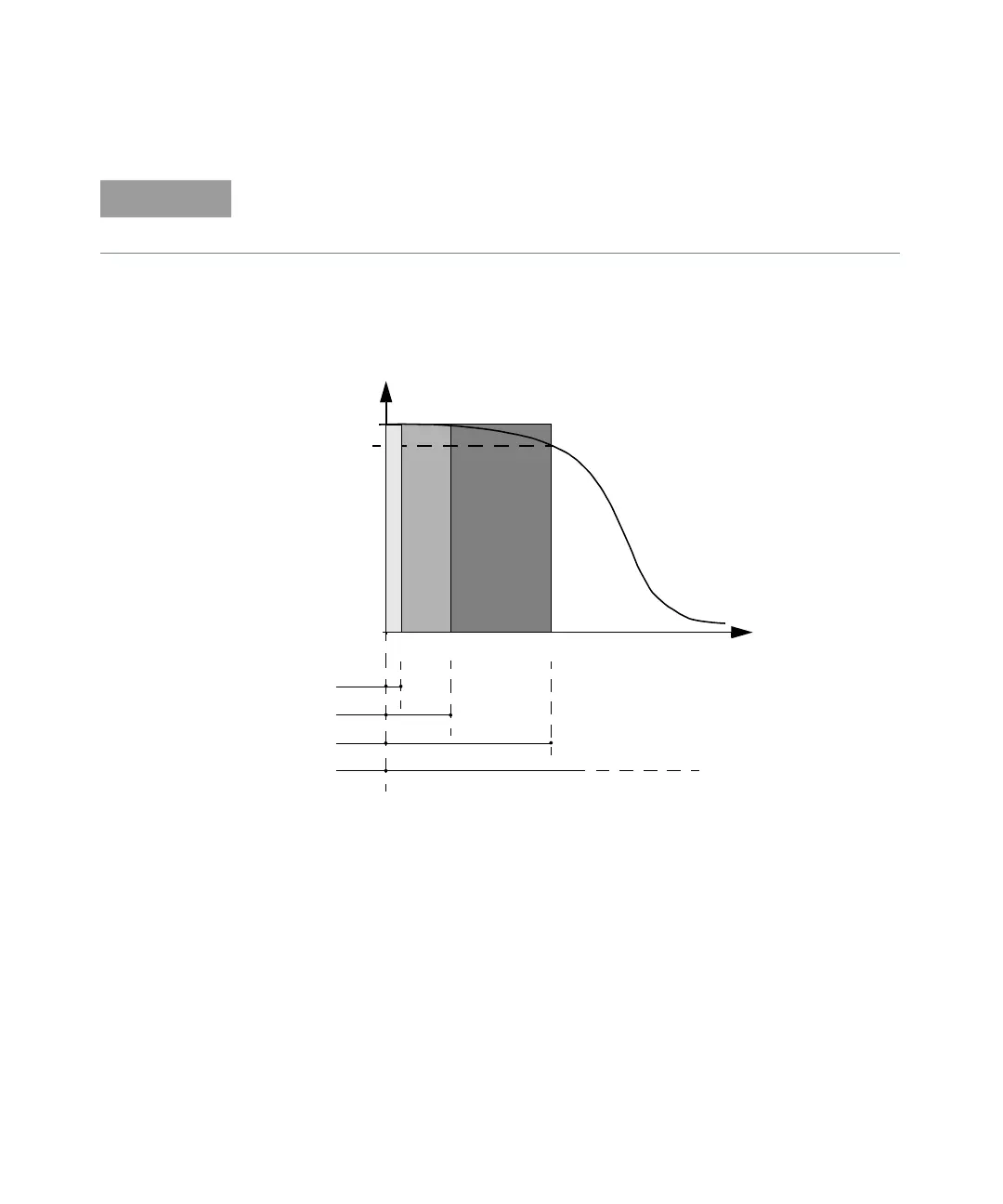

Figure 4-1 shows the filter shapes associated with the E9323A and E9327A power
sensors
Figure 4-1 Bandwidth Filter Shapes
Maximum dynamic range is related to the maximum sensor bandwidth. Please
refer to the documentation supplied with your E-Series E9320 power sensor for
specification information.
Amplitude
E9323A and E9327A sensors
Frequency
0
-3.5 dB
Approx
Meter B/W
setting
Low
Med
High
Off
300 kHz 1.5 MHz
5 MHz
