When you have completed the procedure you can return to this menu later to add
more accuracy to the measurement.
Step 3. Setting the trigger
To use the measurement gates the power meter must be triggered.
A trigger can be taken from a rising or falling measured power level or controlled
externally using the Ext Trig input.
Press . The Trigger menu is displayed.
The trigger status is displayed below the label in the Trigger menu. Press
the softkey and select to configure continuous triggering.
When you have completed the procedure you may return to the Trigger menu
later to add more accuracy to the remaining trigger parameters, to help you
achieve a stable and reliable trigger.
Step 4. Setting the display to trace
Using trace display provides a visual representation of the signal of interest.
Press , , to display the Trace window.

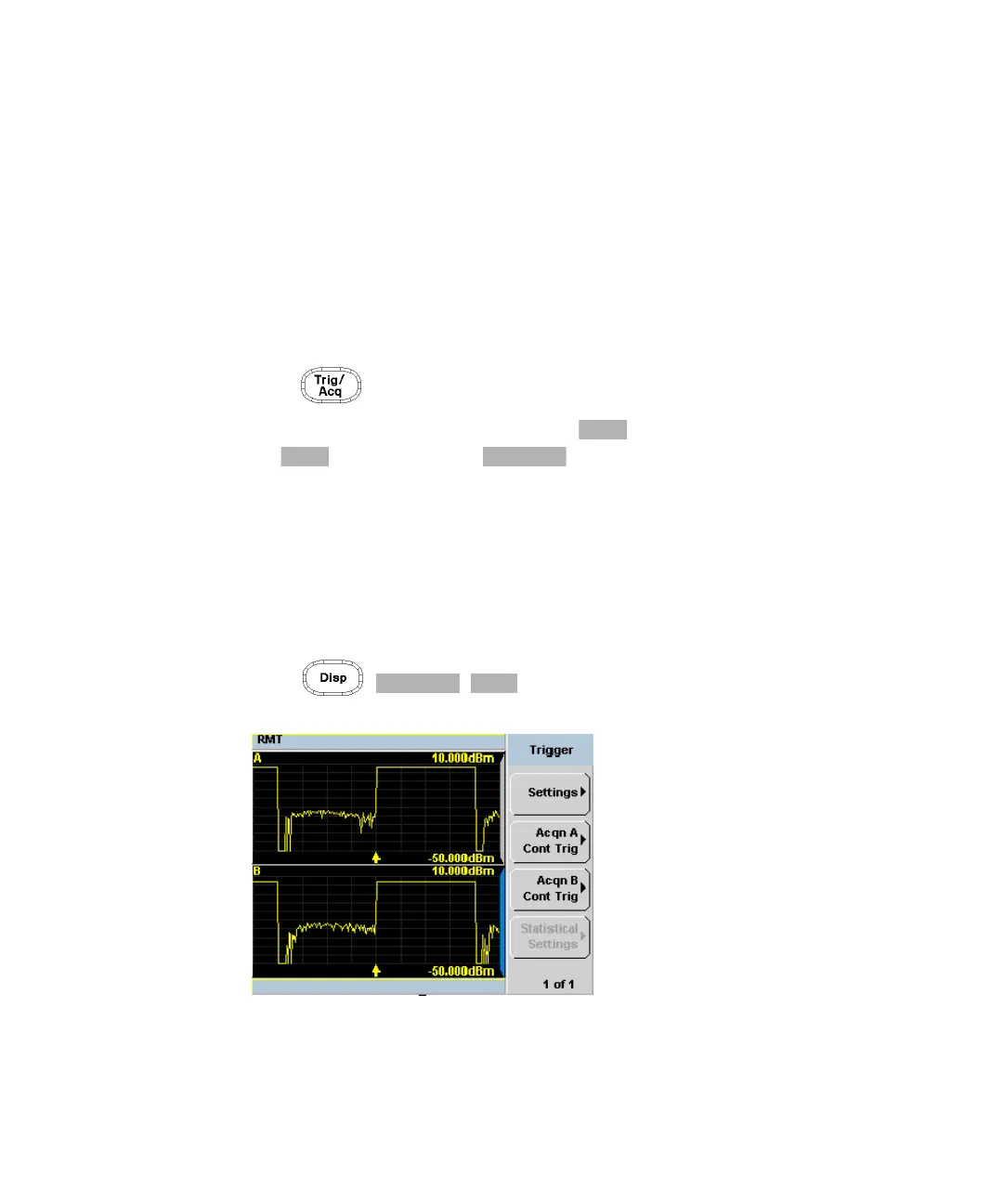

Figure 3-2 Trace display in dual channel power meter
