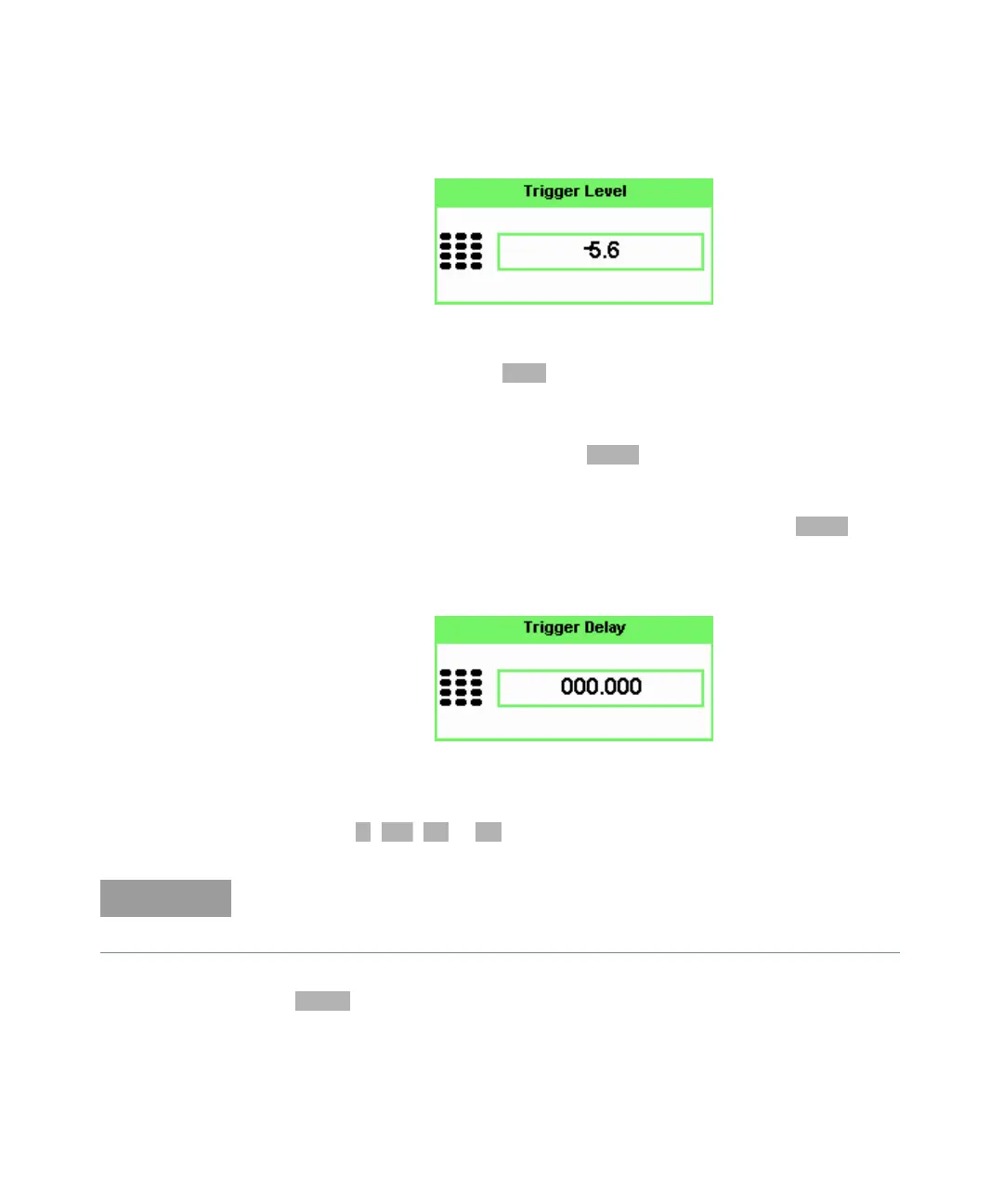

Figure 2-38 Trigger Level pop-up
Complete the entry by pressing .
Delay
The current setting is displayed below the label. The delay time is applied
between the trigger event and all the gate start times. This allows you to
time-shift all the gates by the same amount with one setting change. A delay of
up to 1 second can be entered. To enter or change the setting press and
use the numeric keypad to enter the required value in the Trigger Delay pop-up
window to enter the new value.
Figure 2-39 Trigger Delay pop-up
Complete the entry by pressing the required second, millisecond, microsecond or
nanosecond ( , , or ) softkey.
Press to display the second menu page.
The trigger delay time can also be entered or changed in the Trace Display mode
when the Gate Control menu is displayed. See “Setting the Trace Display” on
page 152 for further detail.
To Next Page
