3 Using P-Series Power Sensor
158 Keysight N1911A/1912A User’s Guide

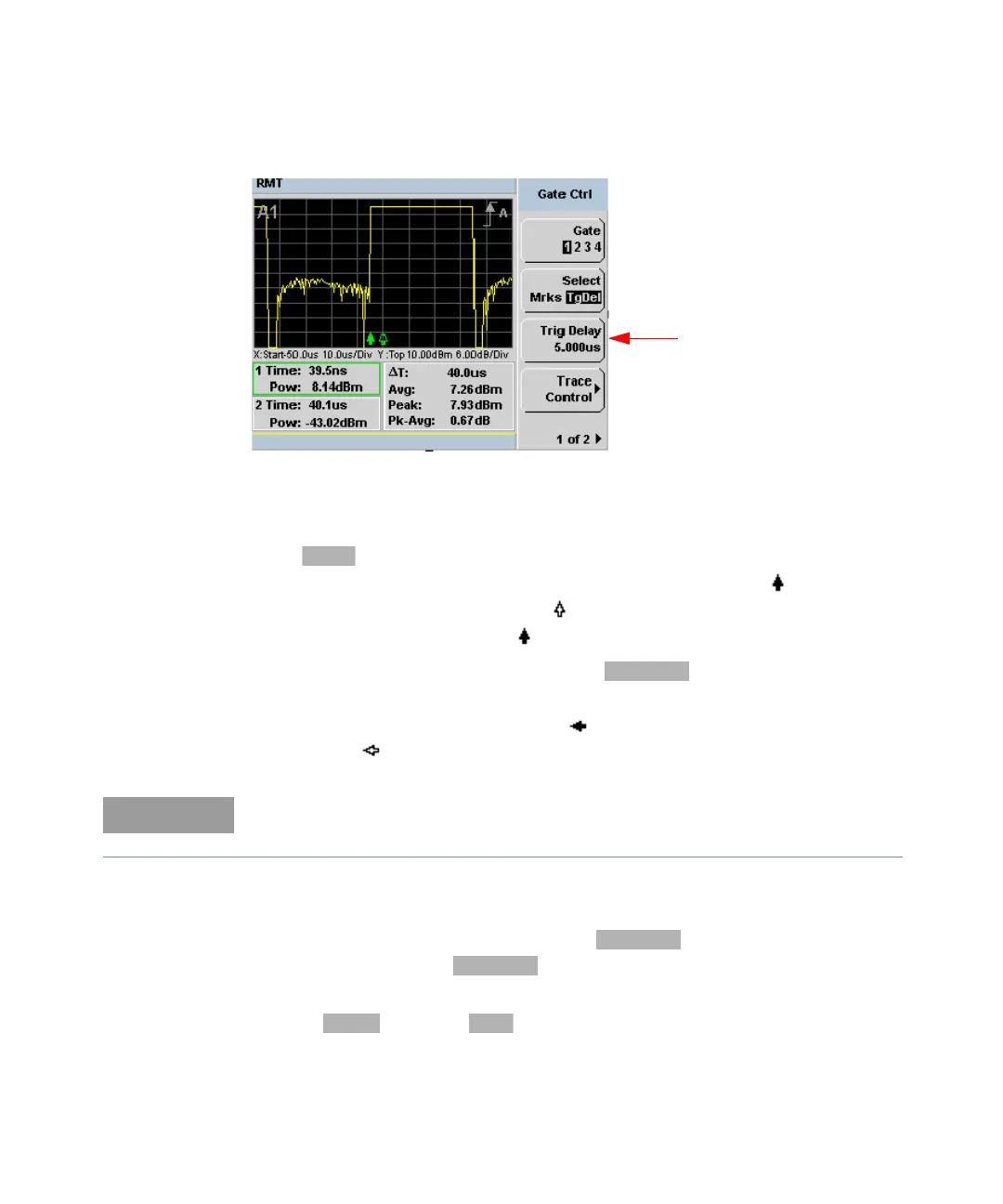

Figure 3-5 Trace display with trigger delay menu
TgDel
When is selected you can adjust the trigger delay. The display changes to
remove the gate markers and displays the trigger marker(s). The indicates
when the trigger event occurs, whilst shows the delayed trigger point. When
the two points coincide, only the trigger is shown.
The configured value is displayed below the softkey. This value is
shown in Figure 3-5.
To indicate an off-screen trigger event, is displayed. To indicate an off-screen
trigger point, is displayed.
Trig Delay
The trigger delay value is shown below the softkey. You configure the
trigger delay by pressing and entering a numeric value in the pop-up
window.
Pressing highlights to display the trace markers again.
Your chosen trigger point is used as the reference point for the timing of all the
measurement gates.
